Montero Sport

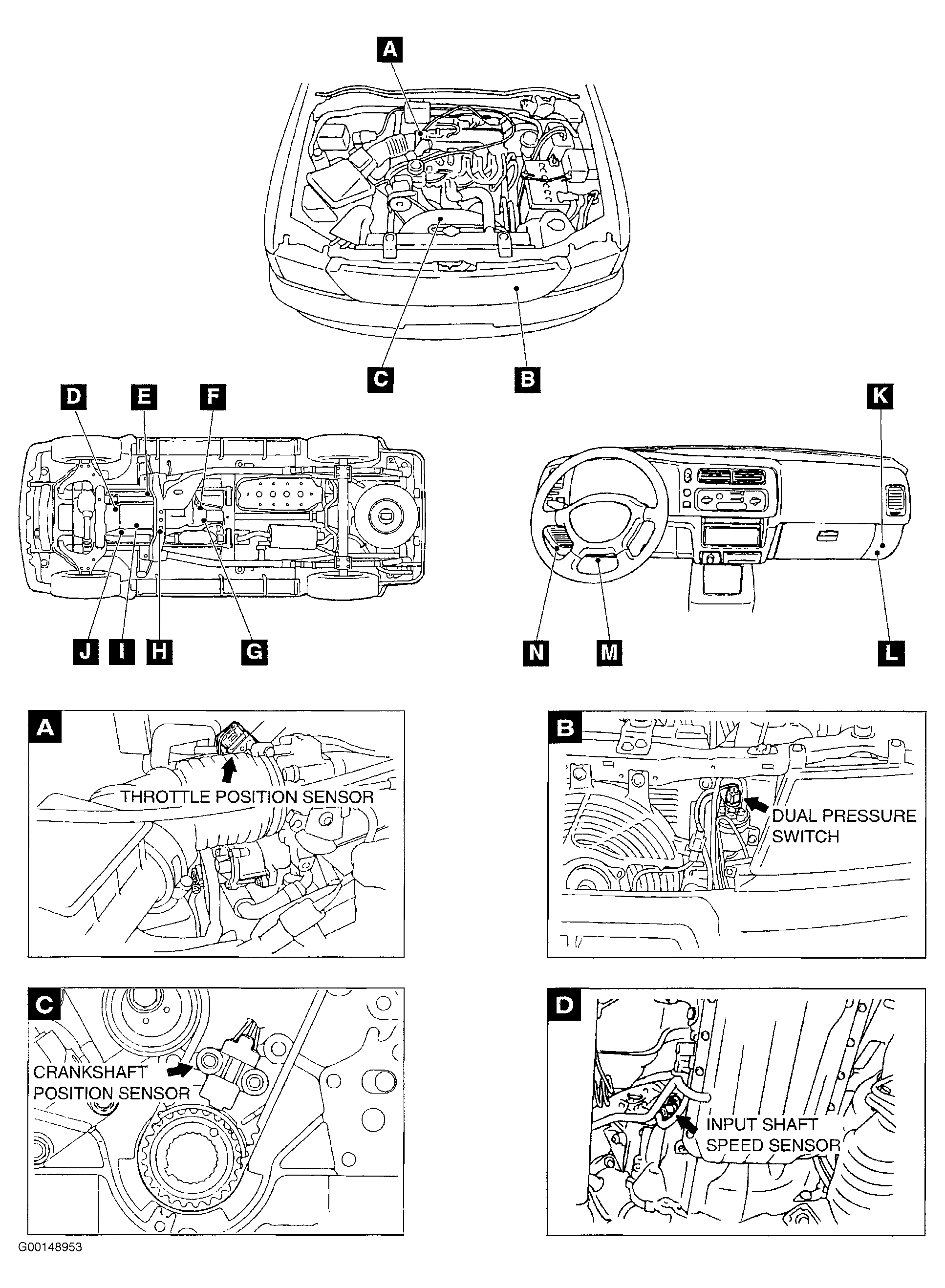

Fig 1: Transmission Electronic System Component Locations (1 Of 2)
G00148953Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

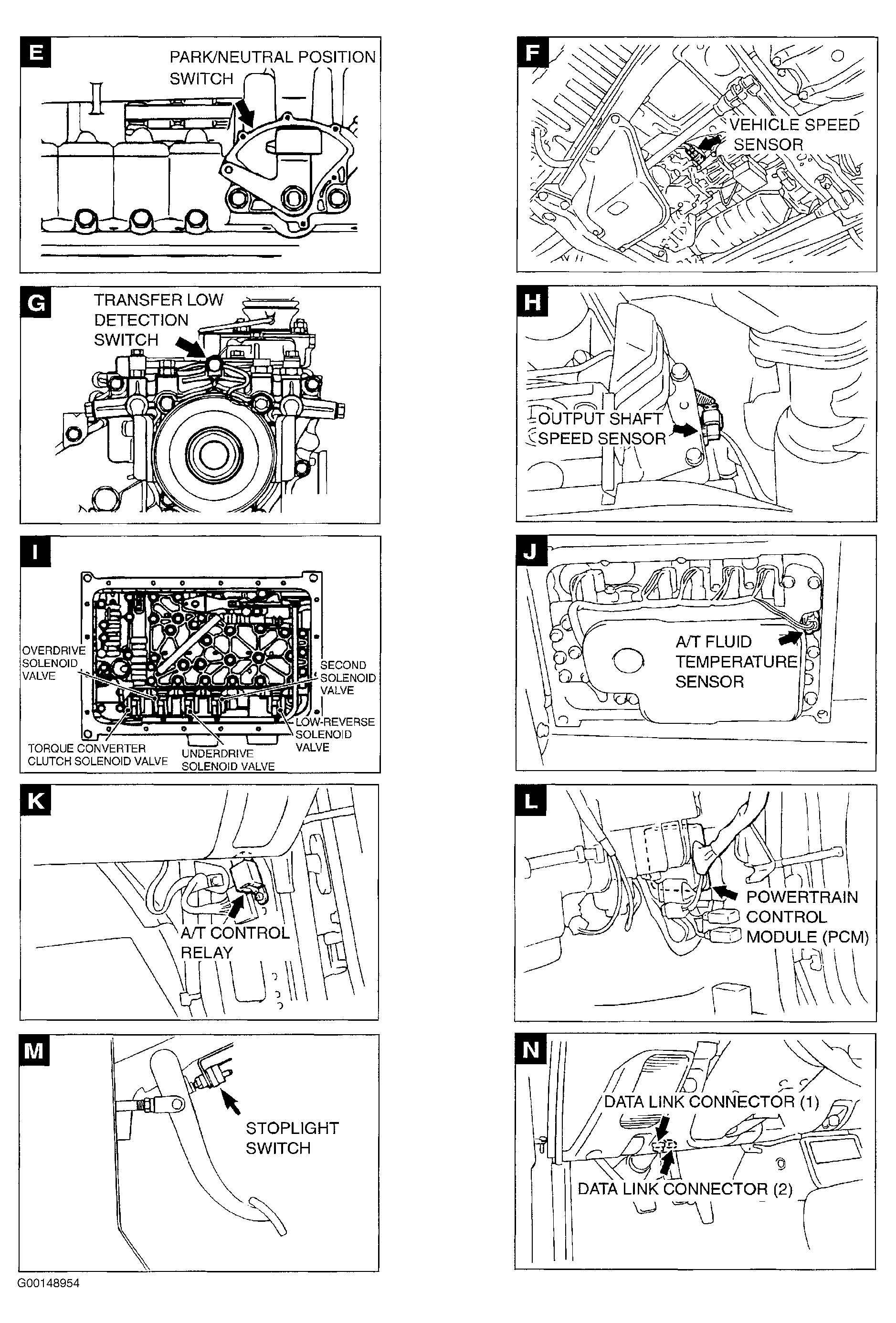

Fig 2: Transmission Electronic System Component Locations (2 Of 2)
G00148954Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
