Mitsubishi
>>
2002
>>
Montero XLS
>>
Repair and Diagnosis
>>
Brakes
>>
Mechanical - Hydraulic
>>
Hydraulic Brake Booster
>>
Pin Voltage Tests
Pin Voltage Tests
NOTE:
For pin voltage charts, see
Figure
,
Figure
and
Fig 1
.

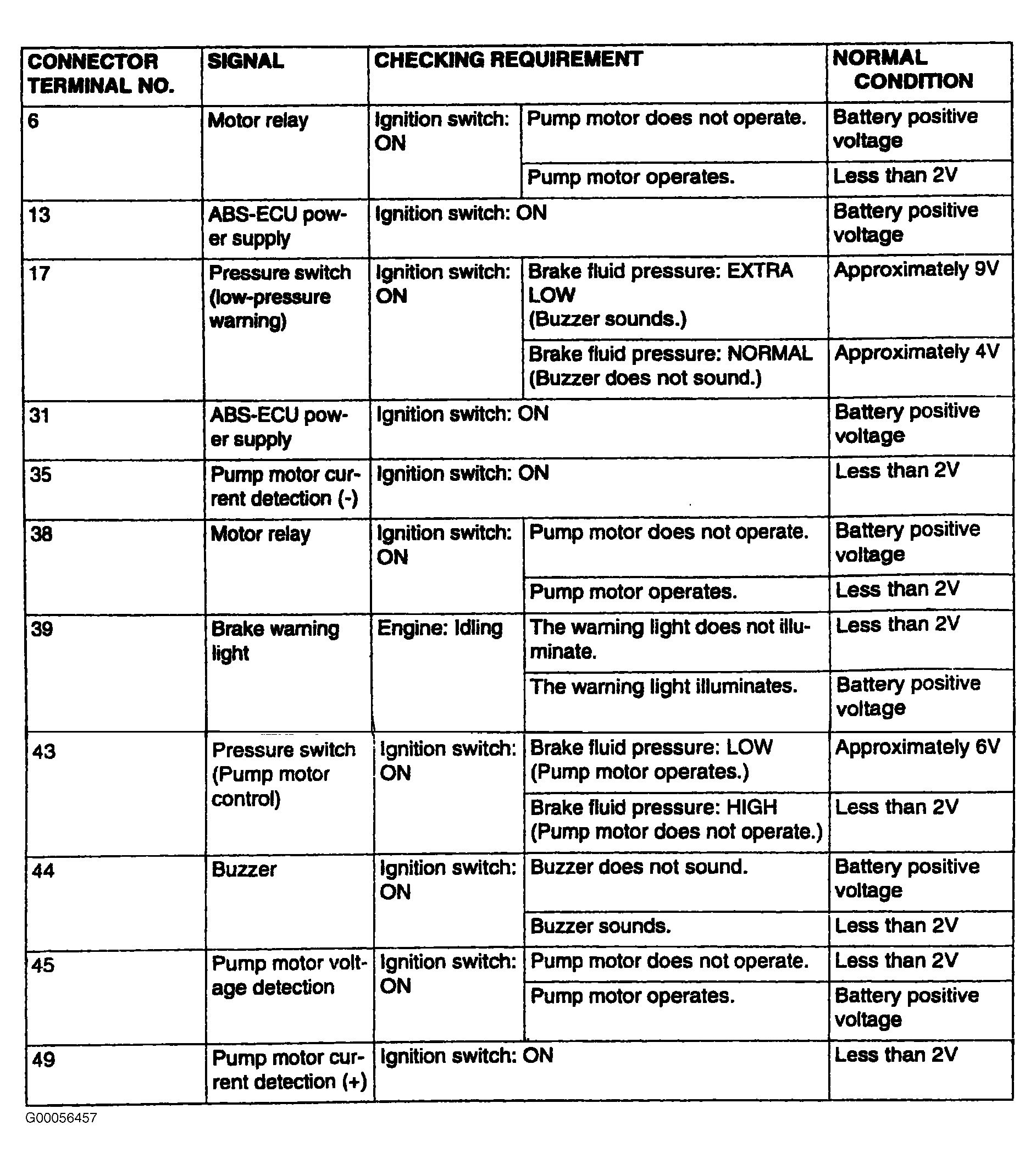

Fig 1: Pin Voltage Chart (Hydraulic Brake Booster/ABS-ECU)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
