Removal (Eclipse, Galant, Mirage & Montero Sport - RWD)

1. Raise and support vehicle. Remove wheels. Remove brake drum from hub. If drum is difficult to remove, back-off shoe adjuster and remove drum. Remove shoe return springs and shoe hold-down springs. See Fig 1, Fig 2Fig 3 or Fig 4 .
2. Disconnect parking brake cable from lever. Remove brake shoes and adjuster assembly. Remove parking brake lever snap ring, and disengage lever from brake shoe.

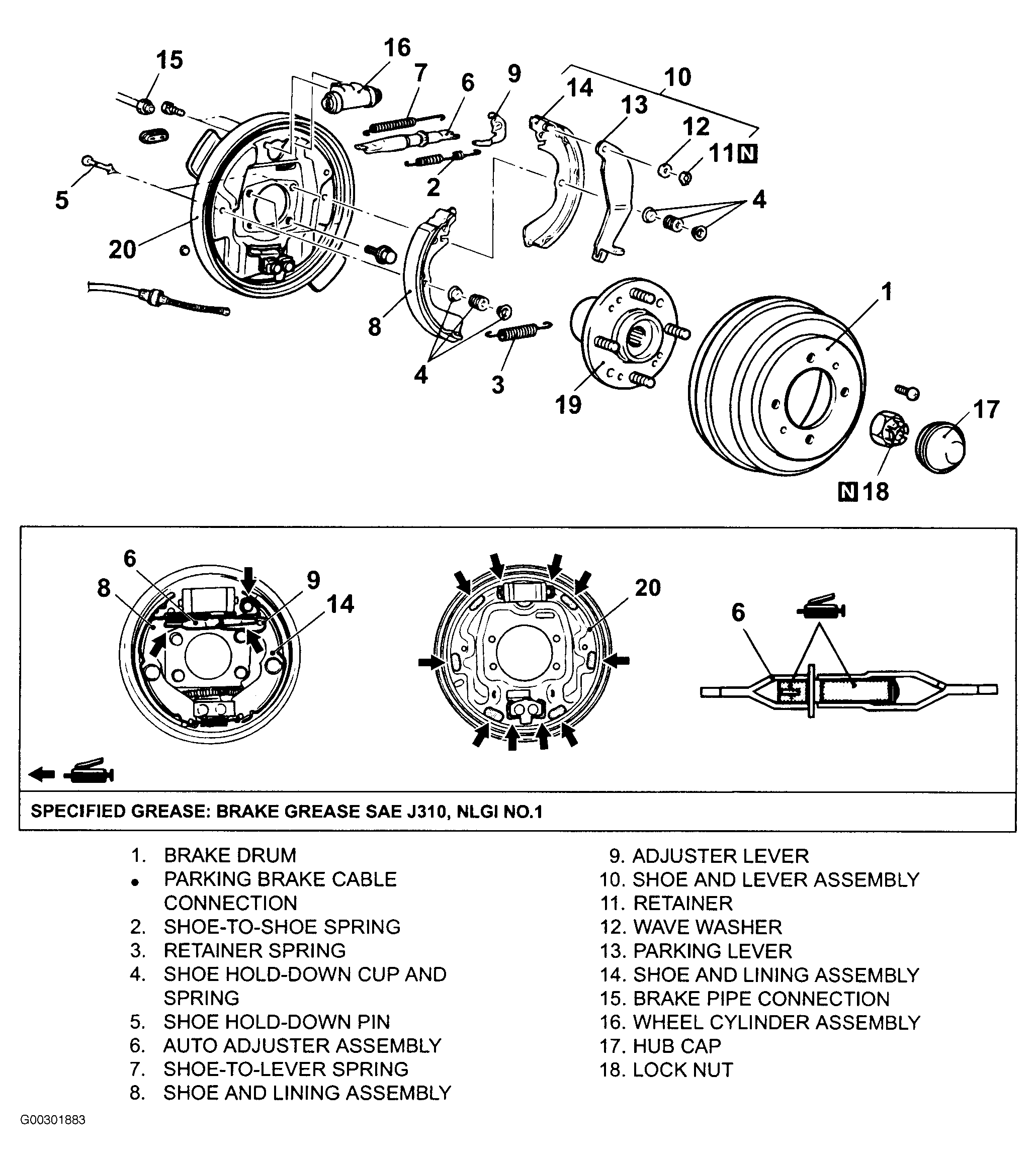

Fig 1: Exploded View Of Rear Drum Brake Assembly (Eclipse & Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

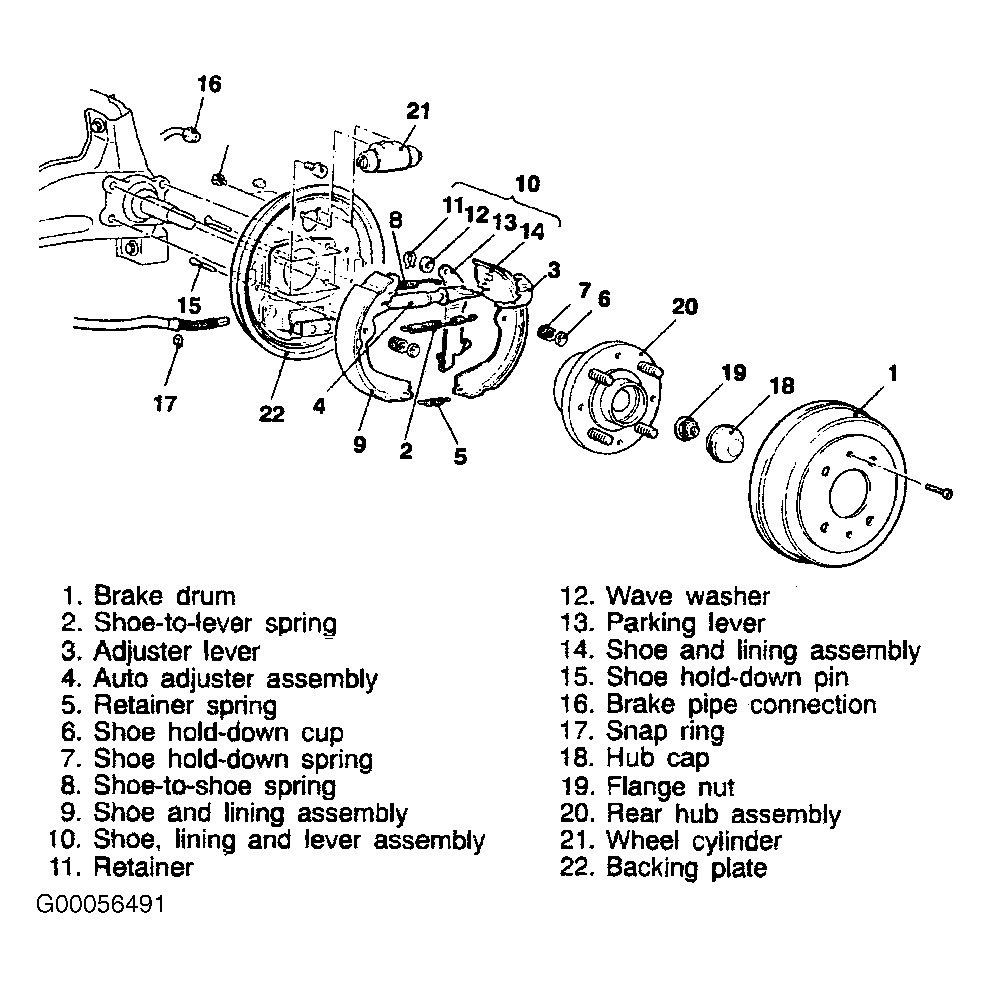

Fig 2: Exploded View Of Rear Drum Brake Assembly (Lancer)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

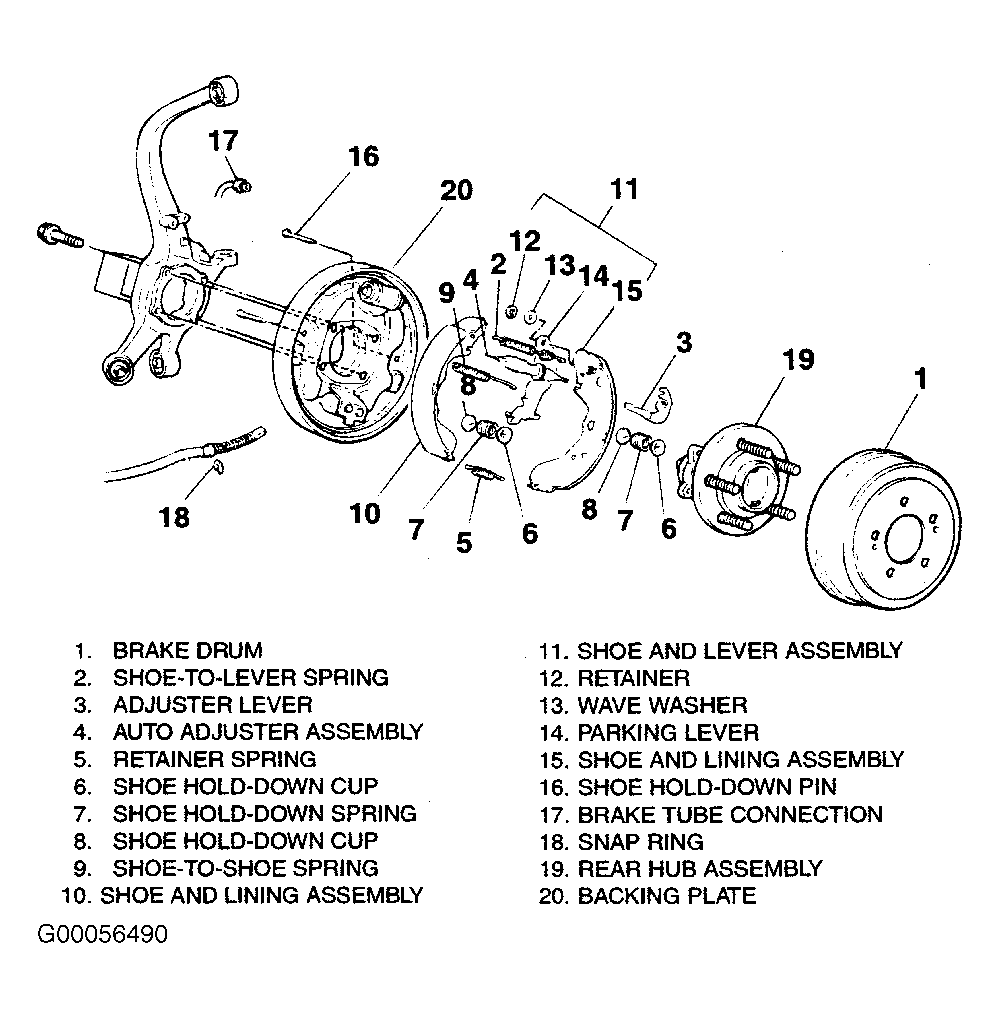

Fig 3: Exploded View Of Rear Drum Brake Assembly (Mirage)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Exploded View Of Rear Drum Brake Assembly (Montero Sport)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
