Circuit Diagram & Connector Identification

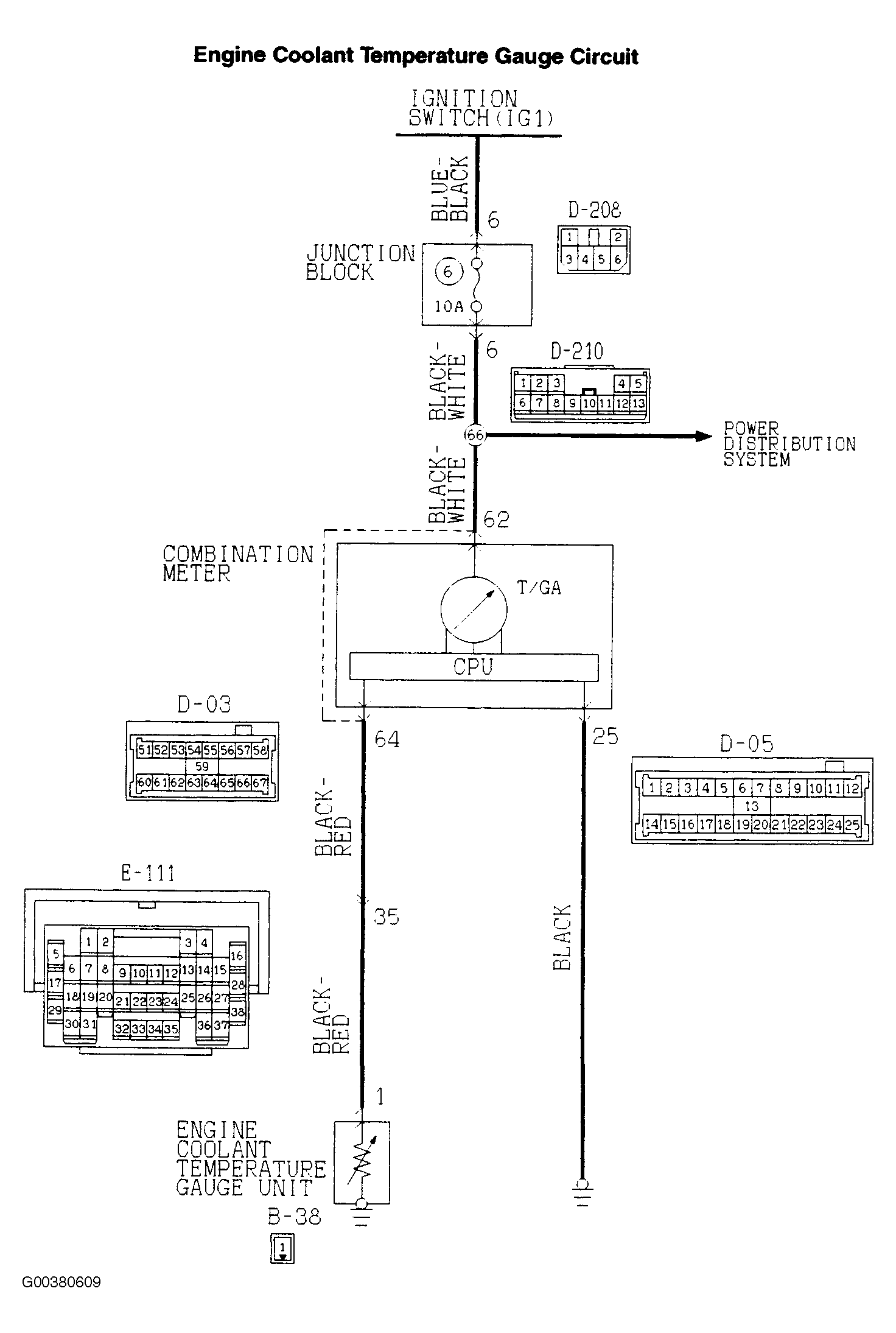

Fig 1: Engine Coolant Temperature Gauge Circuit Diagram
G00380609Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

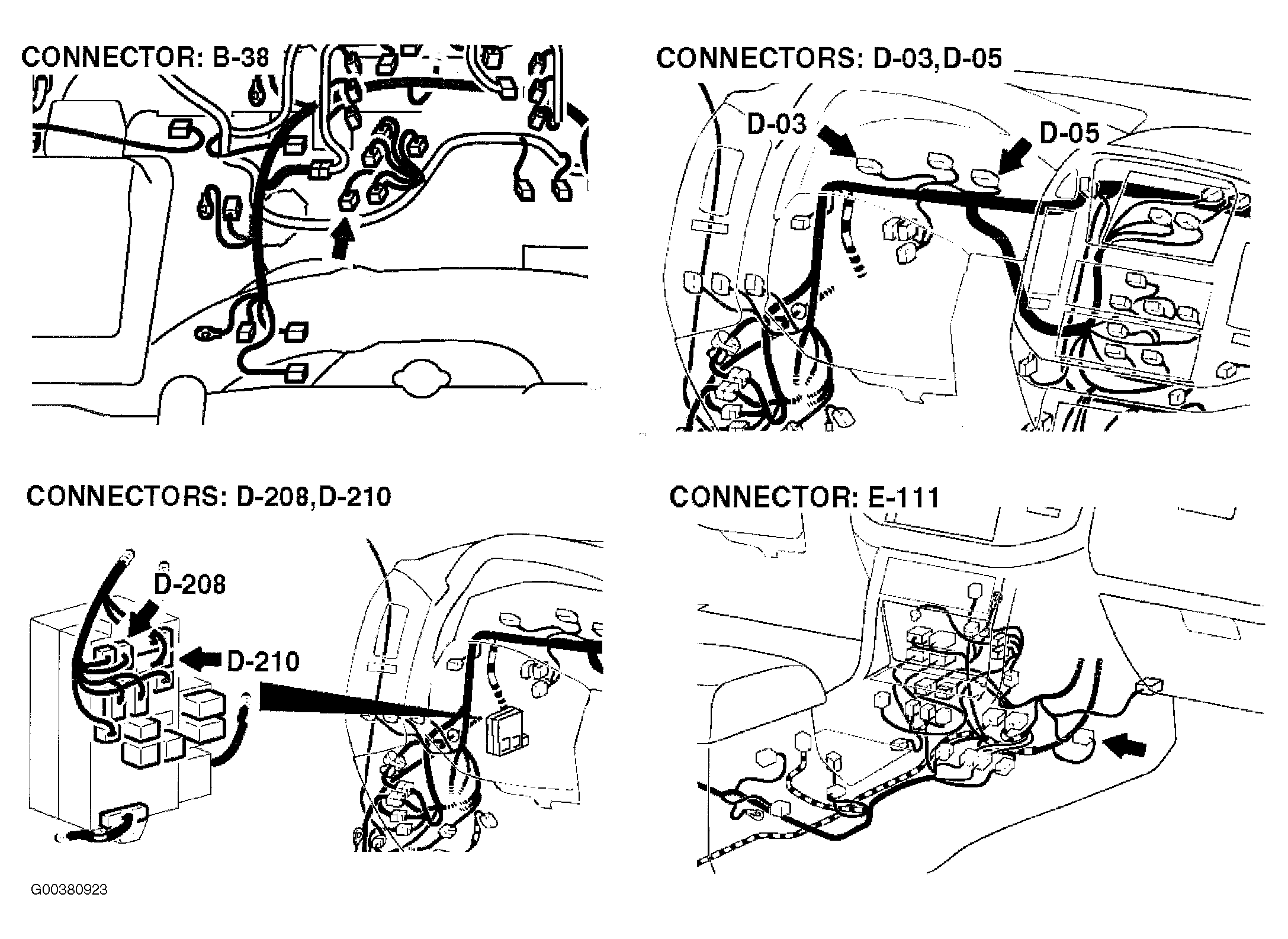

Fig 2: Engine Coolant Temperature Gauge Connector Identification & Harness Routing
G00380923Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
