Circuit Diagram

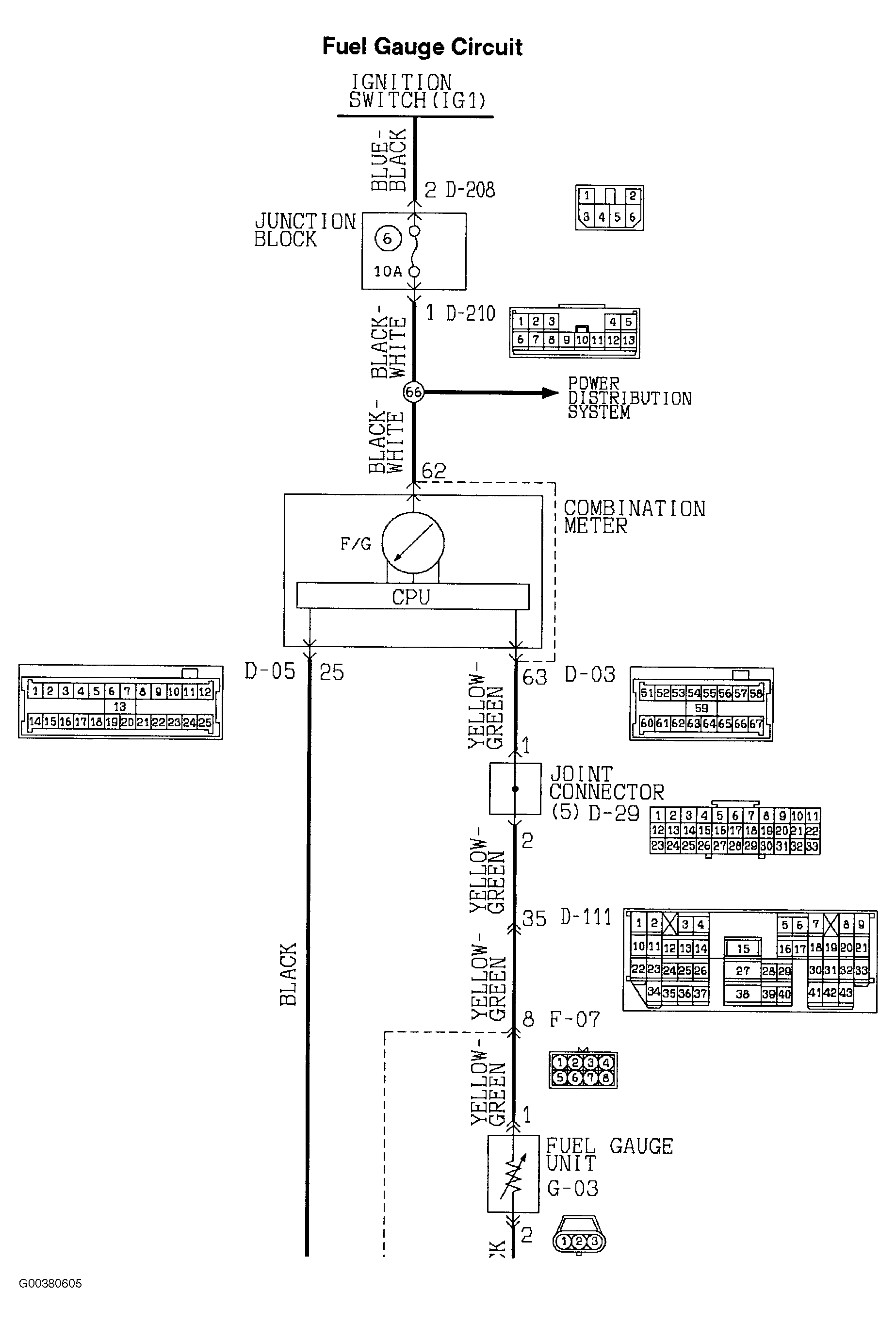

Fig 1: Fuel Gauge Circuit Diagram
G00380605Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

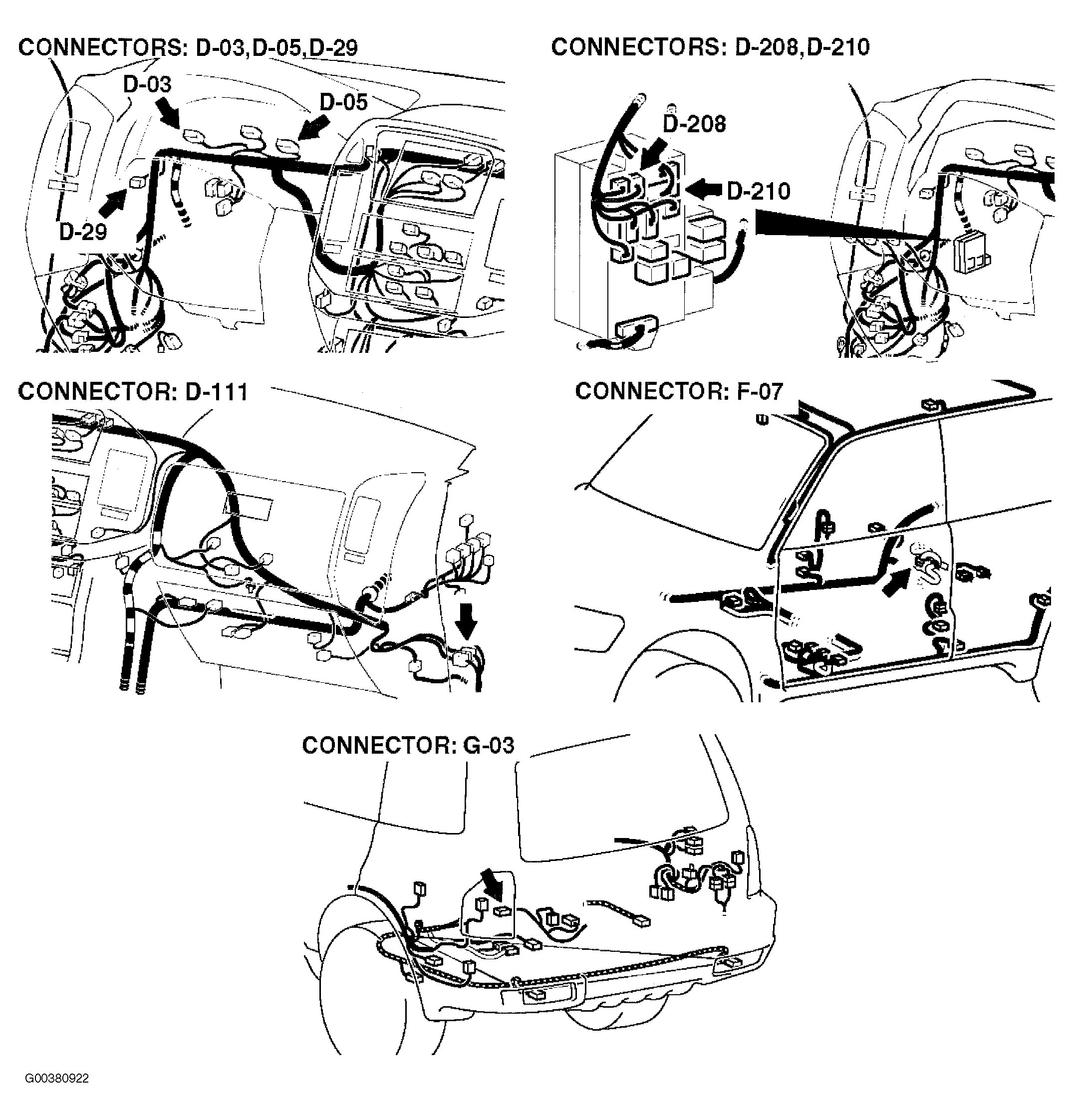

Fig 2: Fuel Gauge Connector Identification & Harness Routing
G00380922Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
