Step 6: Check The Ignition Signal Input Circuit At The Combination Meter Connector D-03

1. Disconnect the combination meter connector D-03.
2. Start the engine and run at idle.
3. Measure the voltage between terminal No. 62 and ground by back probing. See Fig 1 .

Q: Is the voltage approximately 10 volts?

• YES

  Repair or repair the combination meter (printed-circuit board or speedometer and tachometer).
• NO

  Go to step 7  .

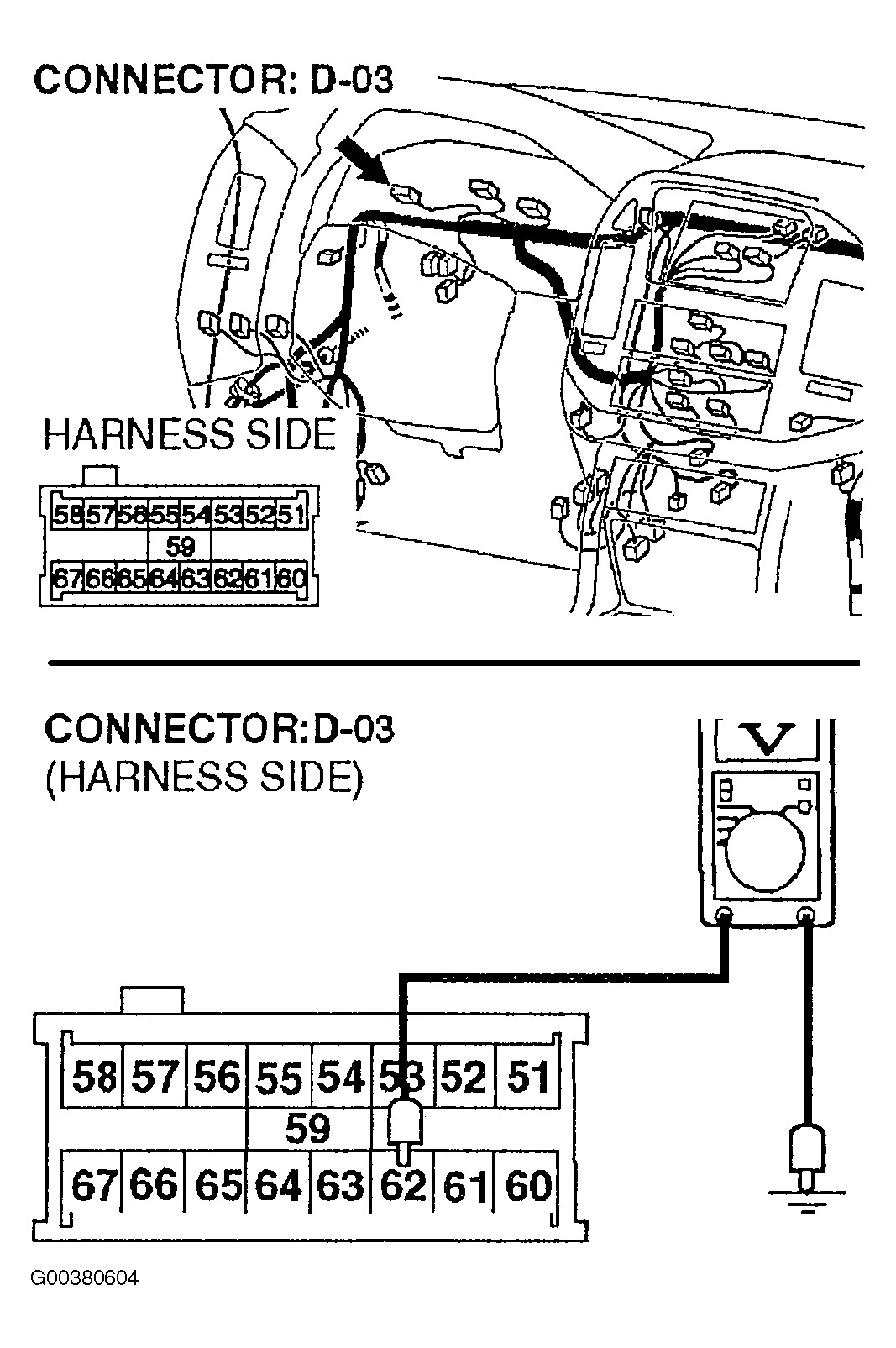

Fig 1: Measuring Resistance Between Connector D-03 Terminal No. 62 & Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
