Step 7: Check The Combination Meter (Speedometer) Ground Circuit At The Combination Meter Connector D-05

1. Disconnect the combination meter connector D-05.
2. Measure the resistance between terminal No. 25 and ground. See Fig 1 .

Is the resistance value less than 2 ohm?

• YES

  Repair or repair the combination meter (printed-circuit board or speedometer and tachometer). The speedometer should work normally.
• NO

  Go to step 8  .

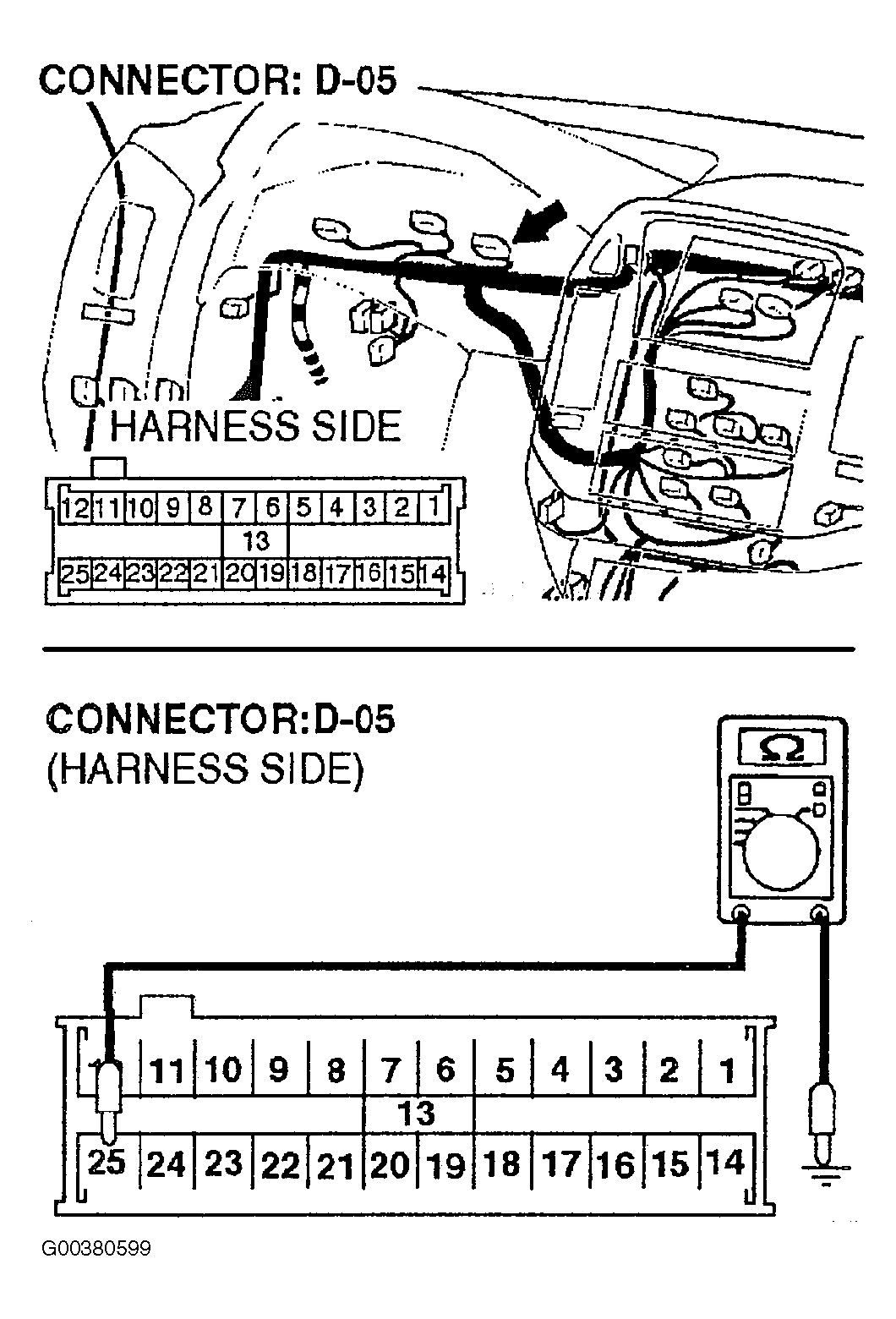

Fig 1: Measuring Resistance Between Connector D-05 Terminal No. 25 & Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
