Step 4: Check The Combination Meter Power Supply Circuit At The Combination Meter Connector D-03

1. Disconnect the combination meter connector D-03.
2. Turn the ignition switch to "ON" position.
3. Measure the voltage between terminal No. 62 and ground. See Fig 1 .

Is the voltage 12 volts (battery positive voltage) between terminal No. 62 and ground?

• YES

  Go to step 7  .
• NO

  Go to step 5  .

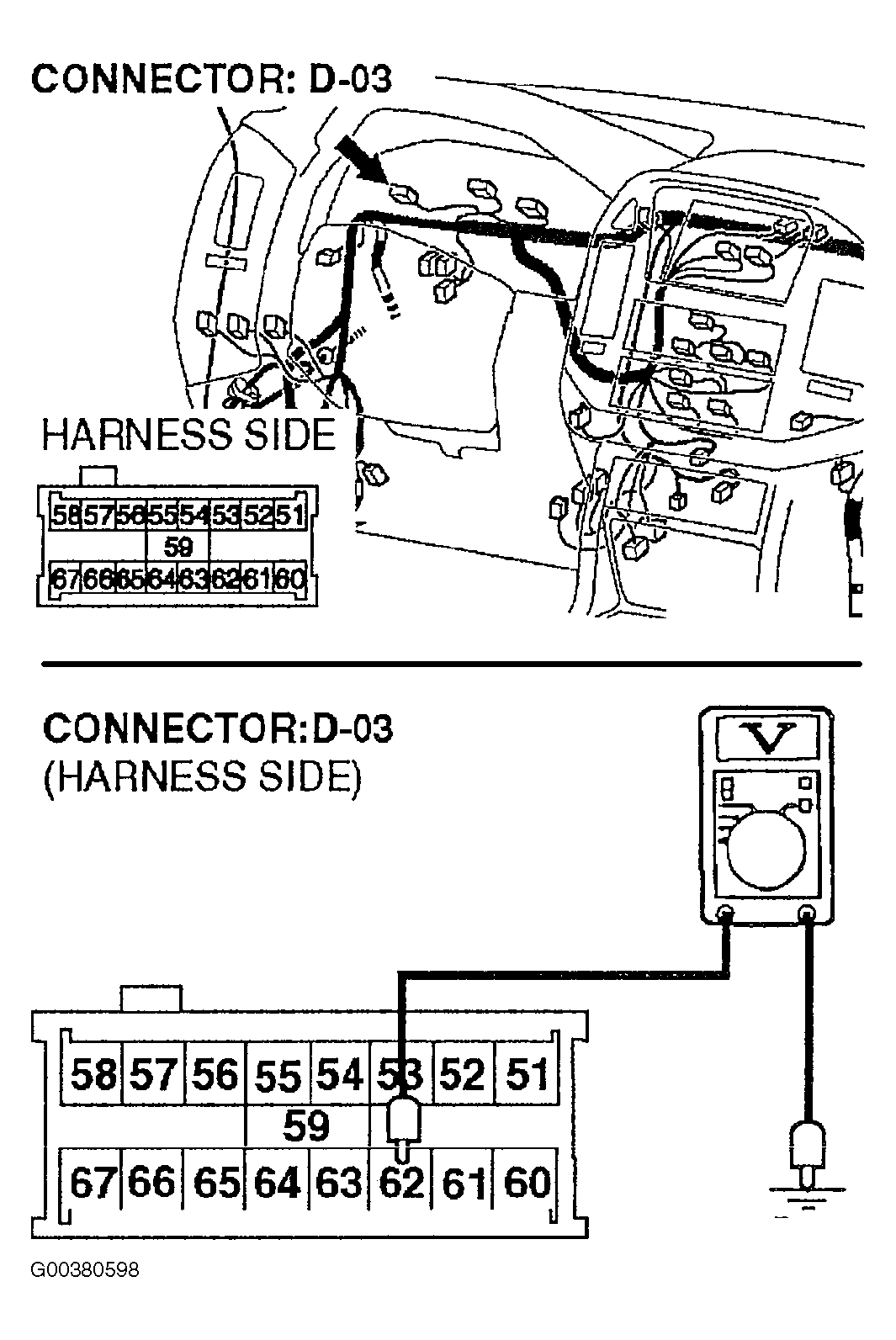

Fig 1: Measuring Voltage Between Connector D-03 Terminal No. 62 & Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
