Circuit Diagram & Connector Identification

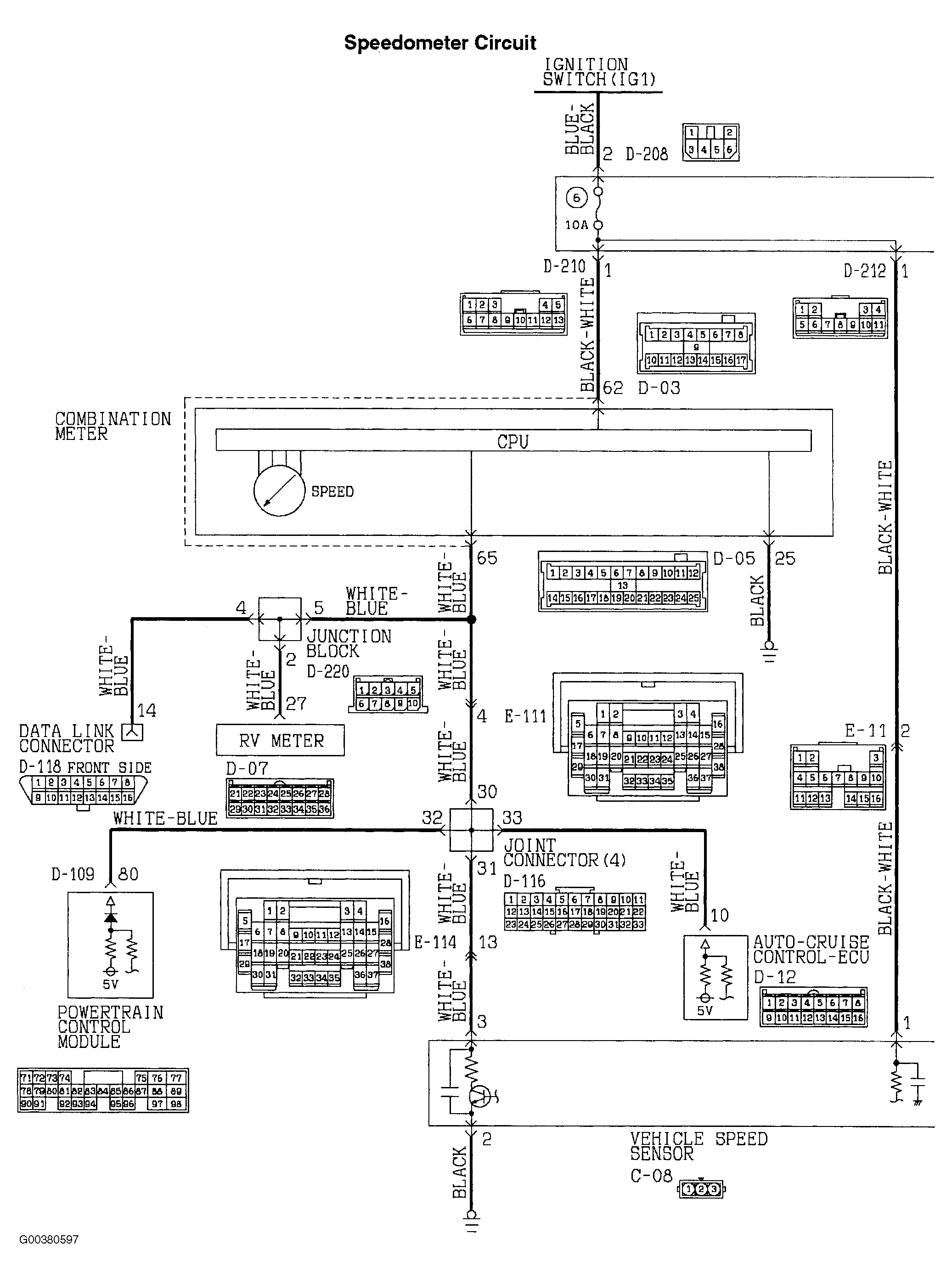

Fig 1: Speedometer Circuit Diagram
G00380597Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

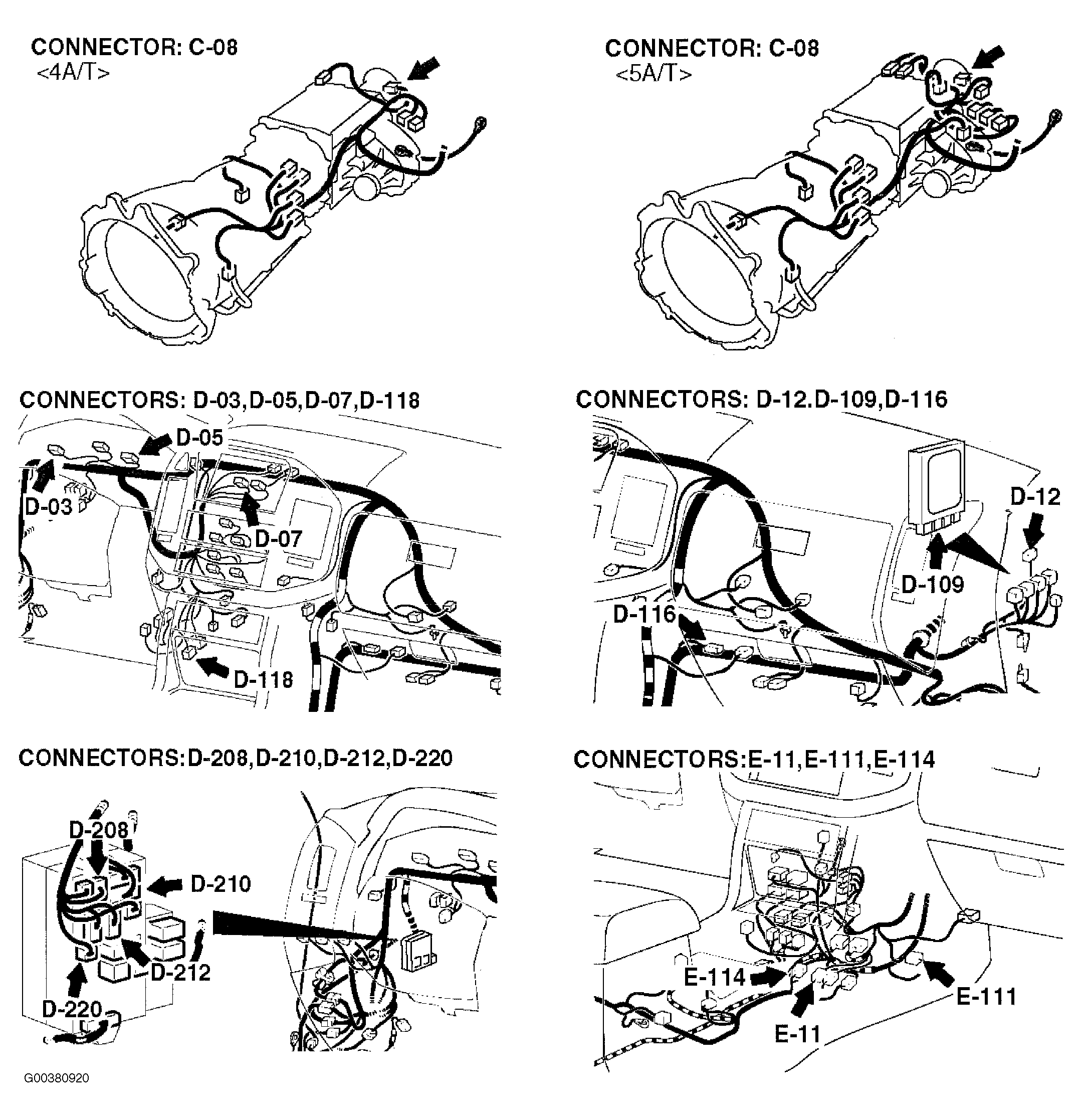

Fig 2: Speedometer Connector Identification & Harness Routing
G00380920Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
