A) Fuel High-Pressure Hose Removal
CAUTION:
As there will be some pressure remaining in the fuel pipe line, cover it with a shop towel to prevent fuel from spraying out.

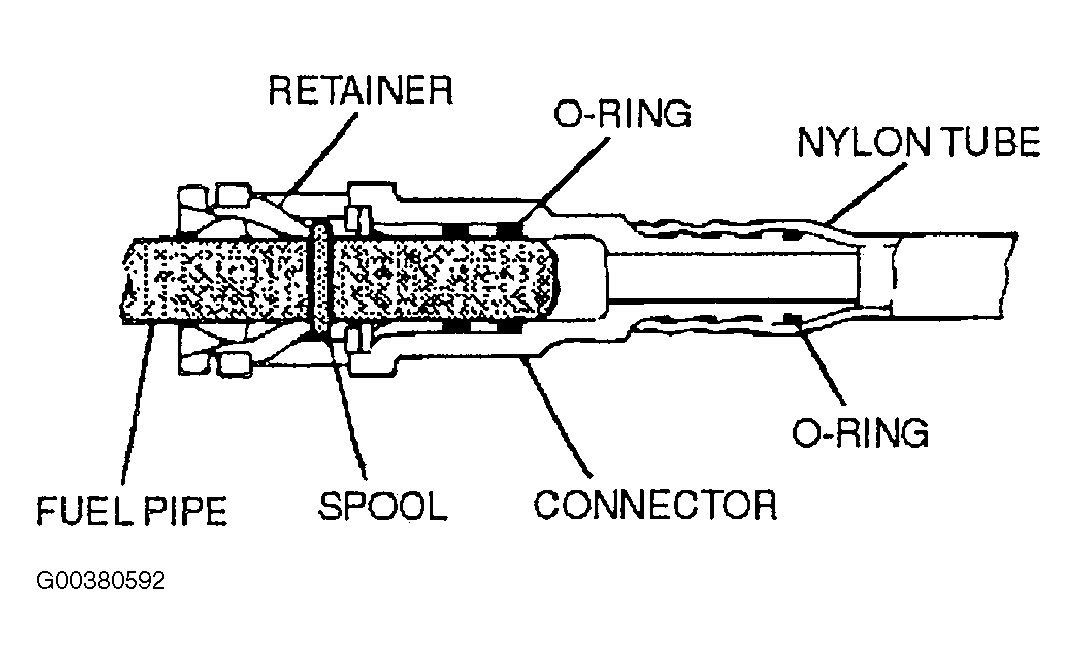

Press the high-pressure fuel hose retainer to disengage the connector, and then remove the high-pressure fuel hose. See Fig 1 .
