Tachometer Check

    NOTE: For tachometer check, use an external high quality inductive tachometer.
  1. Attach an external high quality tachometer to the engine speed detection connector on the harness side (such as with a paper clip).
  2. Compare the readings of the vehicle tachometer and the external tachometer at every engine speed, and check if the variations are within the standard values. See Fig 1 .

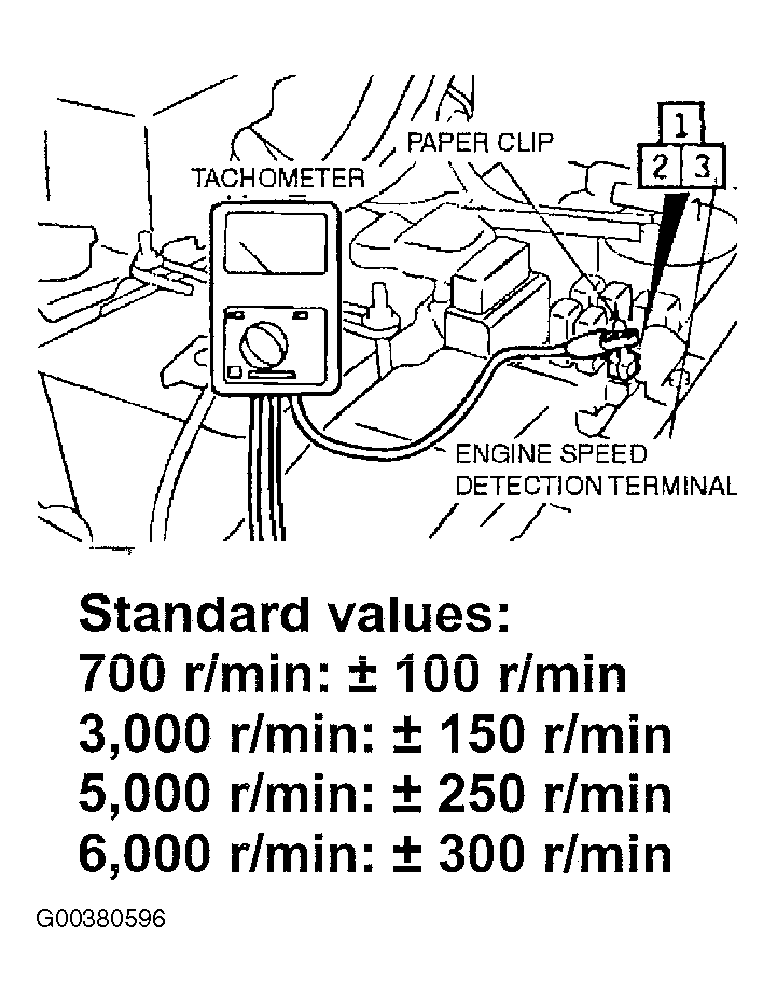

Fig 1: Attaching External Tachometer & Identifying Tachometer Standard Values
G00380596Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
