Combination Meter Internal Resistance Check
Measure the resistance between terminal using an ohmmeter. See
Fig 1
.

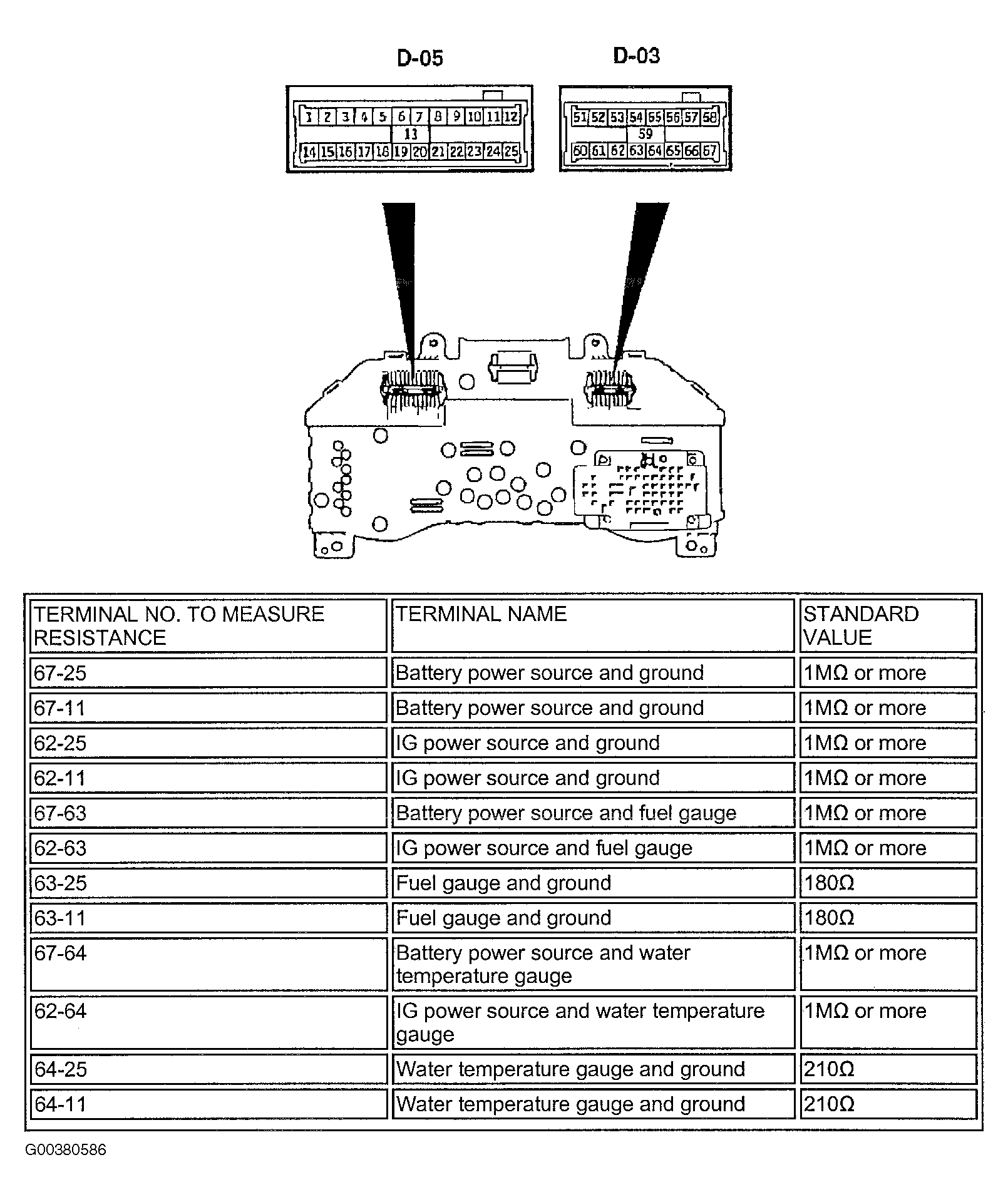

Fig 1: Checking Combination Meter Internal Resistance
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
