How To Connect Scan Tool (Mut-III)
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
- Ensure that the ignition switch is at the "LOCK" (OFF) position.
- Start up the personal computer.

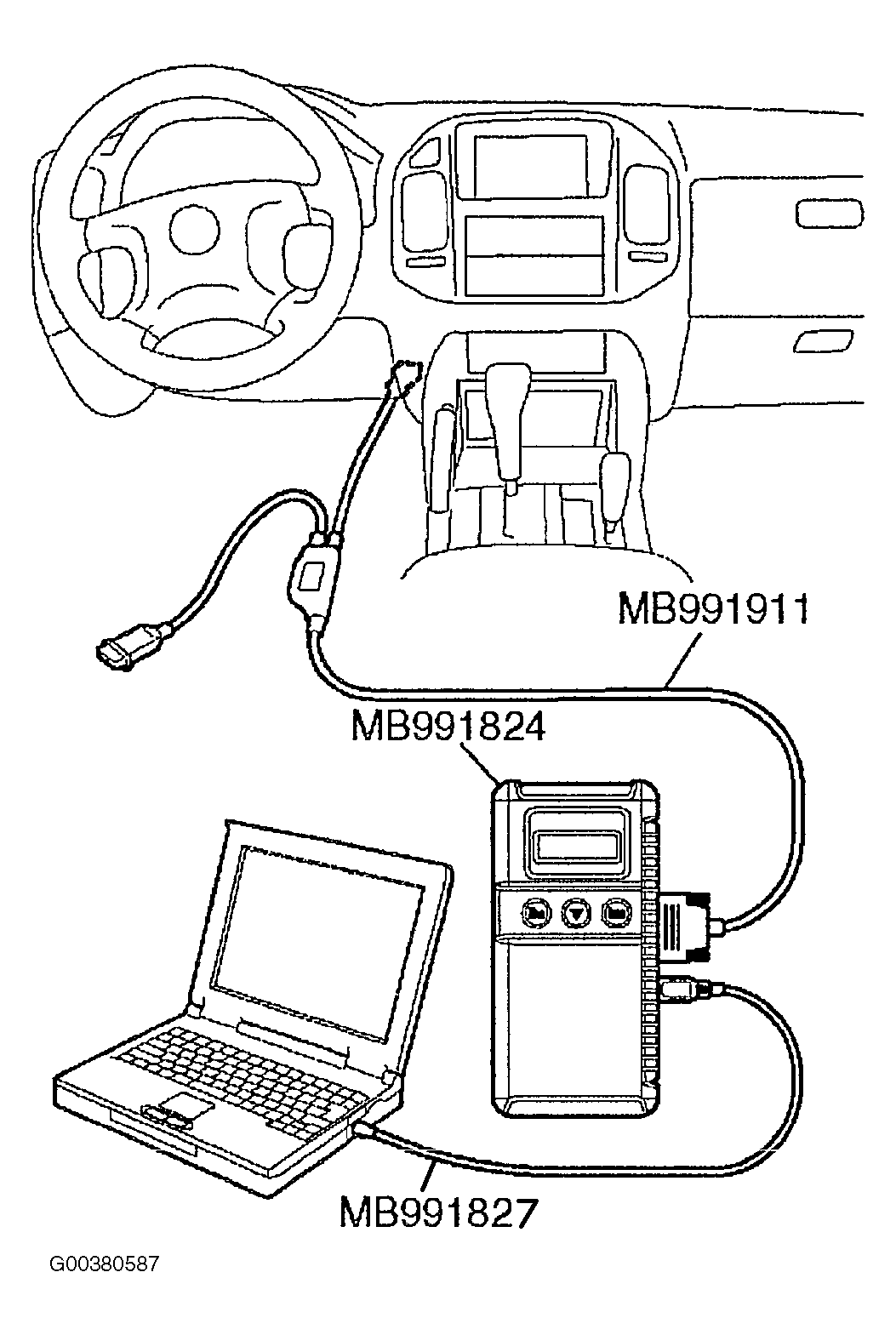

- Connect special tool MB991827 to special tool MB991824 and the personal computer. See Fig 1 .
- Connect special tool MB991911 to special tool MB991824.
- Connect special tool MB991911 to the data link connector.
- Turn the power switch of special tool MB991824 to the "ON" position.
- Start the MUT-III system on the personal computer.
NOTE:
When special tool MB991824 is energized, special tool MB991824 indicator light will be illuminated in a Green color.
NOTE:
Disconnecting scan tool MB991958 is the reverse of the connecting sequence, making sure that the ignition switch is at the "LOCK" (OFF) position.
