Diagnosis - R4A51, V4A51 & V5A51
>>
Component Locations
>>
Montero
Component Locations: Montero

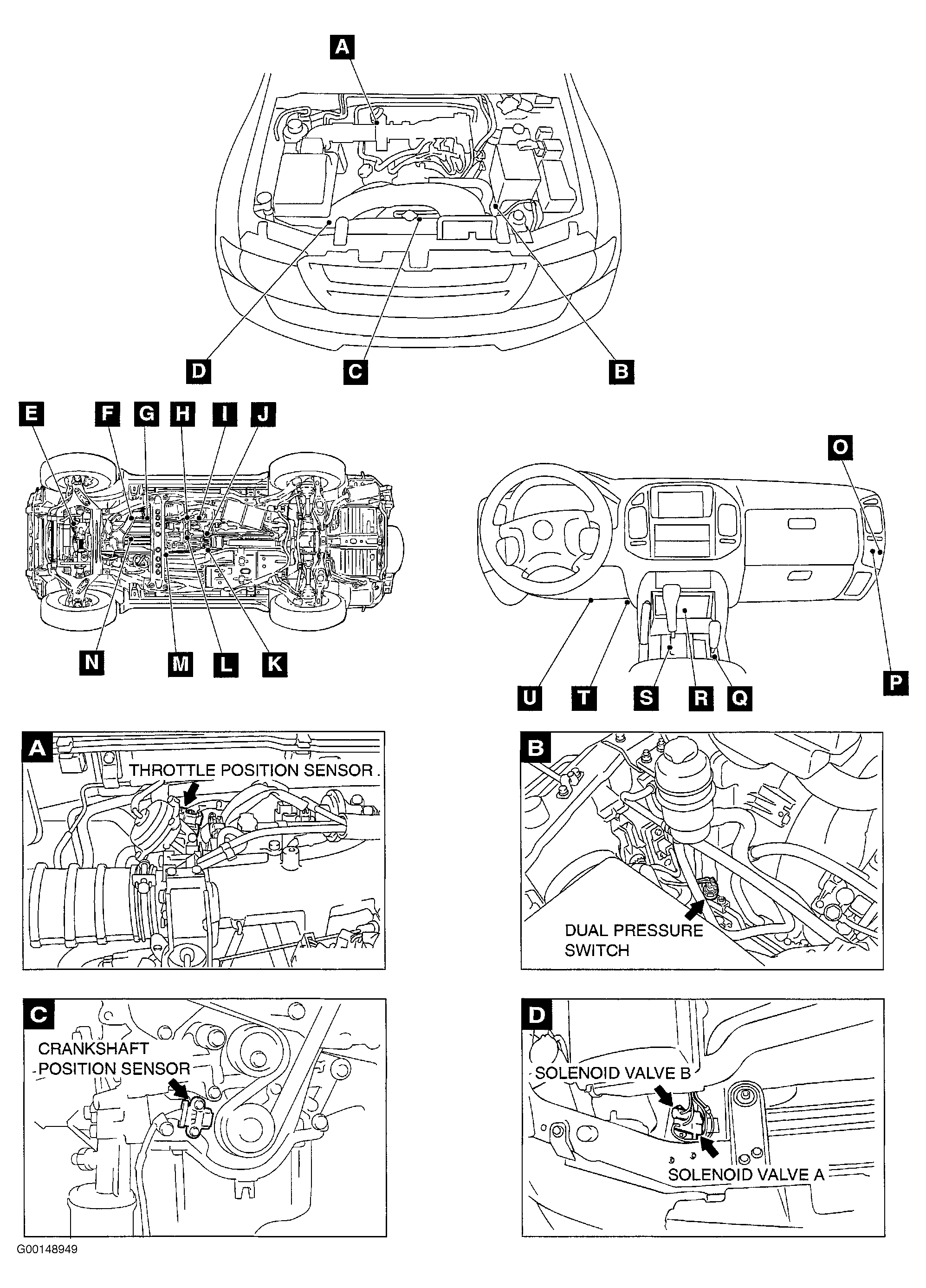

Fig 1: Transmission Electronic System Component Locations (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

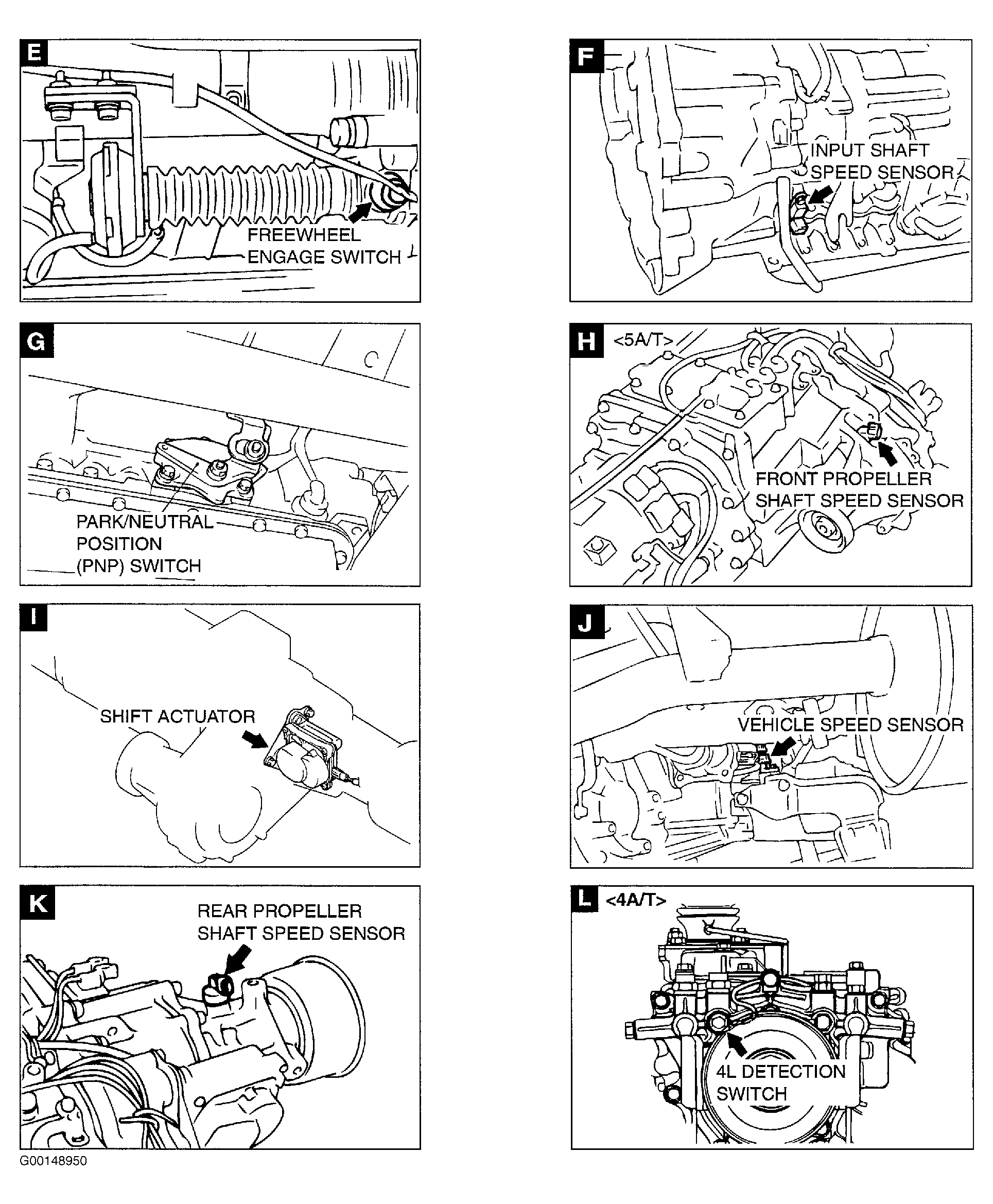

Fig 2: Transmission Electronic System Component Locations (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

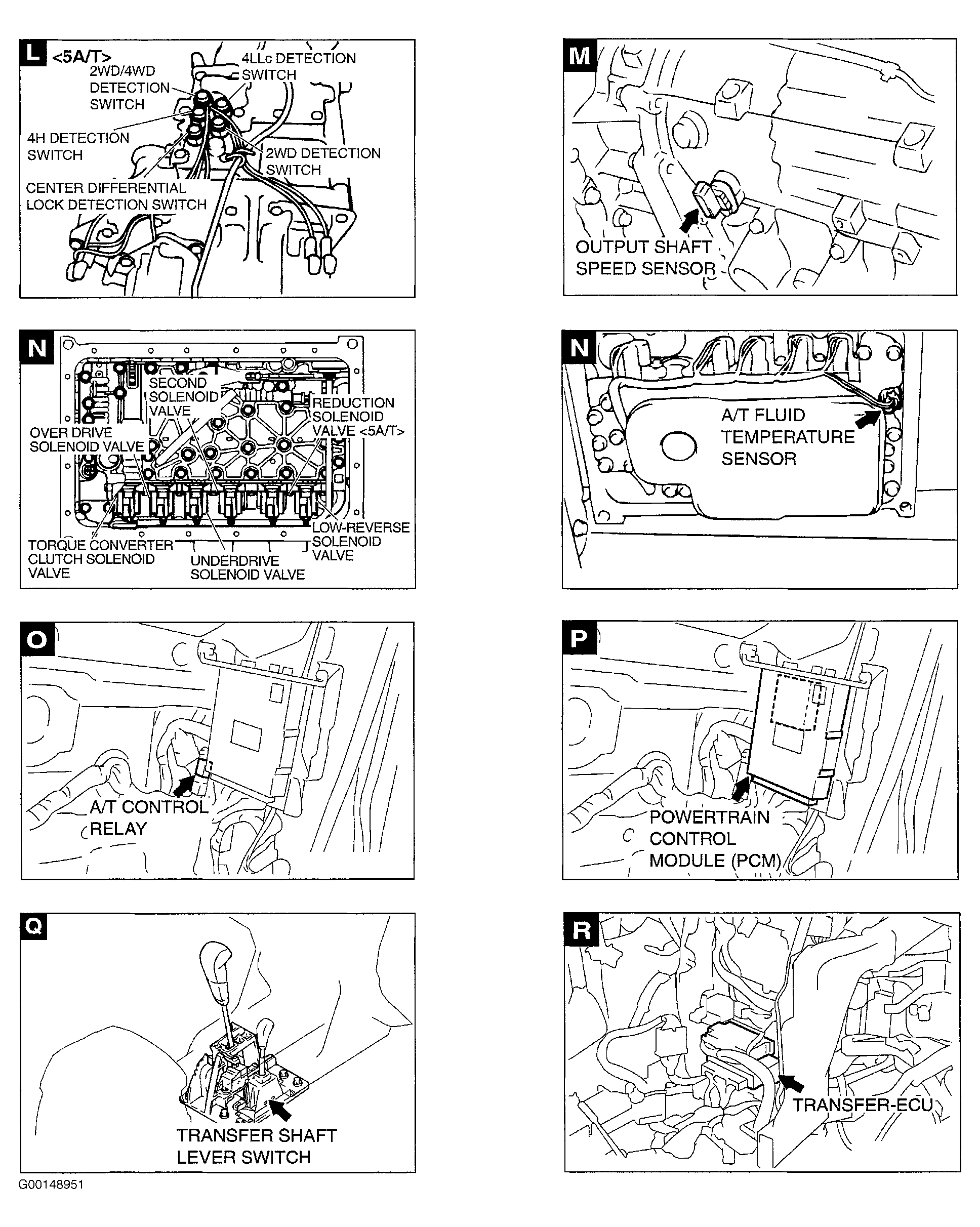

Fig 3: Transmission Electronic System Component Locations (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

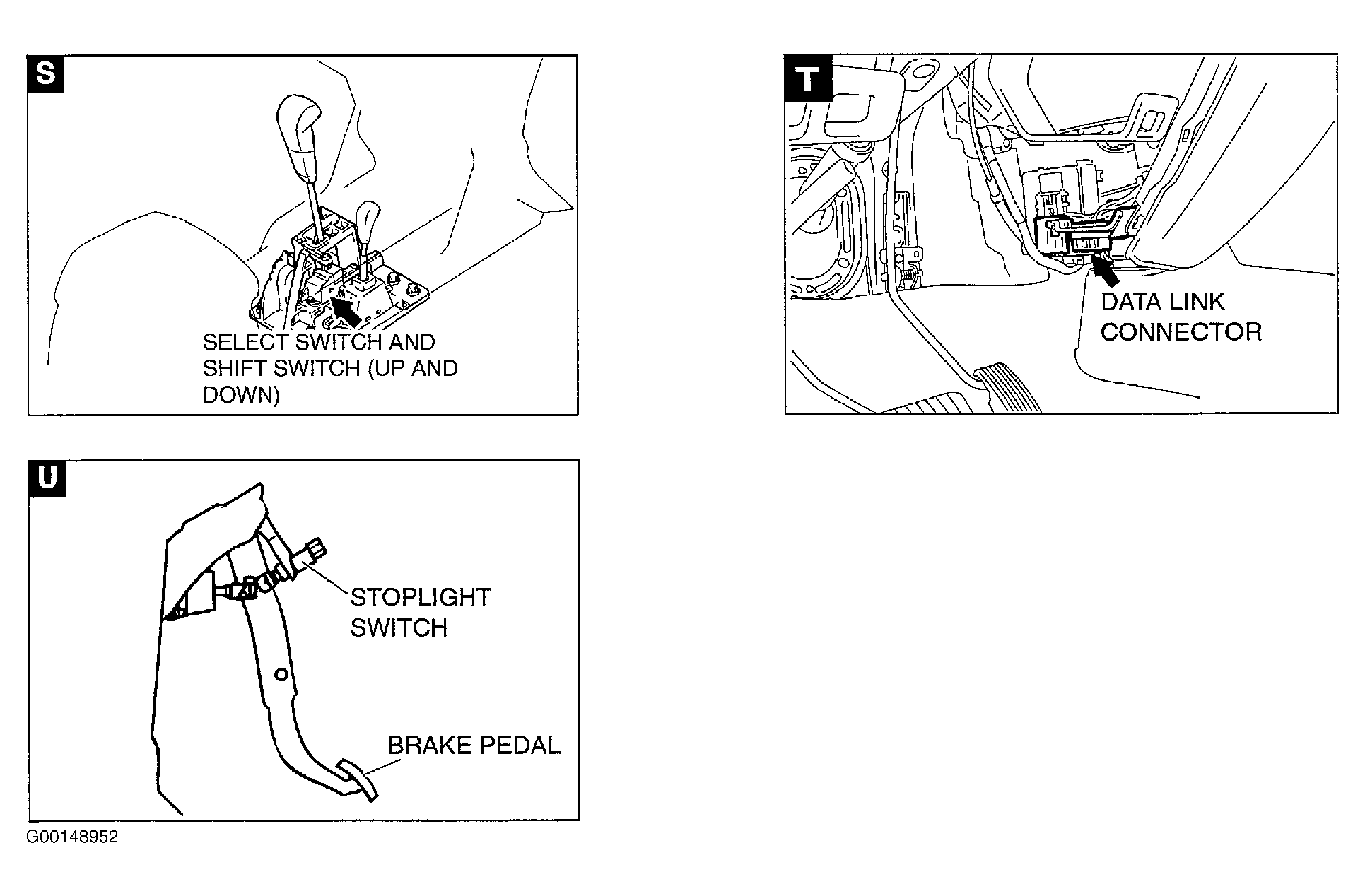

Fig 4: Transmission Electronic System Component Locations (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
