Gauge Resistance Test
- Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION.

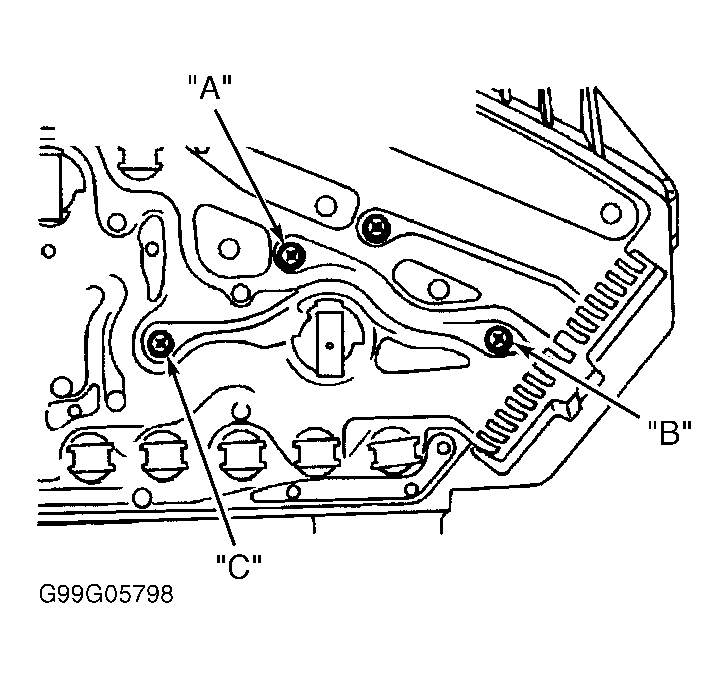

- Check resistance between temperature gauge terminals at rear of instrument cluster. See TEMPERATURE GAUGE RESISTANCE SPECIFICATIONS table. See Fig 1 or Fig 2 . If resistance is within specification, fuel gauge is okay. If resistance is not within specification, replace fuel gauge and engine coolant temperature gauge.
TEMPERATURE GAUGE RESISTANCE SPECIFICATIONS
| Application | Terminals | Ohms |
|---|---|---|
| Eclipse | A & B | 54 |
| A & C | 176 | |
| B & C | 230 | |
| Galant | A & B | 75 |
| A & C | 95 | |
| B & C | 170 | |
