Disc & Drum: Overhaul

NOTE: For master cylinder assembly instructions for Montero, see HYDRAULIC BRAKE BOOSTER - MONTERO article.

NOTE: For exploded views of calipers, see Fig 1-Fig 10 . For exploded view of master cylinder, see Fig 11-Fig 15 .

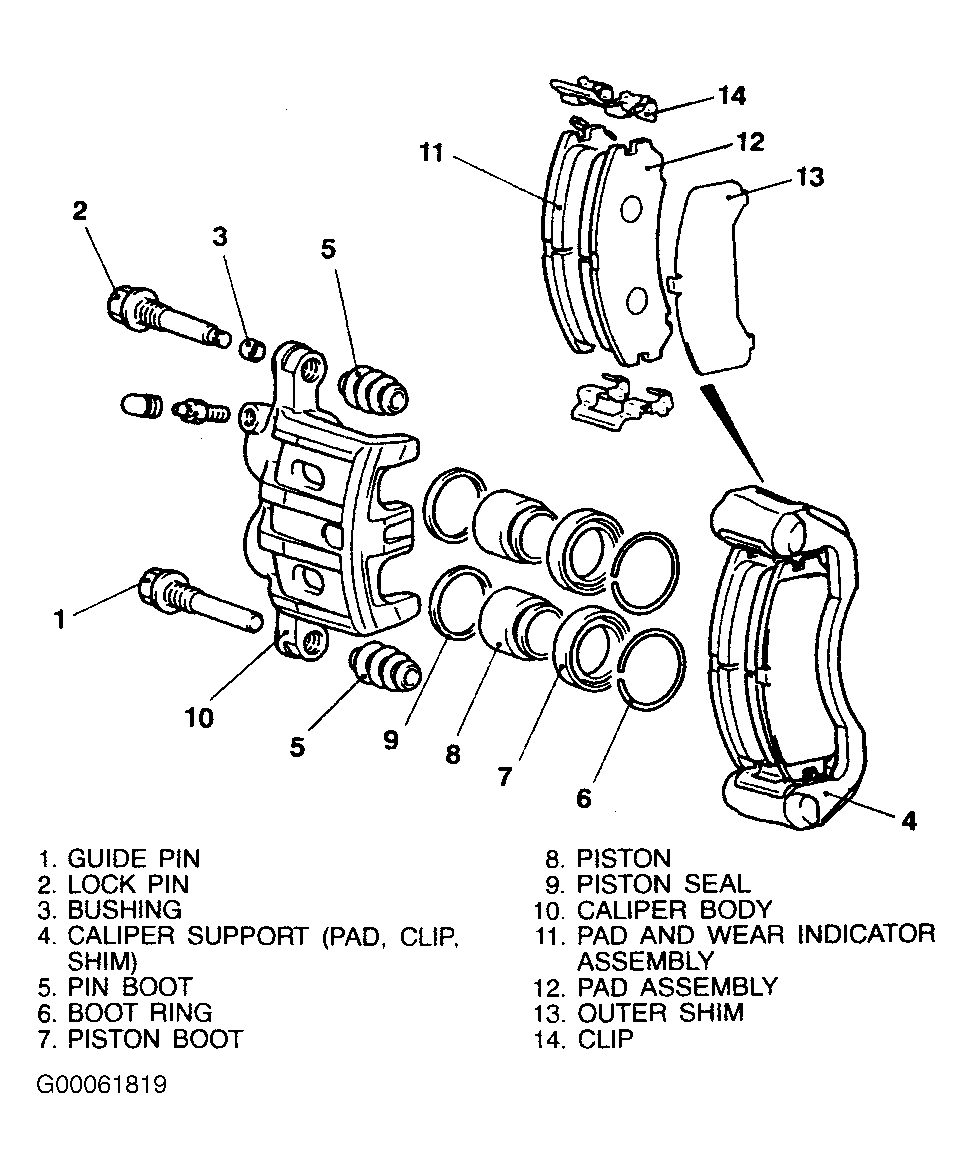

Fig 1: Exploded View Of Front Caliper Assembly (Diamante)

G00061819

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

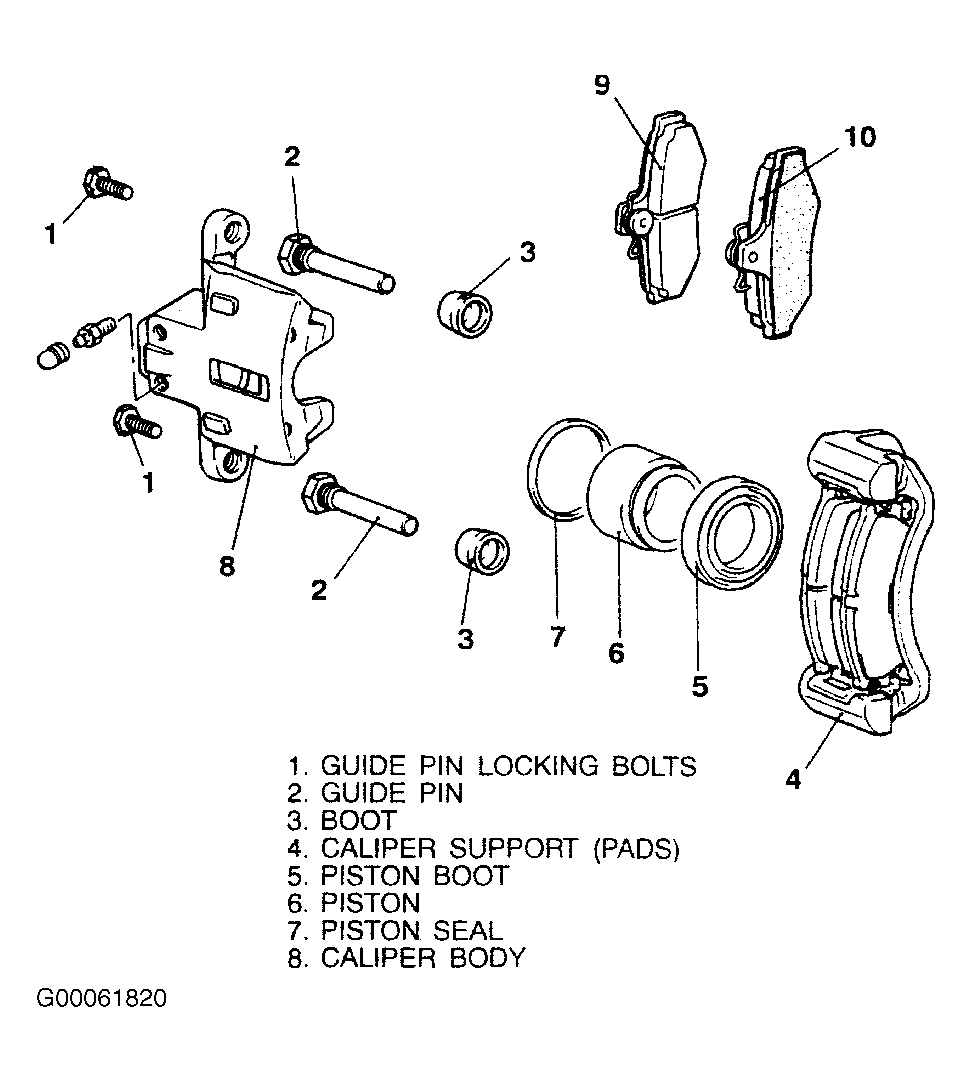

Fig 2: Exploded View Of Rear Caliper Assembly (Diamante)

G00061820

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

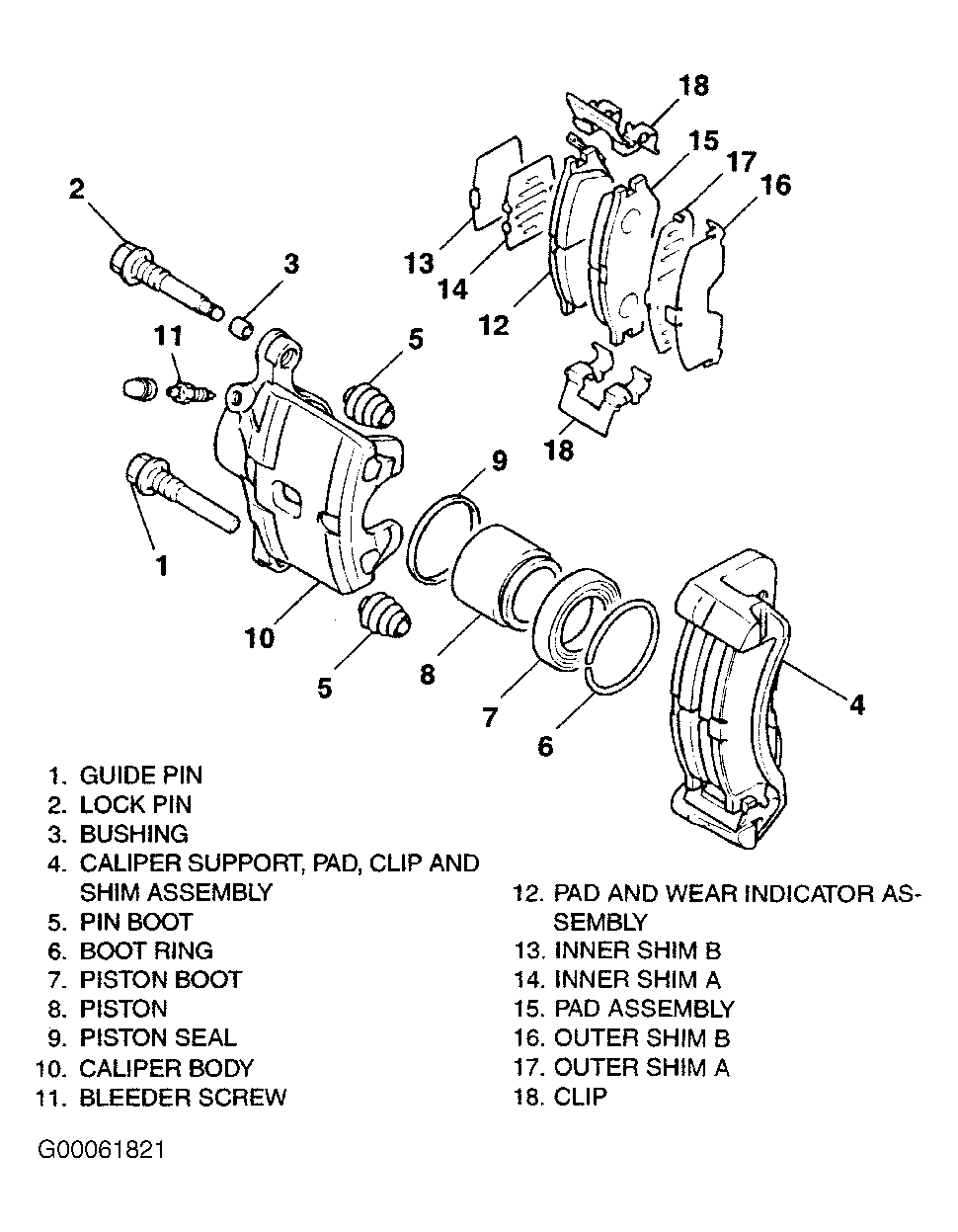

Fig 3: Exploded View Of Front Caliper Assembly (Eclipse & Galant - 2.4L Engine)

G00061821

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

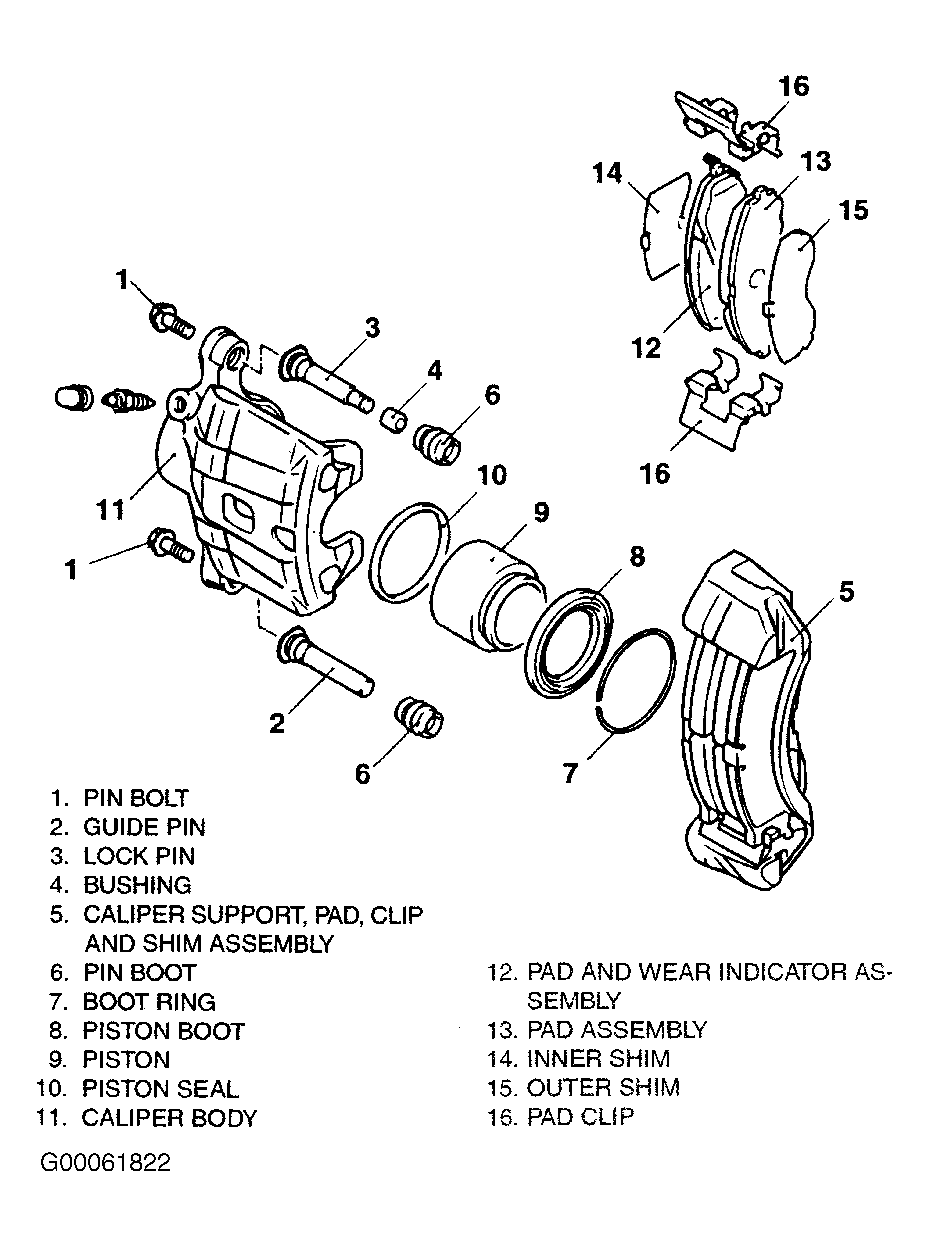

Fig 4: Exploded View Of Front Caliper Assembly (Eclipse & Galant - 3.0L Engine)

G00061822

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

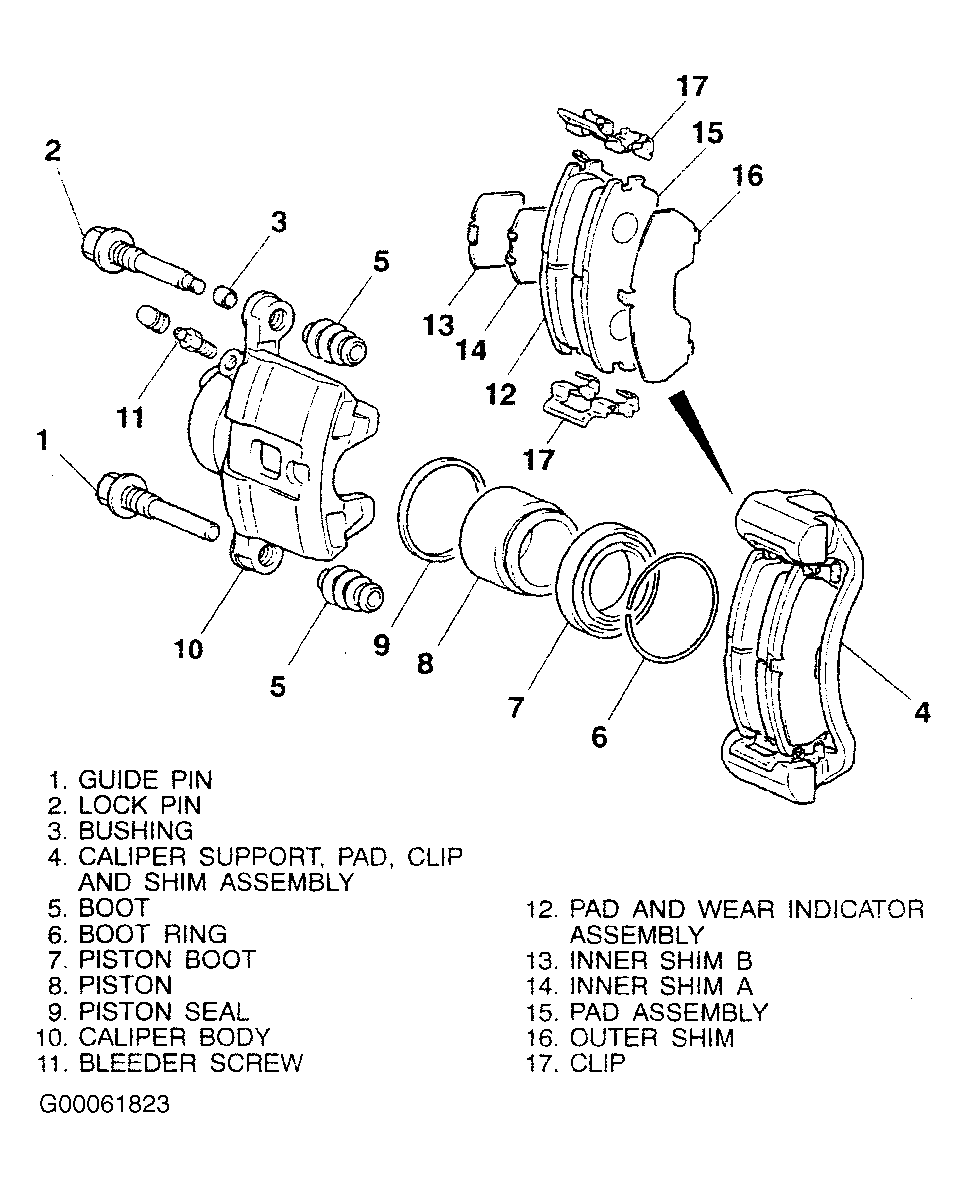

Fig 5: Exploded View Of Rear Caliper Assembly (Eclipse & Galant)

G00061823

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

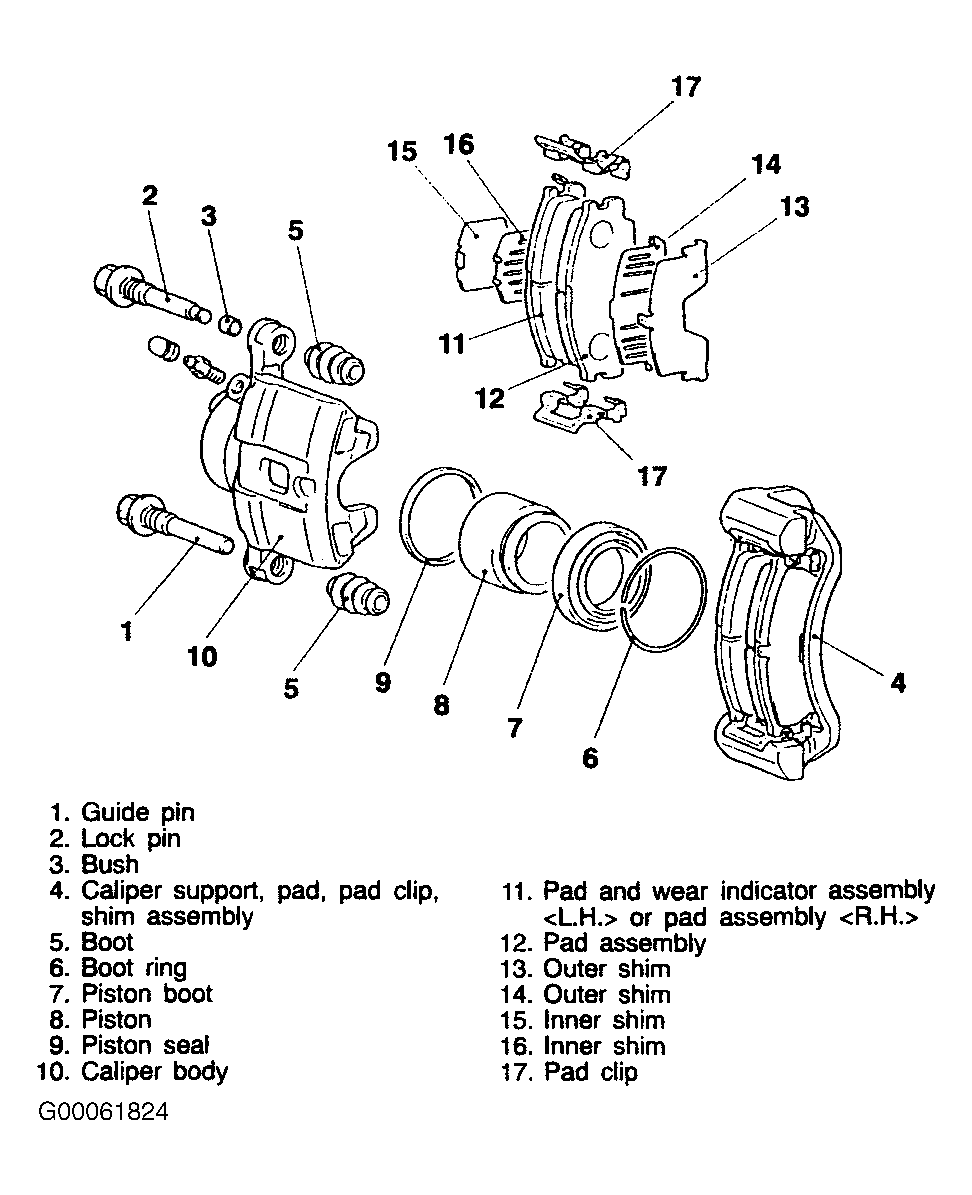

Fig 6: Exploded View Of Front Caliper Assembly (Mirage)

G00061824

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

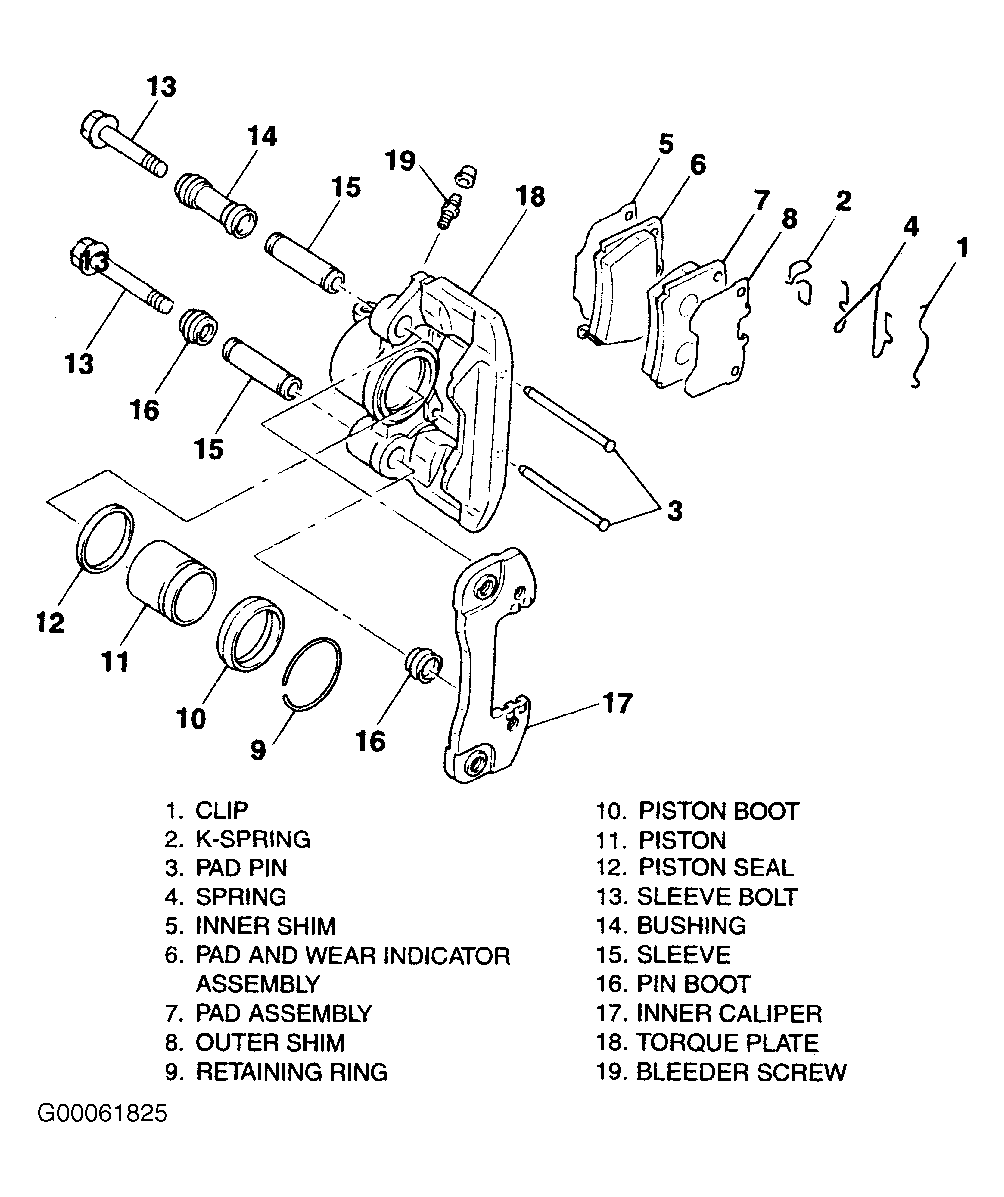

Fig 7: Exploded View Of Rear Caliper Assembly (Montero Sport - With Rear Disc Brakes)

G00061825

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

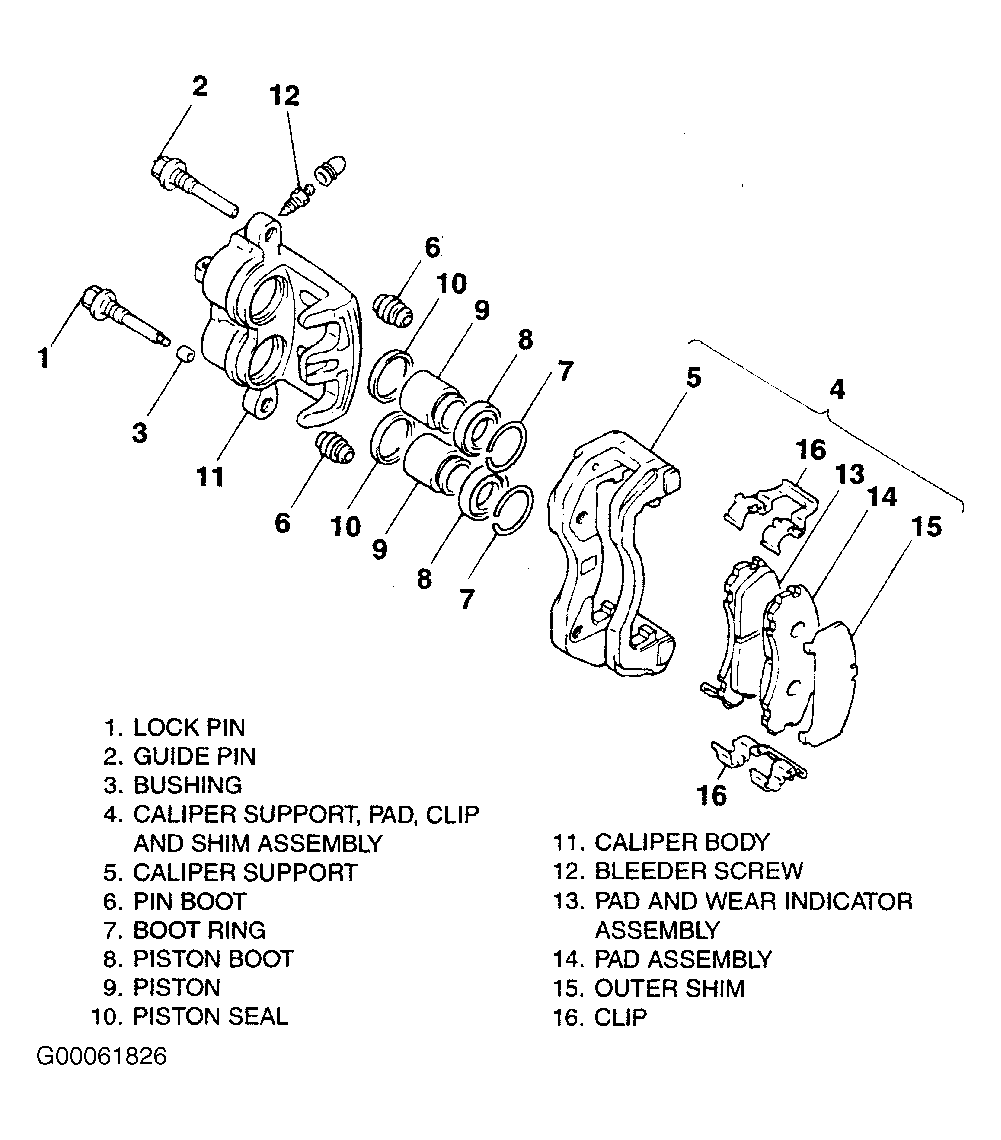

Fig 8: Exploded View Of Front Caliper Assembly (Montero Sport)

G00061826

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

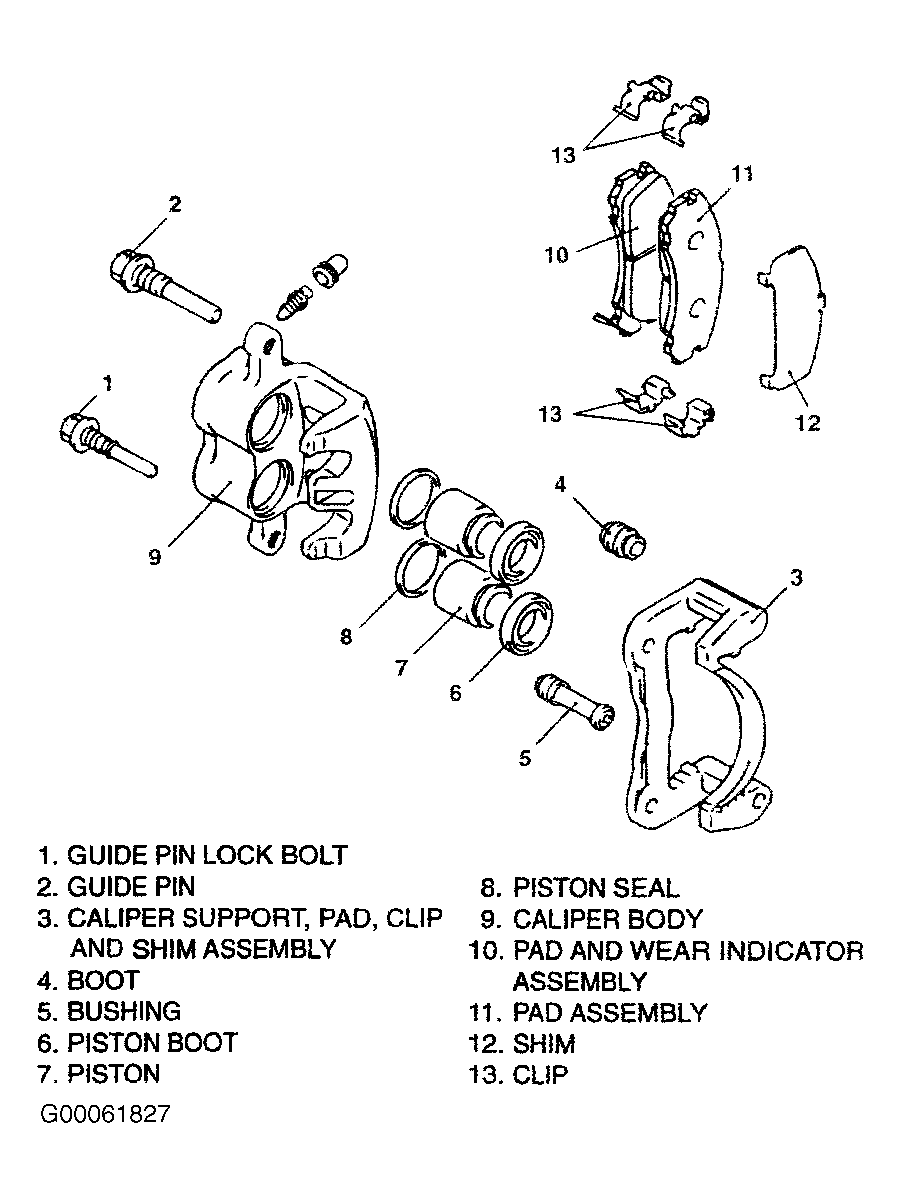

Fig 9: Exploded View Of Front Caliper Assembly (Montero)

G00061827

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

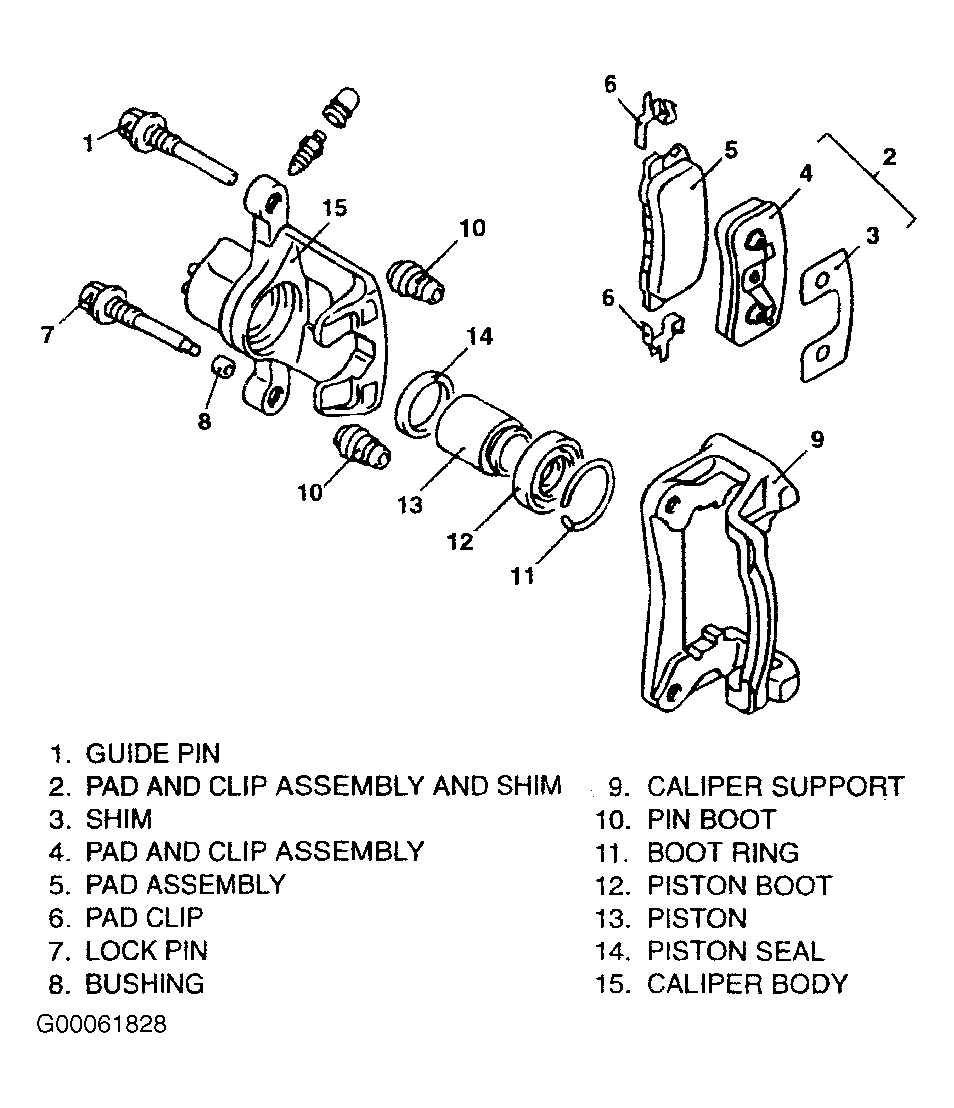

Fig 10: Exploded View Of Rear Caliper Assembly (Montero)

G00061828

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

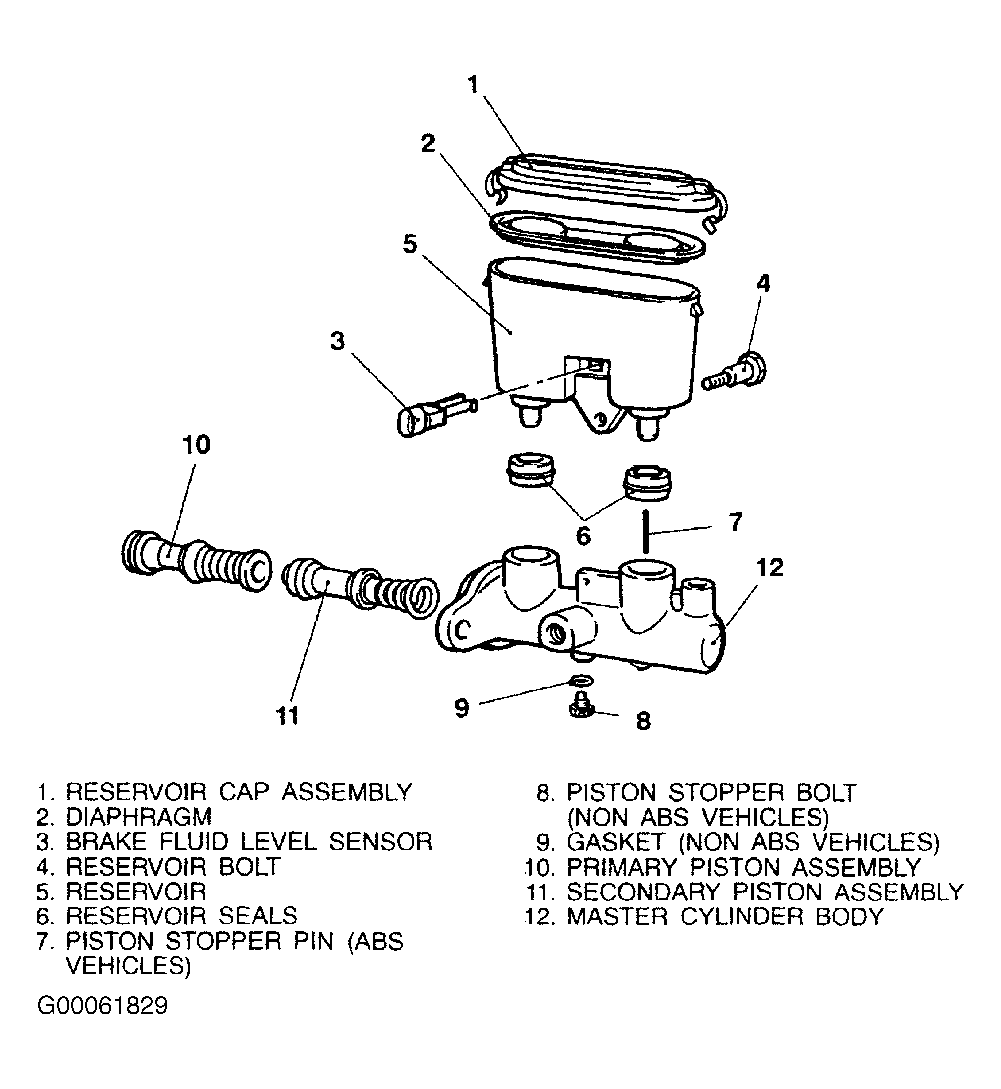

Fig 11: Exploded View Of Master Cylinder Assembly (Diamante)

G00061829

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

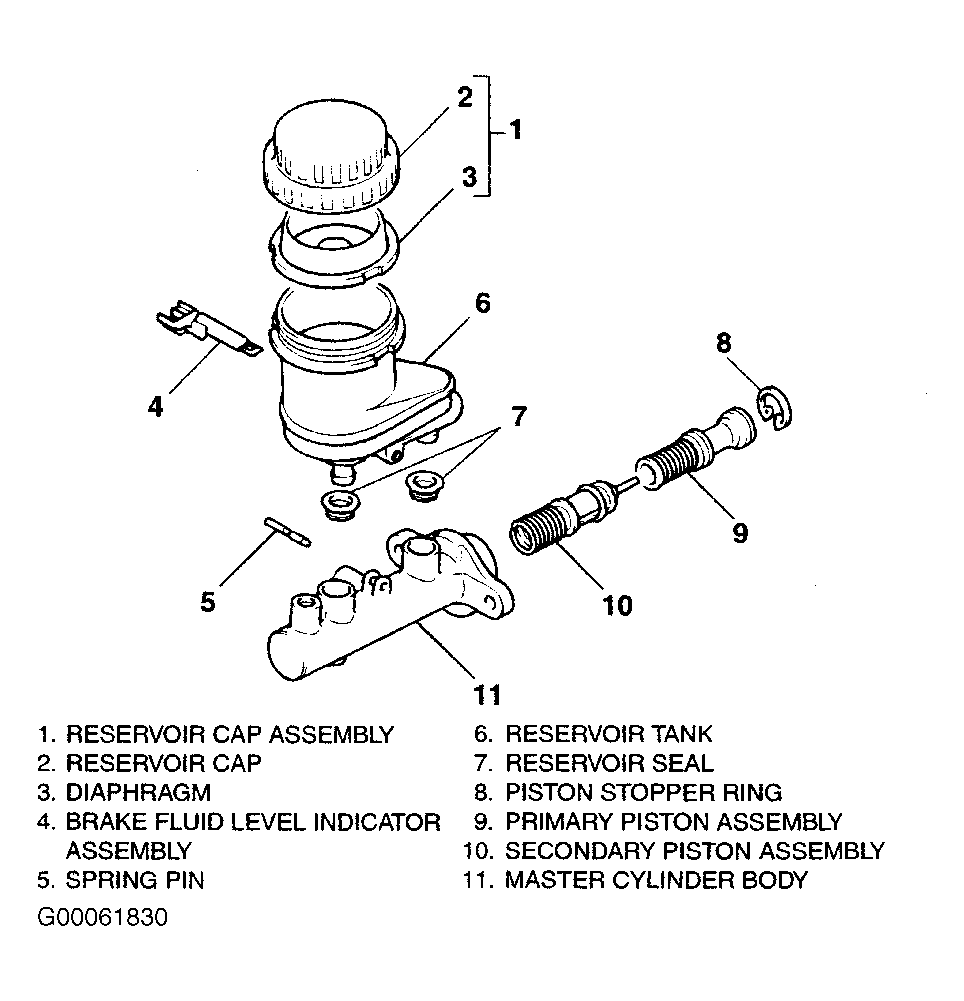

Fig 12: Exploded View Of Master Cylinder Assembly (Eclipse & Galant - Without Traction Control)

G00061830

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

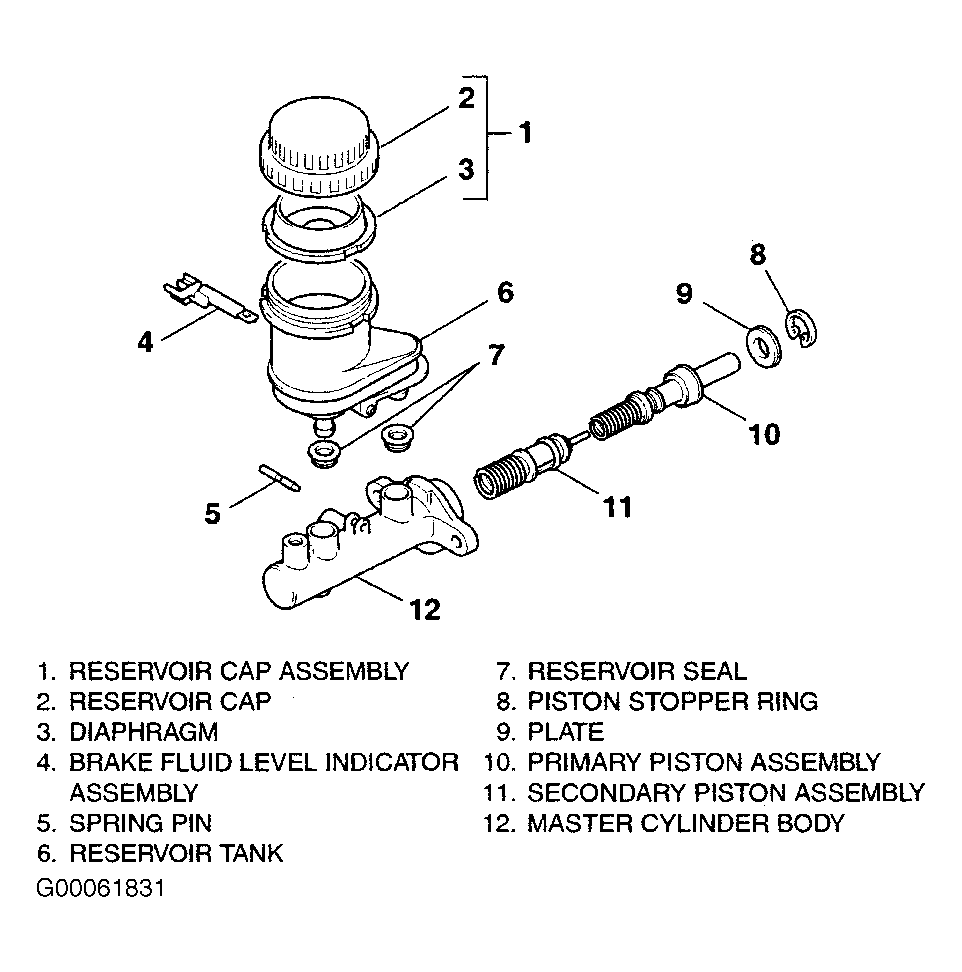

Fig 13: Exploded View Of Master Cylinder Assembly (Galant - With Traction Control)

G00061831

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

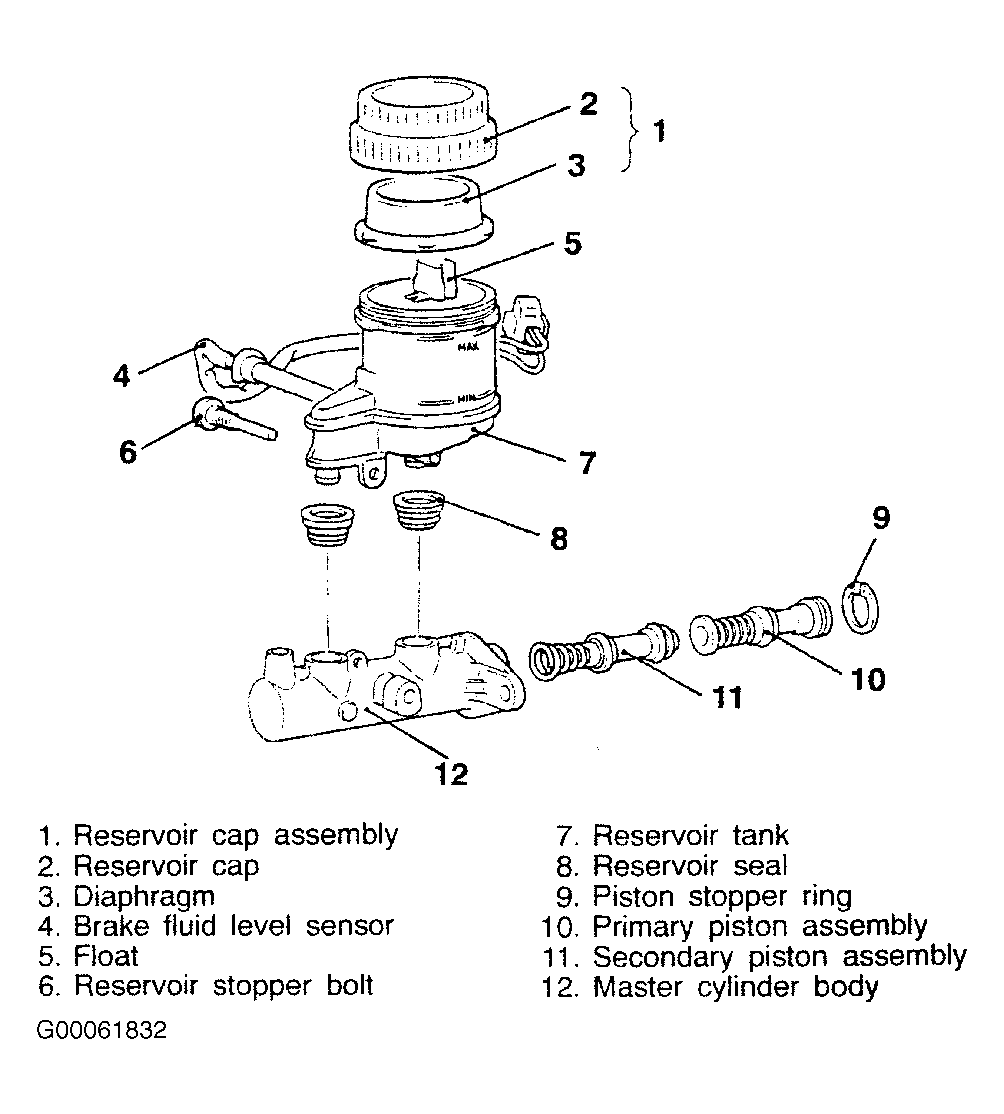

Fig 14: Exploded View Of Master Cylinder Assembly (Mirage)

G00061832

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

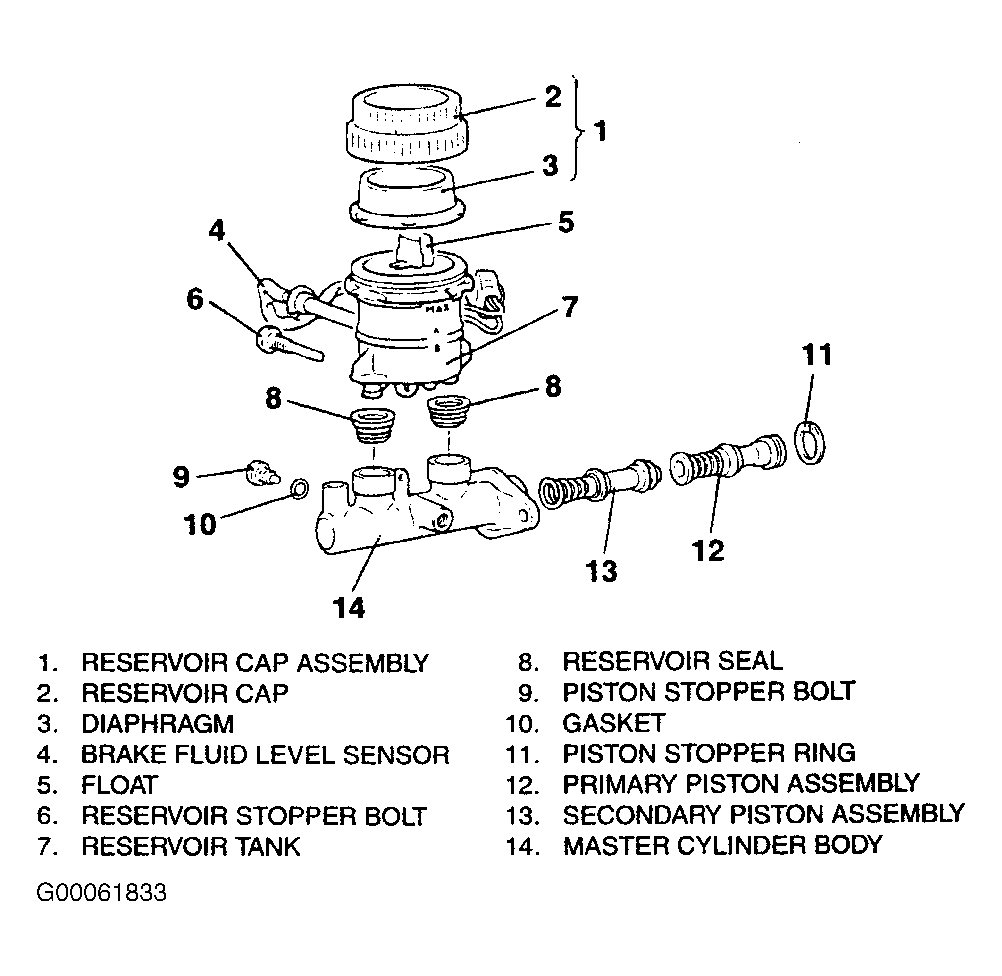

Fig 15: Exploded View Of Master Cylinder Assembly (Montero Sport)

G00061833

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
