Removal & Installation (Eclipse & Galant)

Disconnect negative battery cable. Remove cluster cover. Remove cluster mounting screws. Remove cluster by turning upper part toward front. Disconnect all electrical connectors from instrument cluster. Remove instrument cluster. To install, reverse removal procedure. See Fig 1 or Fig 2 .

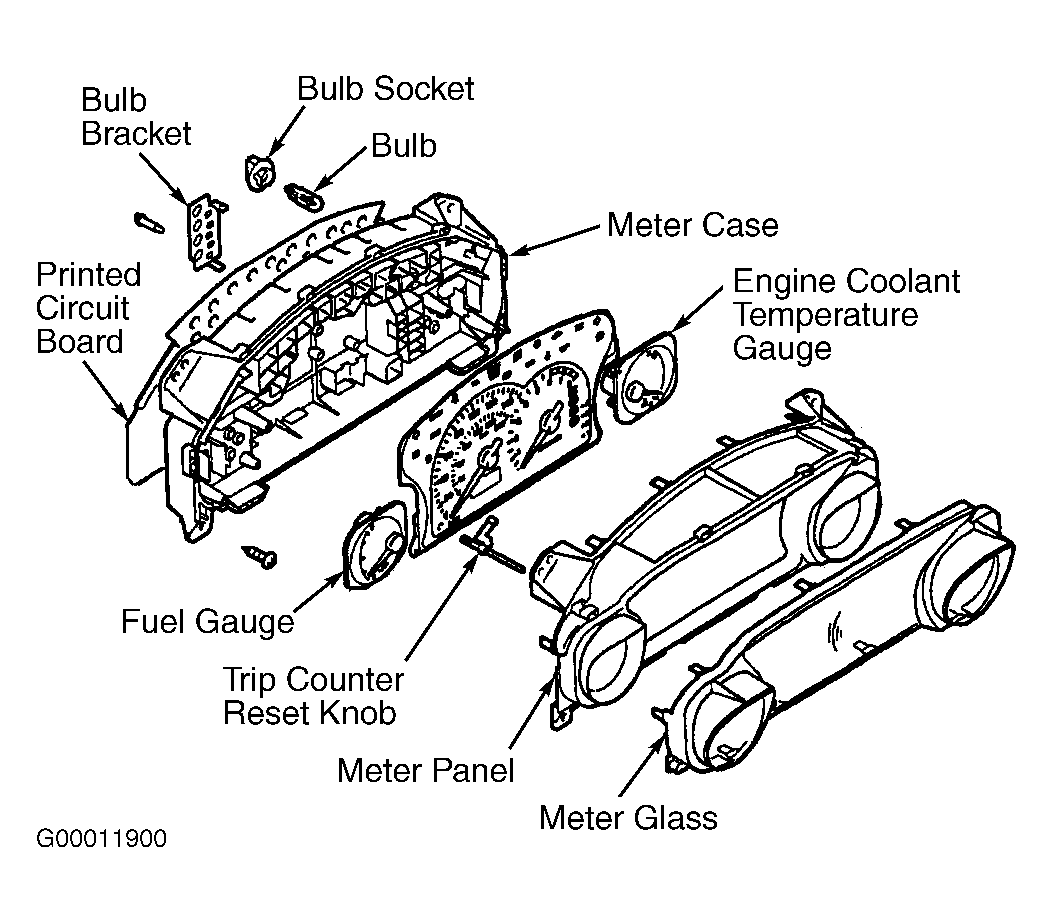

Fig 1: Exploded View Of Instrument Cluster Components (Eclipse)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

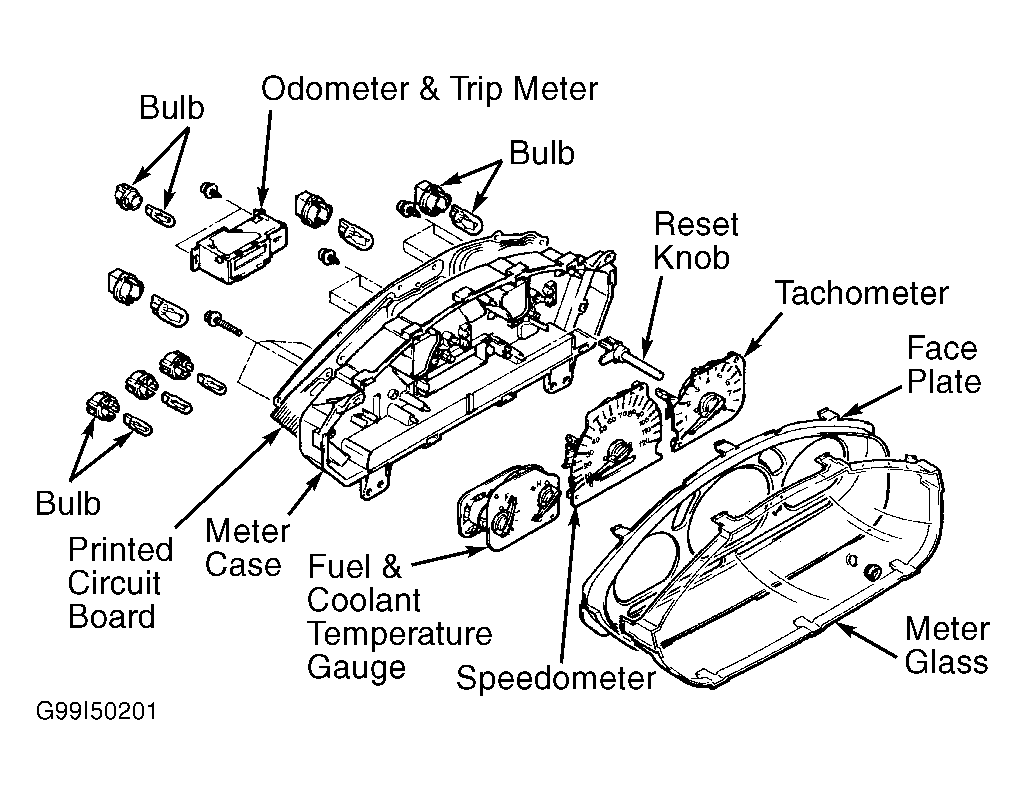

Fig 2: Exploded View Of Instrument Cluster Components (Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
