Resistance Test

Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION.
Check resistance between appropriate terminals of instrument cluster or combination gauges. See Fig 1 or Fig 2 . See FUEL GAUGE RESISTANCE SPECIFICATIONS table. If resistance is within specification, fuel gauge is okay. If resistance is not within specification, replace fuel gauge and engine coolant temperature gauge.

FUEL GAUGE RESISTANCE SPECIFICATIONS

Application

⁽¹⁾ Terminals

Ohms

Eclipse

A & B

108

A & C

233

B & C

125

Galant

A & B

A & C

B & C

⁽¹⁾	For terminal locations, See Fig 1 or Fig 2 .

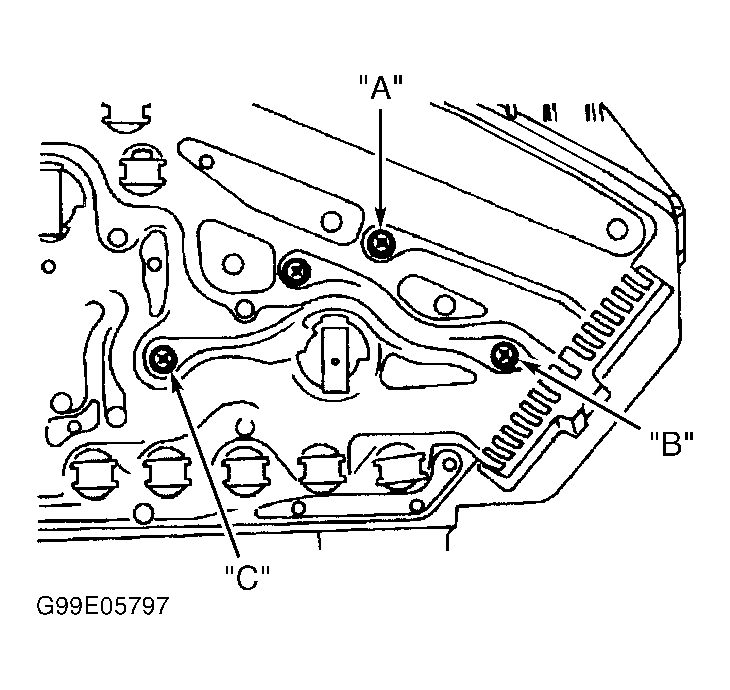

Fig 1: Instrument Panel Fuel Gauge Test Pins (Eclipse)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 2: Instrument Panel Fuel Gauge Test Pins (Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
