Gauge Resistance Test

Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. On 3000GT, remove air distribution duct and combination gauges.
On all models, check resistance between temperature gauge terminals at rear of cluster or combination gauges. See TEMPERATURE GAUGE RESISTANCE SPECIFICATIONS table. See Fig 1-Fig 8 .

TEMPERATURE GAUGE RESISTANCE SPECIFICATIONS

Application	Terminals	Ohms
Eclipse	A & B	51-57
A & C		210-256
B & C		161-197
Galant	A & B	75
A & C		95
B & C		170
Mirage	A & B	86-95
A & C		222-272
B & C		168-206
Montero	No. 4 & 8	103-128
No. 4 & 9		221-271
No. 8 & 9		130-160
Montero Sport	A & B	103
A & C		88
B & C		191
3000GT	A & B	51
A & C		139
B & C		190

Fig 1: Temperature Gauge Test Pins (Eclipse 2.0L Non-Turbo & 2.4L)

G99J50210

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 2: Temperature Gauge Test Pins (Eclipse 2.0L Turbo)

G99C50213

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 3: Temperature Gauge Test Pins (Galant)

G99G05798

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 4: Temperature Gauge Test Pins (Mirage - With Tachometer)

G99D50214

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 5: Temperature Gauge Test Pins (Mirage - Without Tachometer)

G99A50211

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

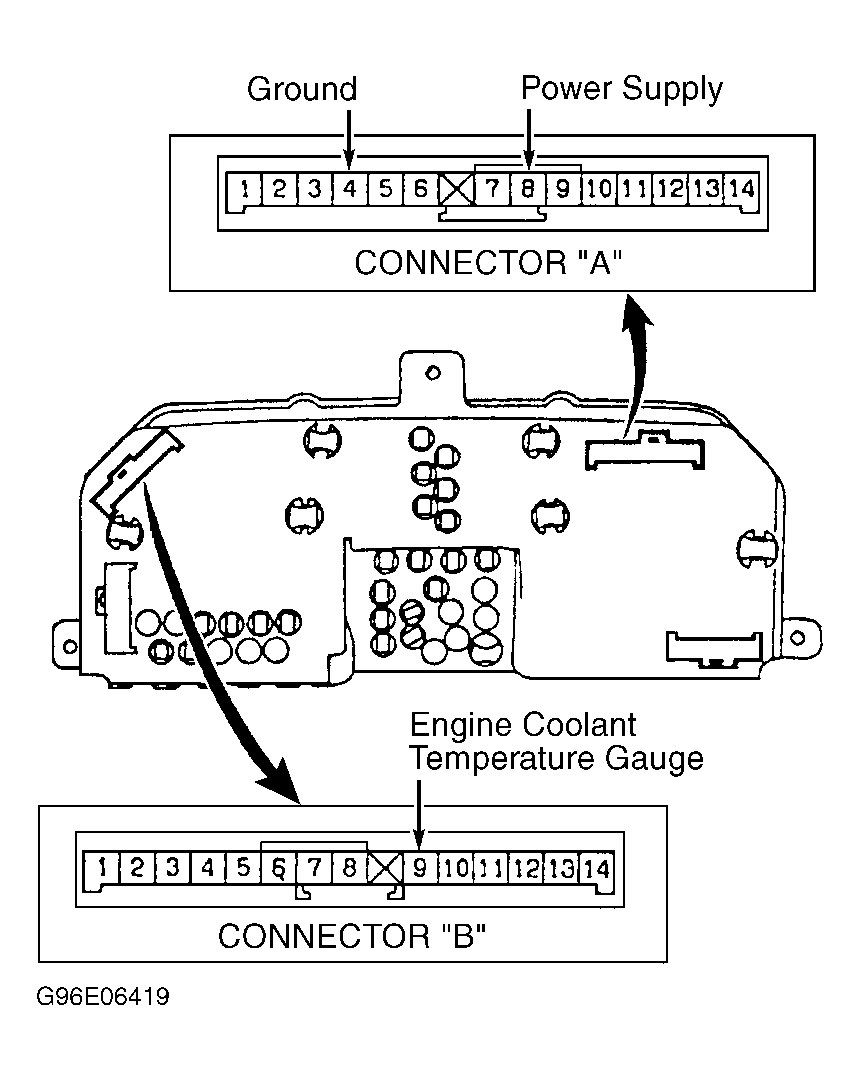

Fig 6: Temperature Gauge Test Pins (Montero)

G96E06419

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 7: Temperature Gauge Test Pins (Montero Sport)

G99B50212

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 8: Temperature Gauge Test Pins (3000GT)

G92I00198

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
