Gauge Resistance Test (Eclipse, Montero & 3000GT)

1. Remove instrument cluster from instrument panel. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION. On 3000GT, remove air distribution duct and combination gauges.
2. On all models, check continuity between oil pressure gauge terminals. See Fig 1, Fig 2 or Fig 3 . See OIL PRESSURE GAUGE RESISTANCE SPECIFICATIONS  table. If resistance is not within specification, replace oil pressure gauge.

OIL PRESSURE GAUGE RESISTANCE SPECIFICATIONS

Application	Ohms
Eclipse	40-44
Montero	50
3000GT	42

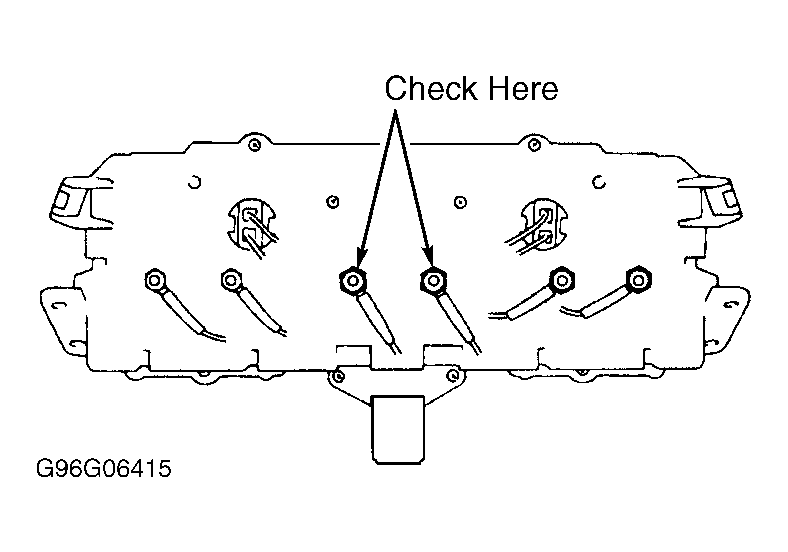

Fig 1: Oil Pressure Gauge Resistance Test Terminals (Eclipse)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 2: Oil Pressure Gauge Resistance Test Terminals (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 3: Oil Pressure Gauge Resistance Test Terminals (3000GT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

NOTE: On Montero Sport, oil pressure gauge is mounted on multi-meter assembly on center of dashboard.
