Removal (Except Diamante & 3000GT)

Raise and support vehicle. Remove rear wheels. Disconnect rear speed sensor (if equipped). Remove rear disc brake calipers and rotors. See REAR BRAKE CALIPER .
Remove adjuster spring. Remove shoe hold-down cup, spring and pin. See Fig 1. Note how shoe-to-anchor spring is installed for installation reference. Remove adjuster and shoe-to-anchor spring. Remove strut and return spring. Remove clip and shoe and lining assembly.

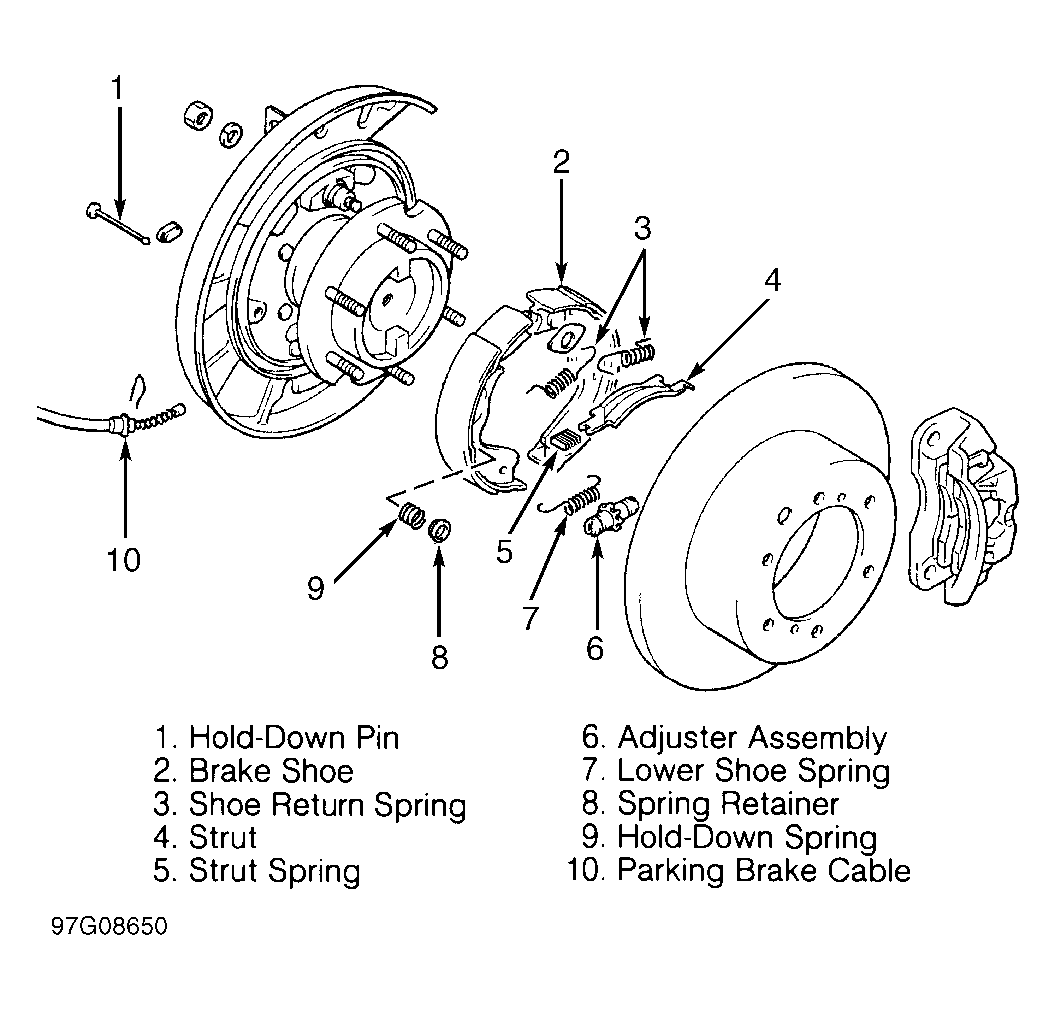

Fig 1: Exploded View Of Parking Brake Assembly (Typical With Rear Disc Brakes - Except Diamante)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Exploded View Of Parking Brake Assembly (Diamante)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Shoe-to-anchor spring must be installed correctly for proper functioning of parking brakes.
