Removal & Installation (3000GT)

Disconnect negative battery cable. Remove driver-side knee protector. Remove lower and upper column covers. Remove meter bezel and instrument cluster. Disconnect electrical connectors from instrument cluster. Remove instrument cluster. To install, reverse removal procedure. See Fig 6.

Fig 1: Instrument Cluster Components (Eclipse)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

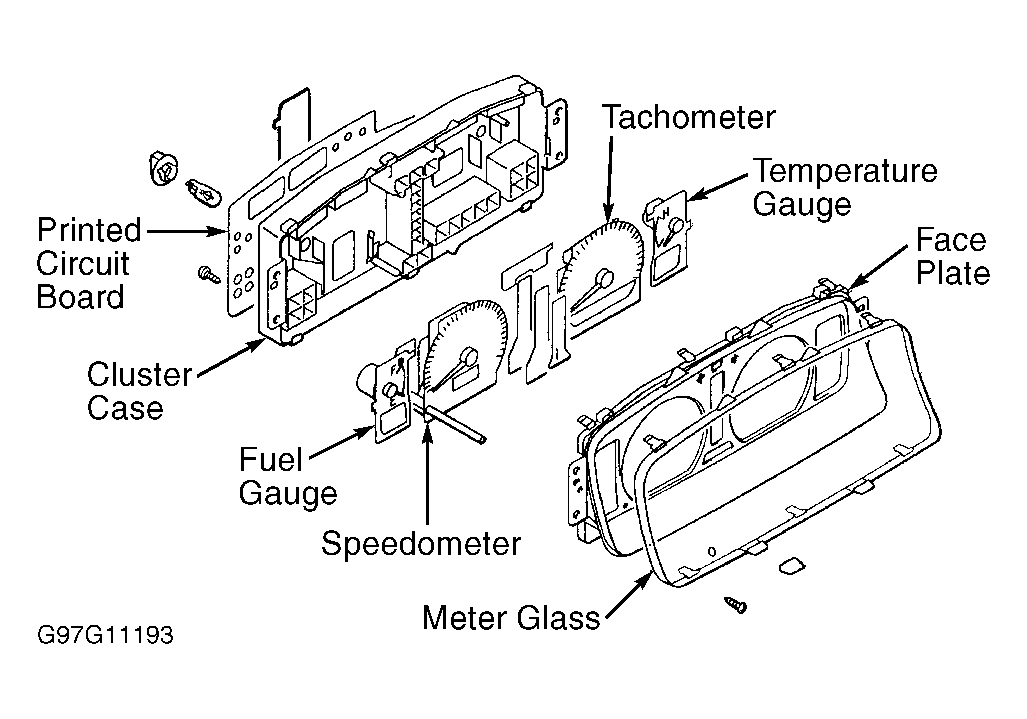

Fig 2: Instrument Cluster Components (Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 3: Instrument Cluster Components (Mirage)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 4: Instrument Cluster Components (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 5: Instrument Cluster Components (Montero Sport)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

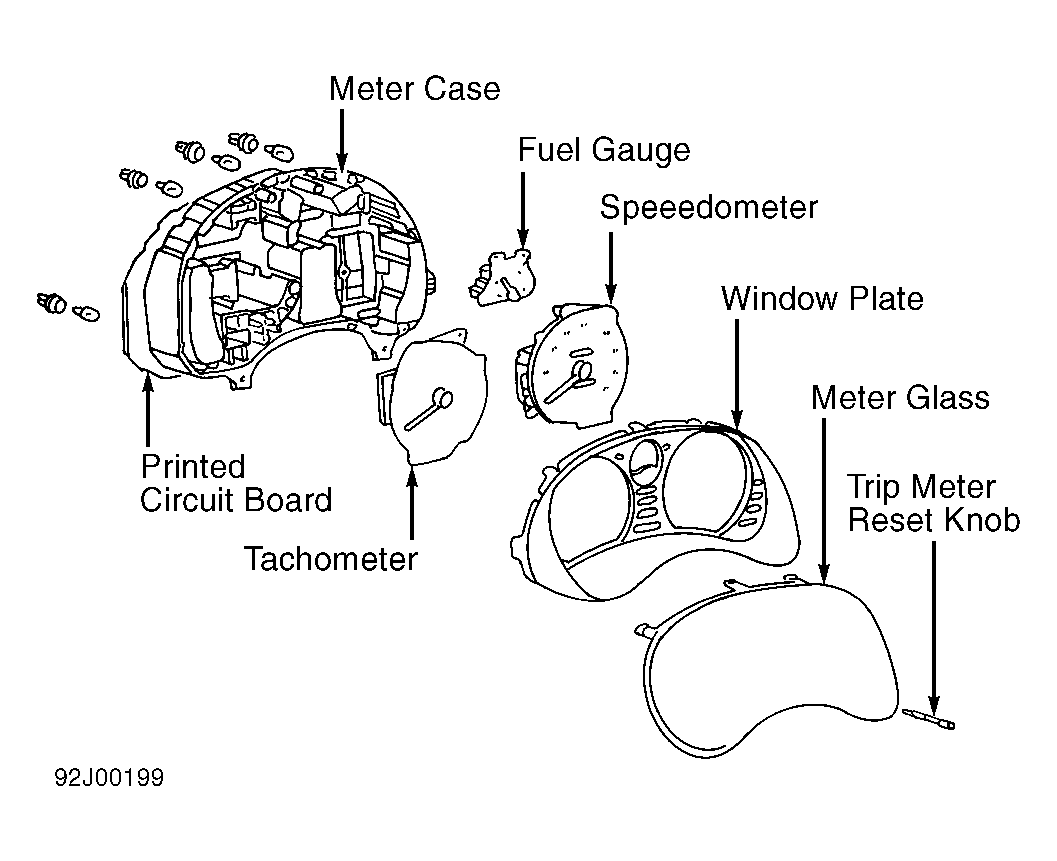

Fig 6: Instrument Cluster Components (3000GT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
