Suspension - Rear: Description

Rear multi-link suspension incorporates an upper A-arm, lower trailing link and 2 lower split level lateral links. Rear strut assembly is connected to knuckle. Rear stabilizer bar is available as an option. See Fig 1 .

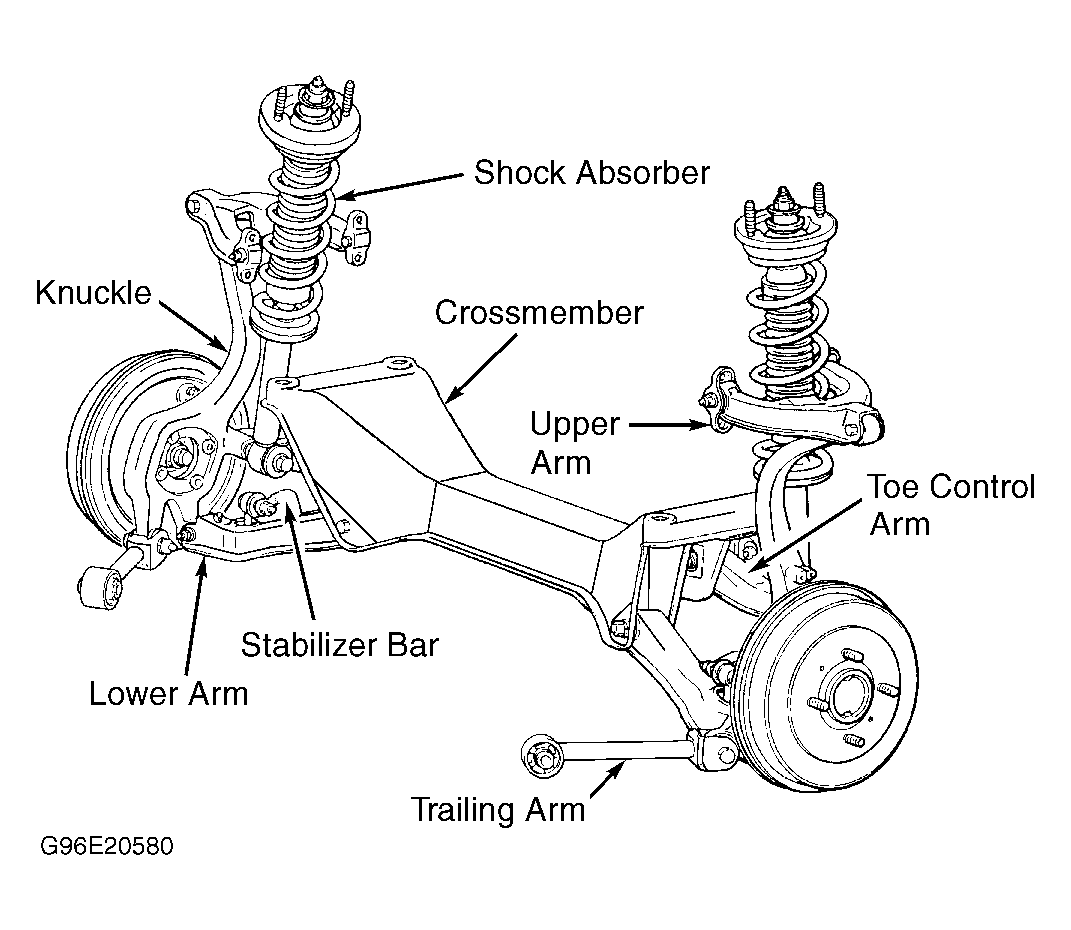

Fig 1: Exploded View Of Rear Suspension

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
