Wiring Diagrams

WARNING: This page is about a different car, the 1995 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

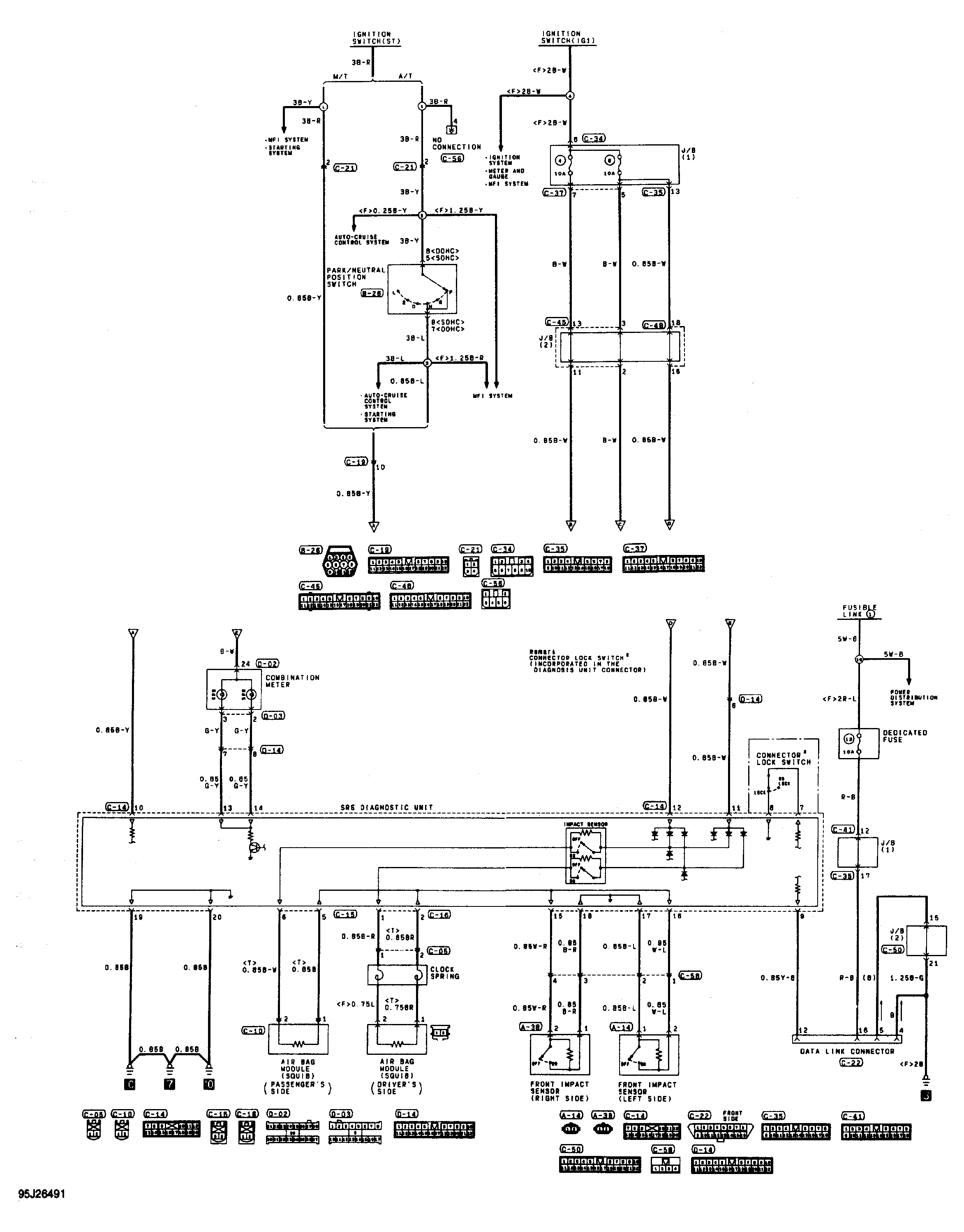

Fig 1: SRS Wiring Diagram
G95J26491Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
