Data Link Connector (DLC)

WARNING: This page is about a different car, the 1995 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

DLC is located under left side of dash. See Fig 1 . DLC is used to access SRS self-diagnostics through Mitsubishi Multi-Use Tester II (MUT-II) (MB991502).

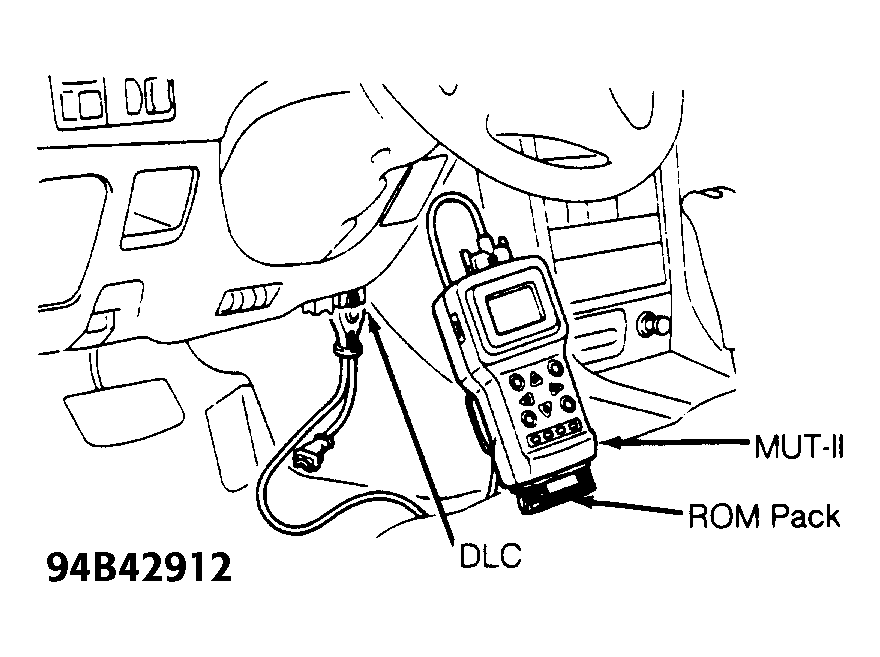

Fig 1: Locating Data Link Connector (DLC)
G94B42912Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
