Front Impact Sensor Test
WARNING: This page is about a different car, the 1995 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

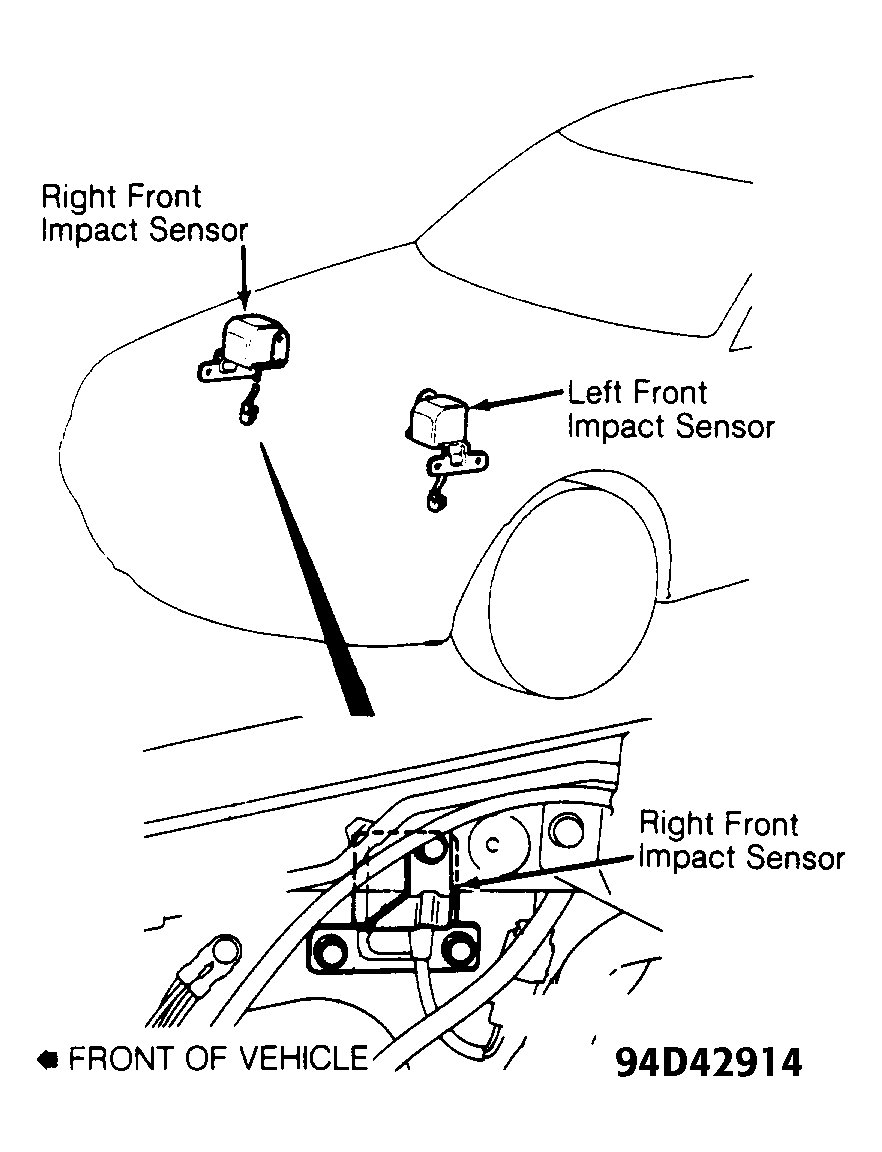

Before proceeding, read and understand all air bag service precautions. See SERVICE PRECAUTIONS . Disconnect front impact sensor connector. See Figure & 4. Measure resistance across sensor connector terminals. Replace sensor if resistance is not 1960-2040 ohms. Measure resistance between each terminal and sensor case. Resistance should be infinite.
