Instrument Cluster

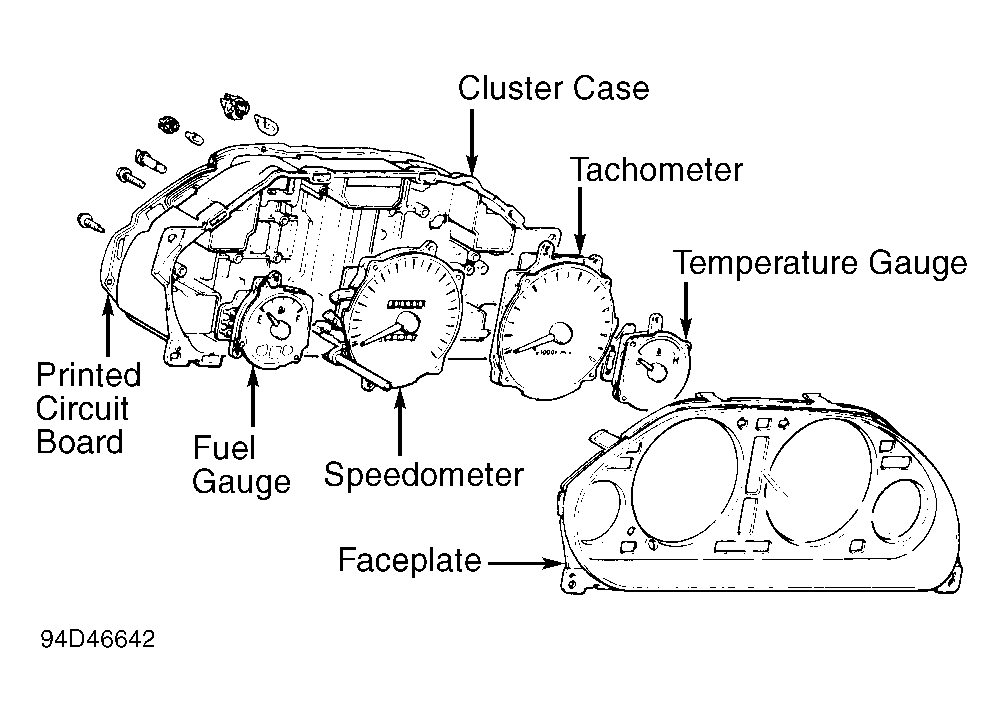

Disconnect negative battery cable. Remove trip meter reset knob and gauge cluster bezel. SeeFig 1 . Remove 4 cluster mounting screws. Remove cluster by turning upper part toward front. Disconnect electrical connectors and speedometer cable adapter. To install, reverse removal procedure.
