Hydraulic Diagrams - F4A33, W4A32 & W4A33 Automatic Transmission

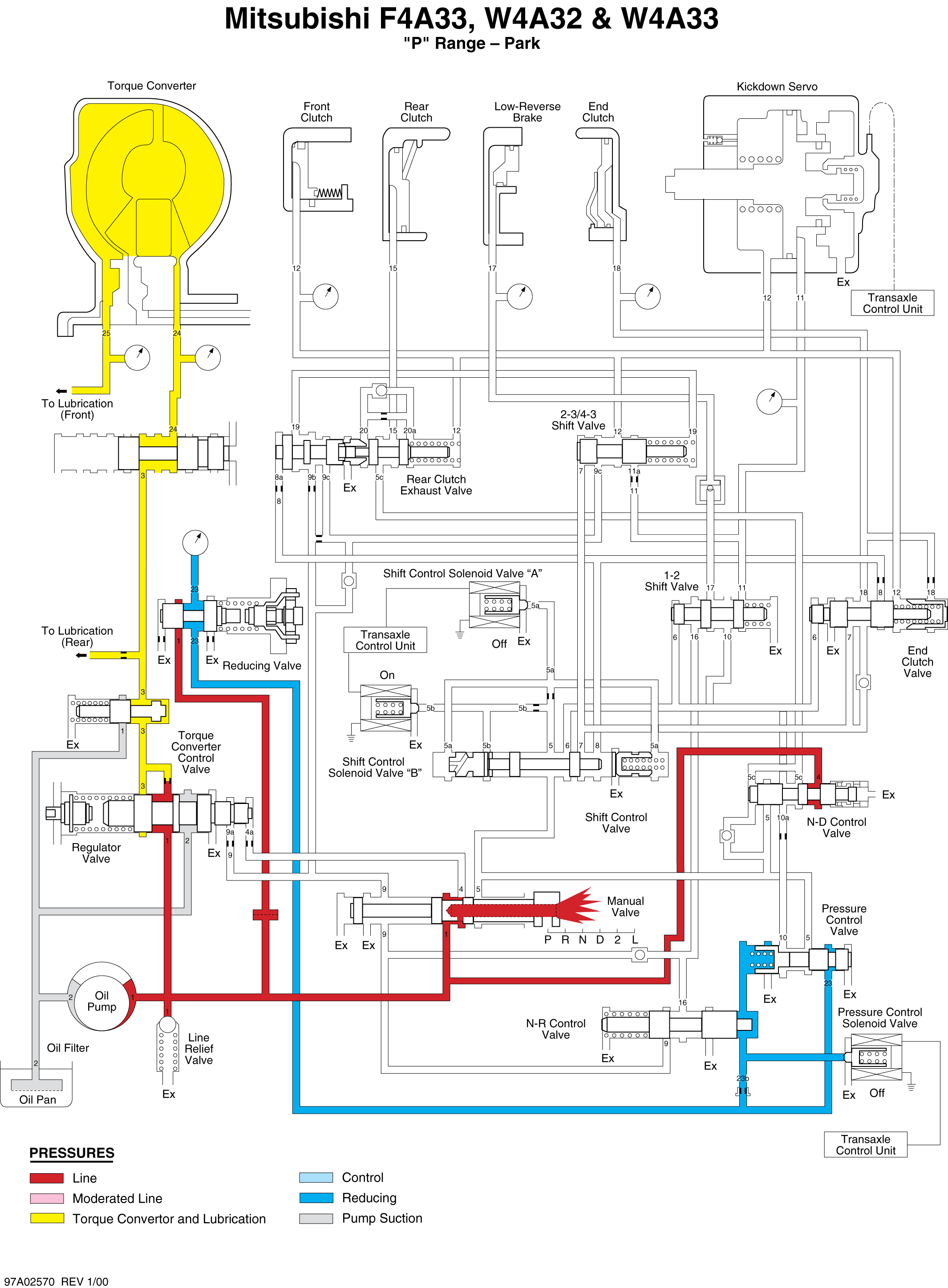

Fig 1: "P" Range - Park

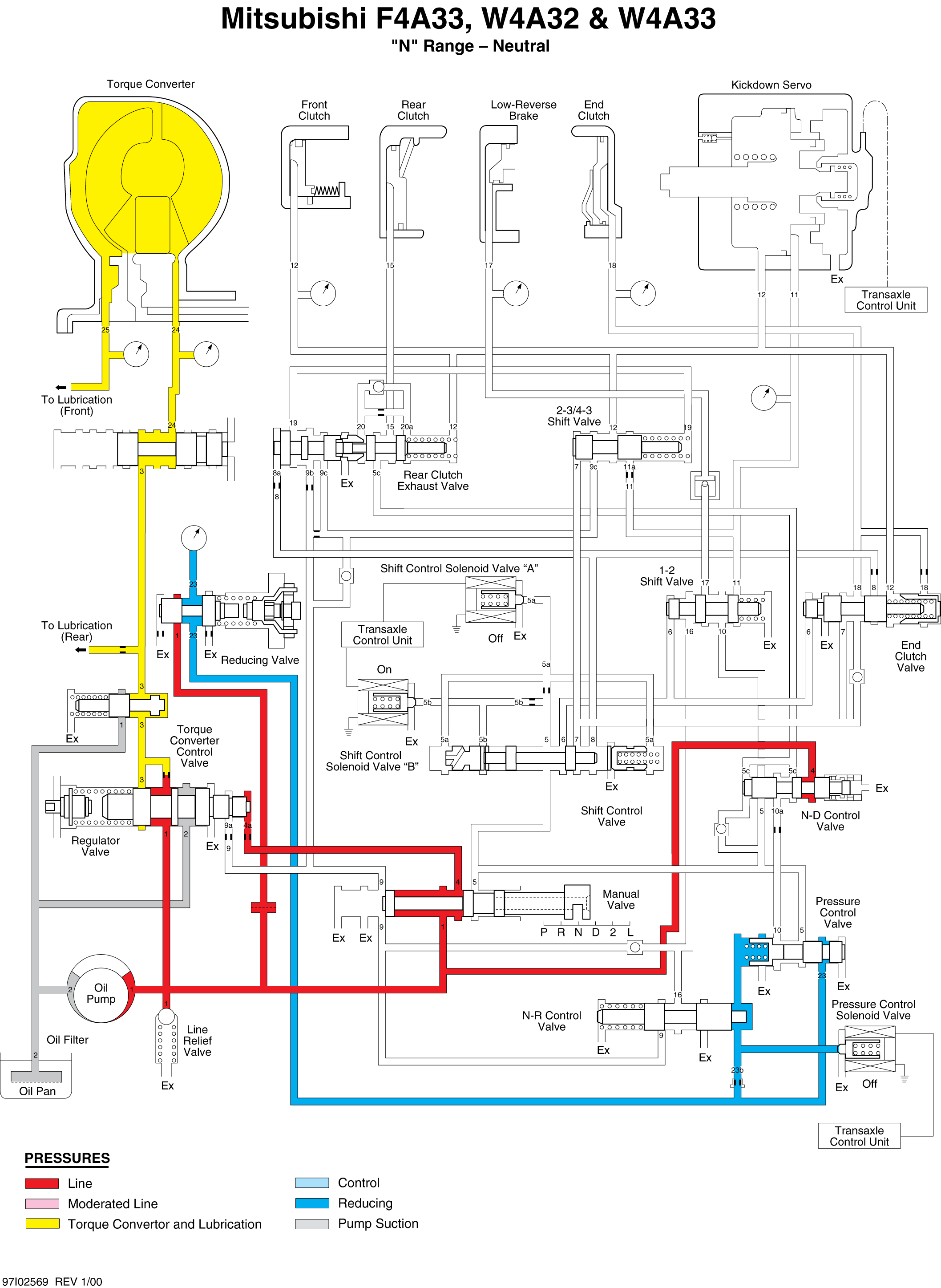

Fig 2: "N" Range - Neutral

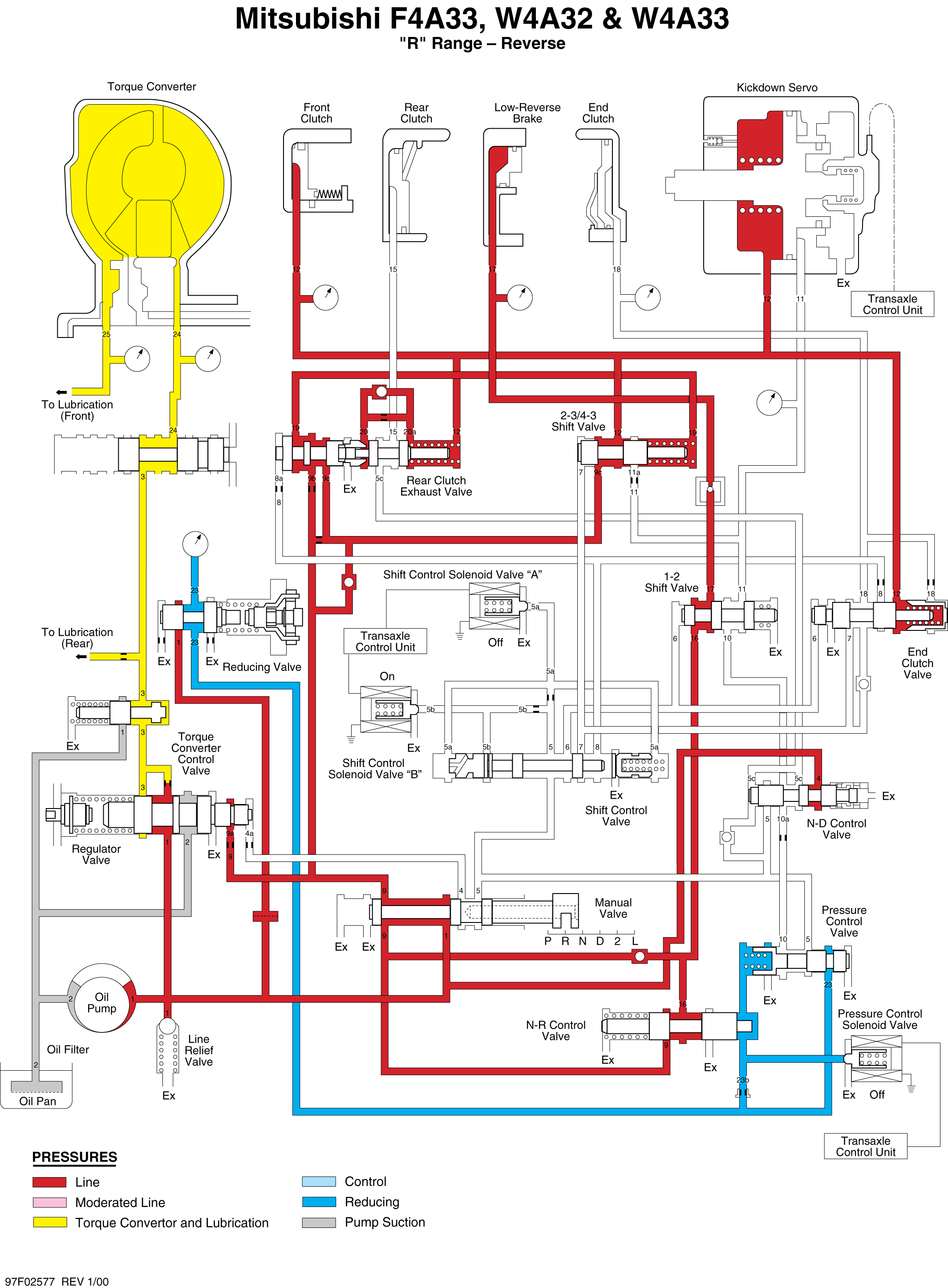

Fig 3: "R" Range - Reverse

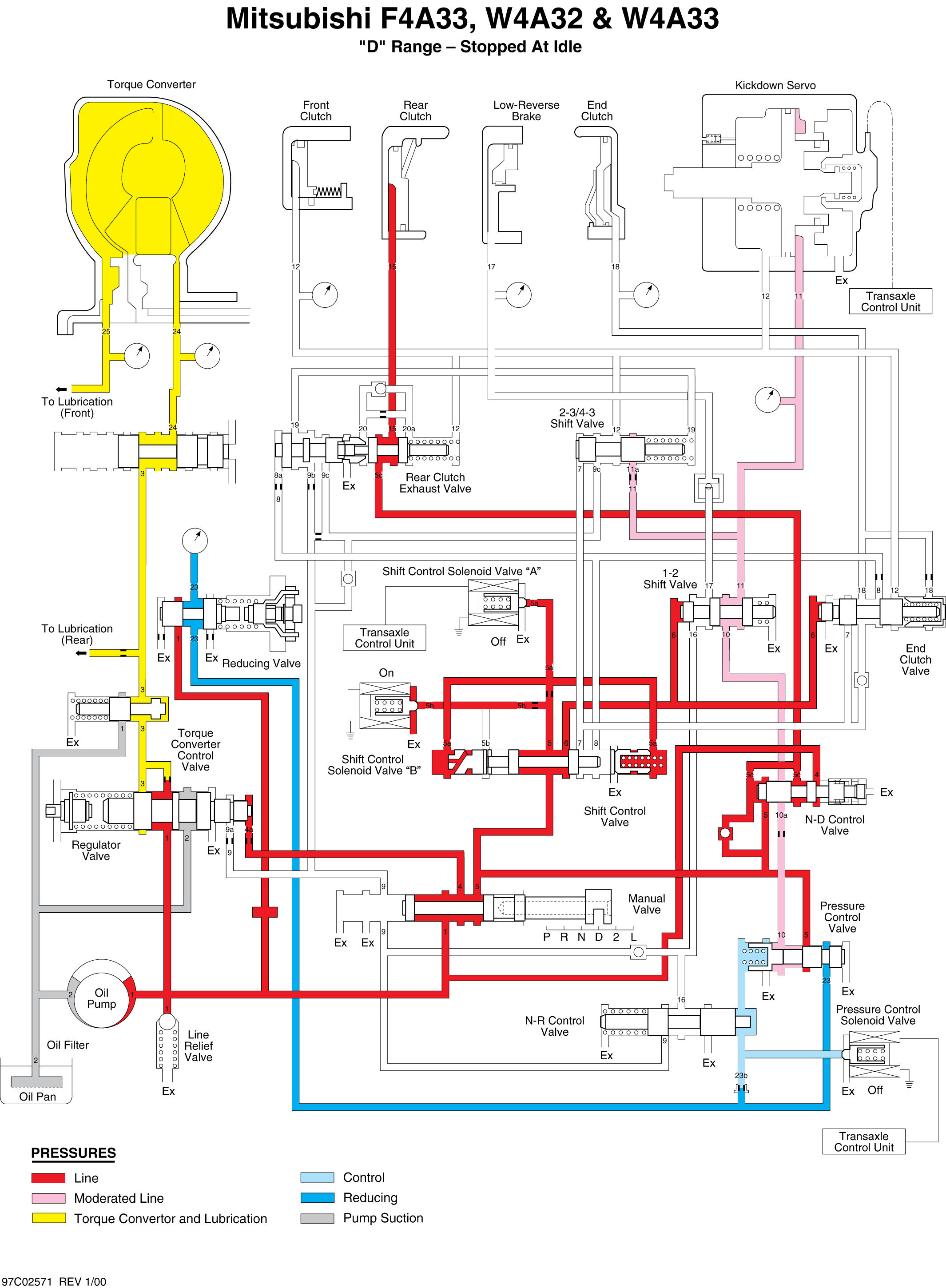

Fig 4: "D" Range - Stopped At Idle

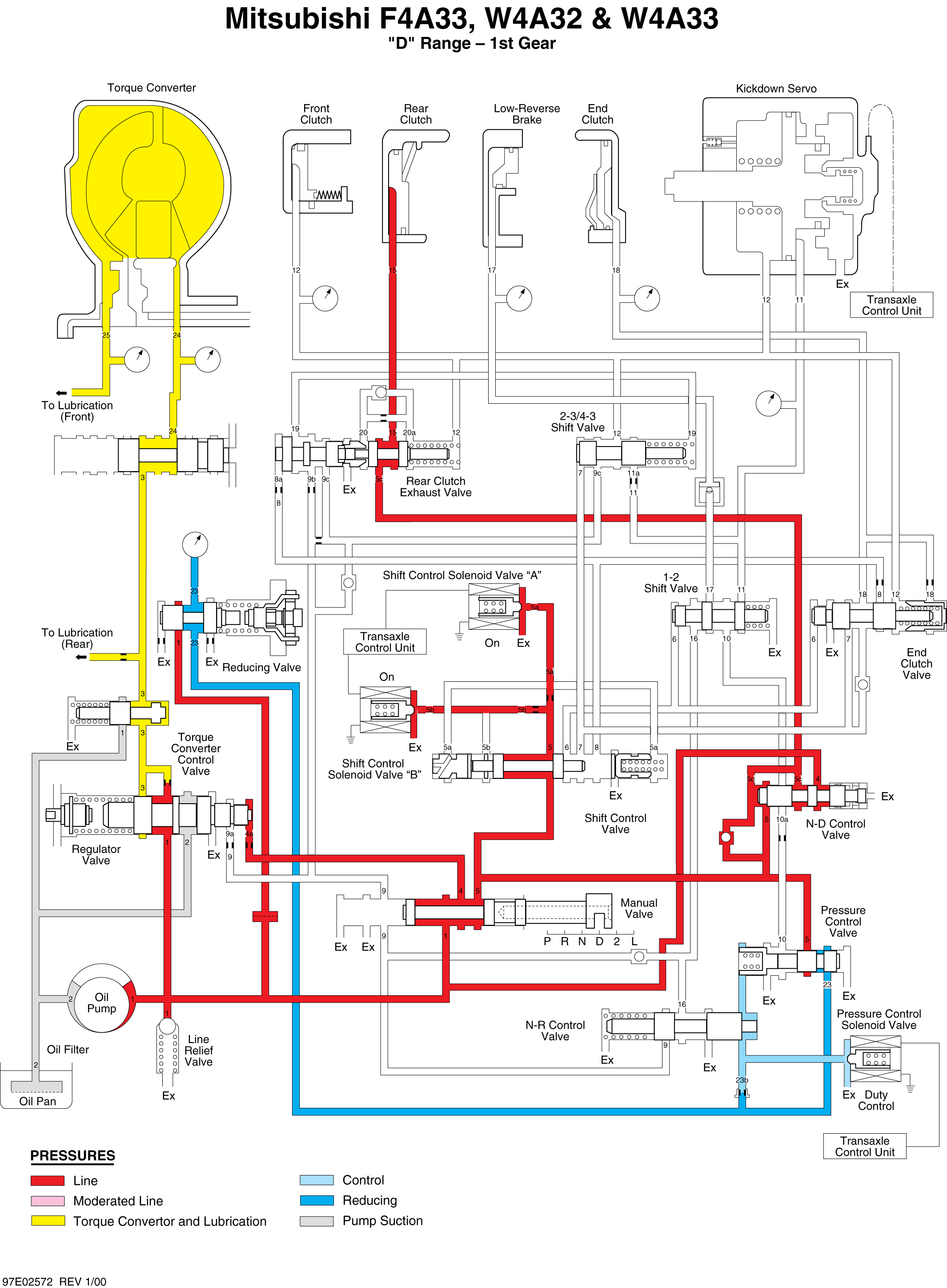

Fig 5: "D" Range - 1st Gear

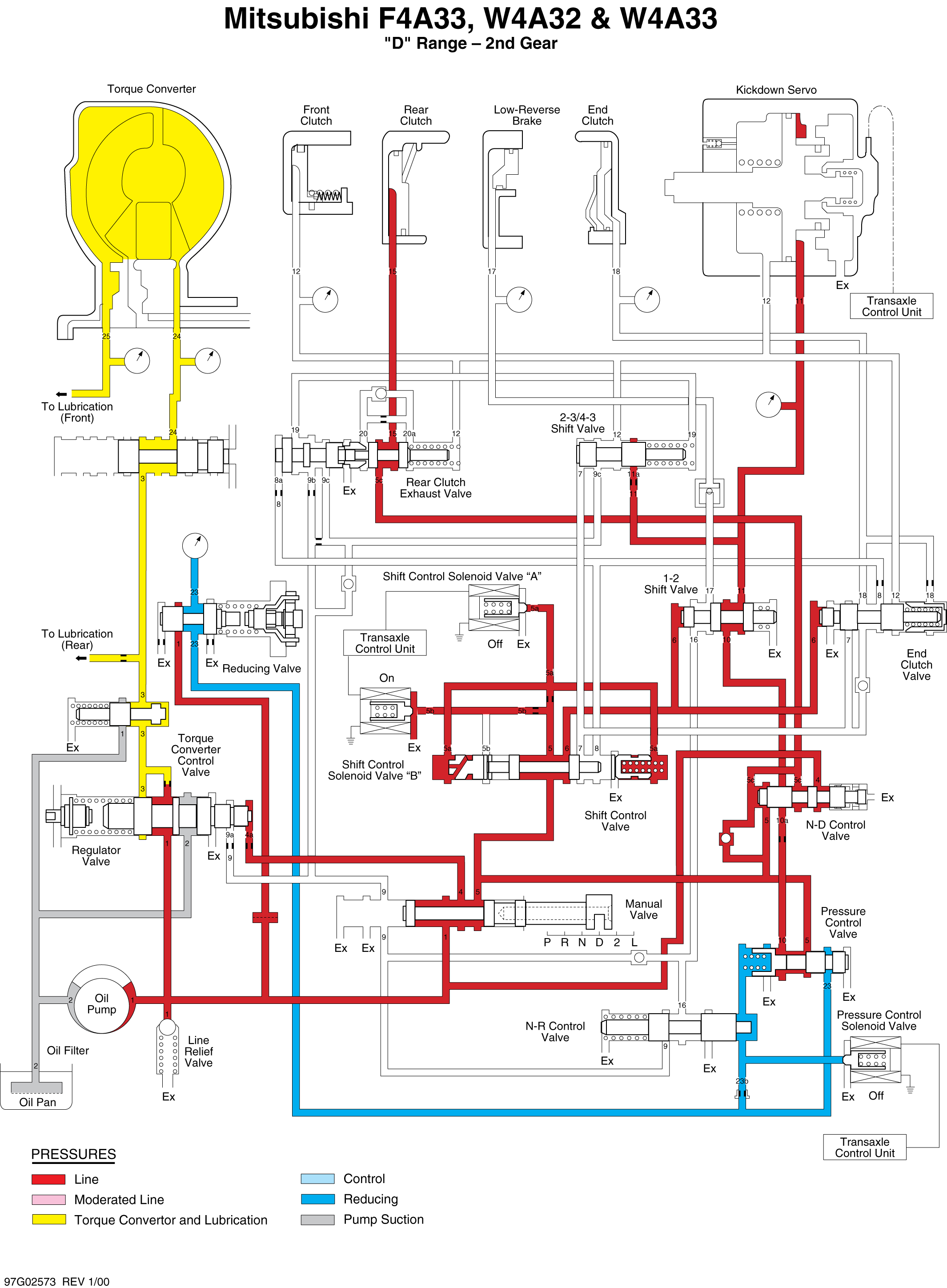

Fig 6: "D" Range - 2nd Gear

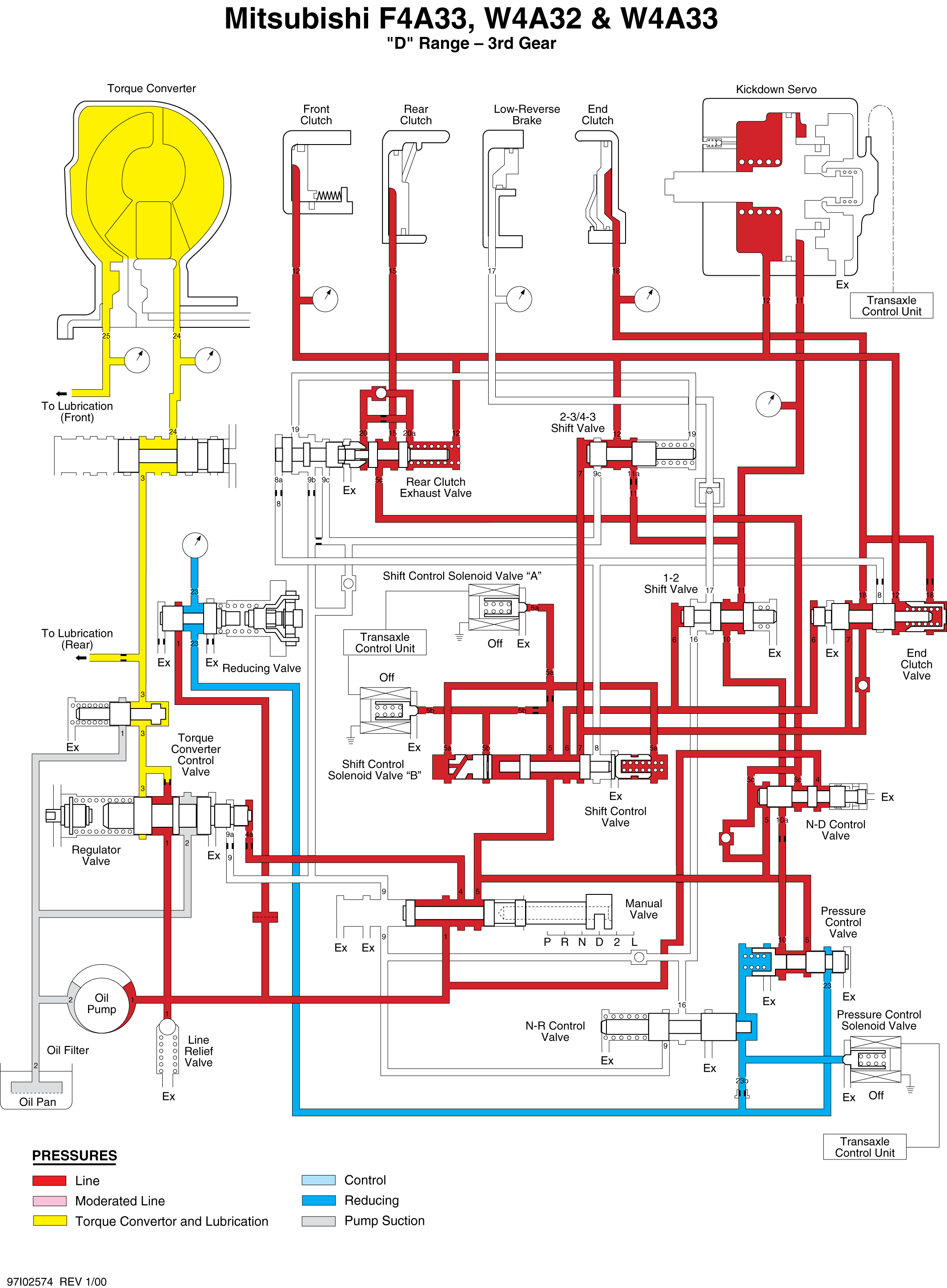

Fig 7: "D" Range - 3rd Gear

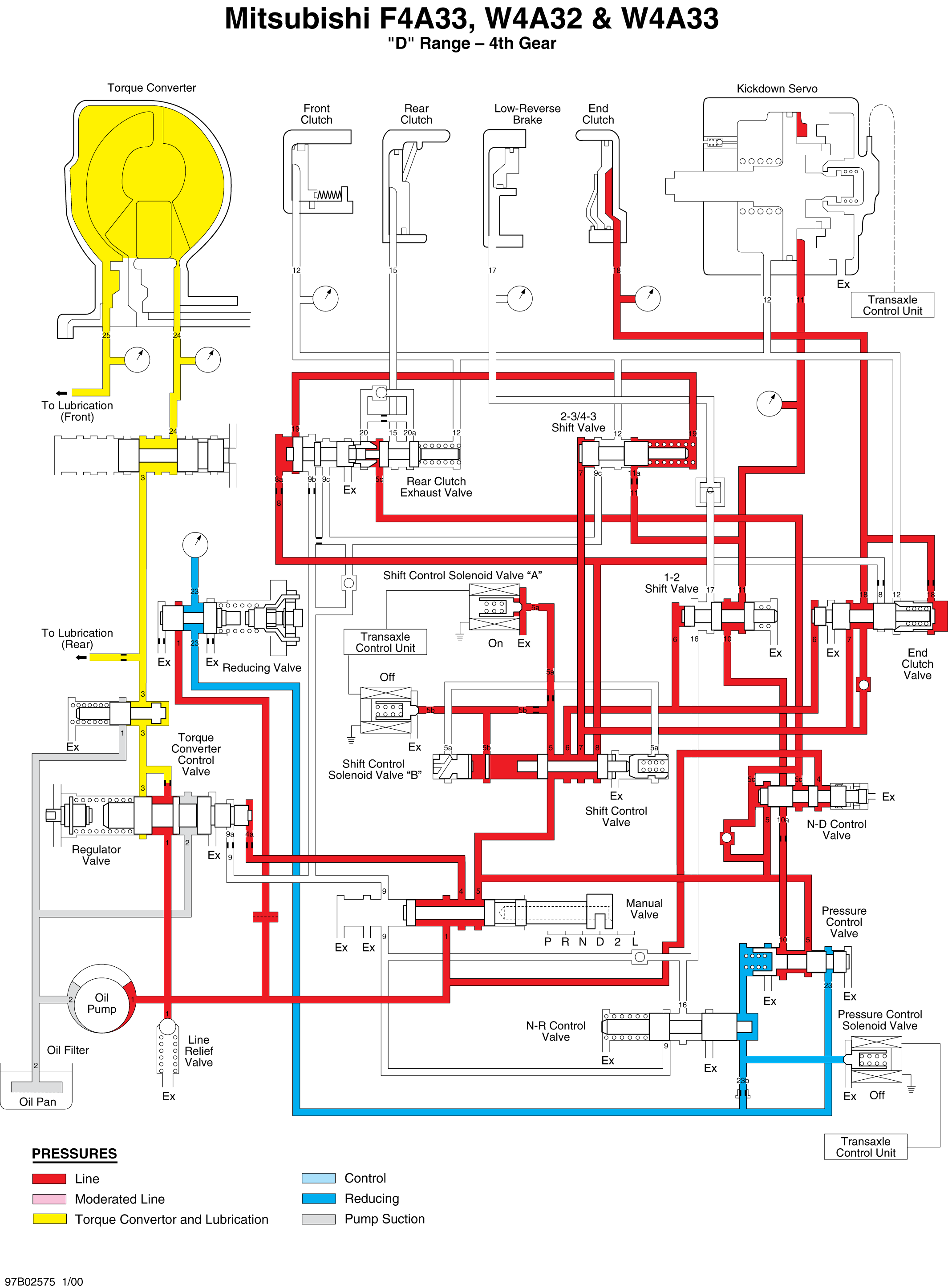

Fig 8: "D" Range - 4th Gear

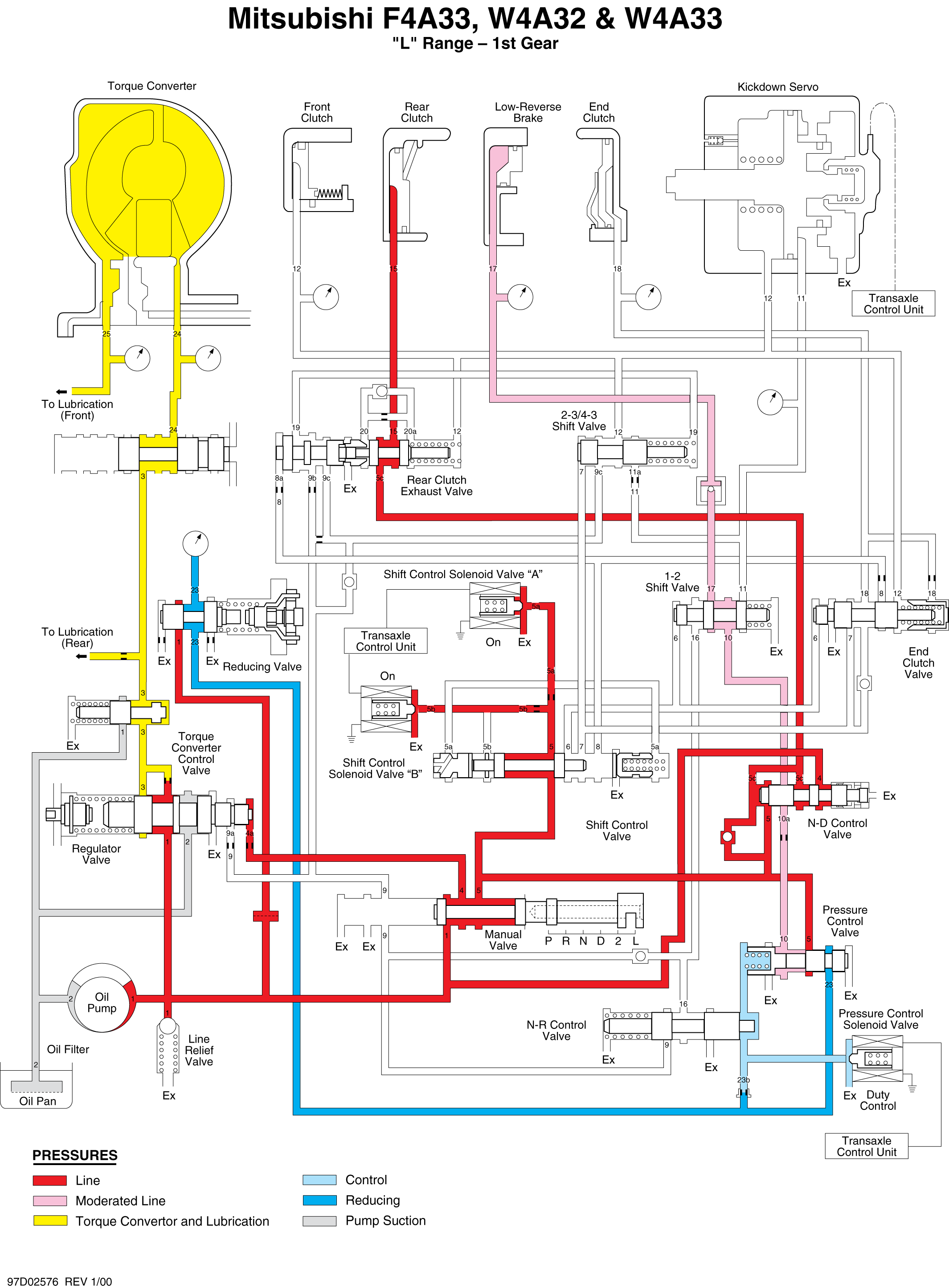

Fig 9: "L" Range - 1st Gear
