Data Link Connector (DLC)

WARNING: This page is about a different car, the 1995 Mitsubishi Eclipse, 1995 Eagle Talon, 1995 Dodge Avenger, and 1995 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

DLC is located under left side of dash. See Fig 1 . DLC is used to access SRS self-diagnostics through Mitsubishi Multi-Use Tester II (MUT-II) (MB991502).

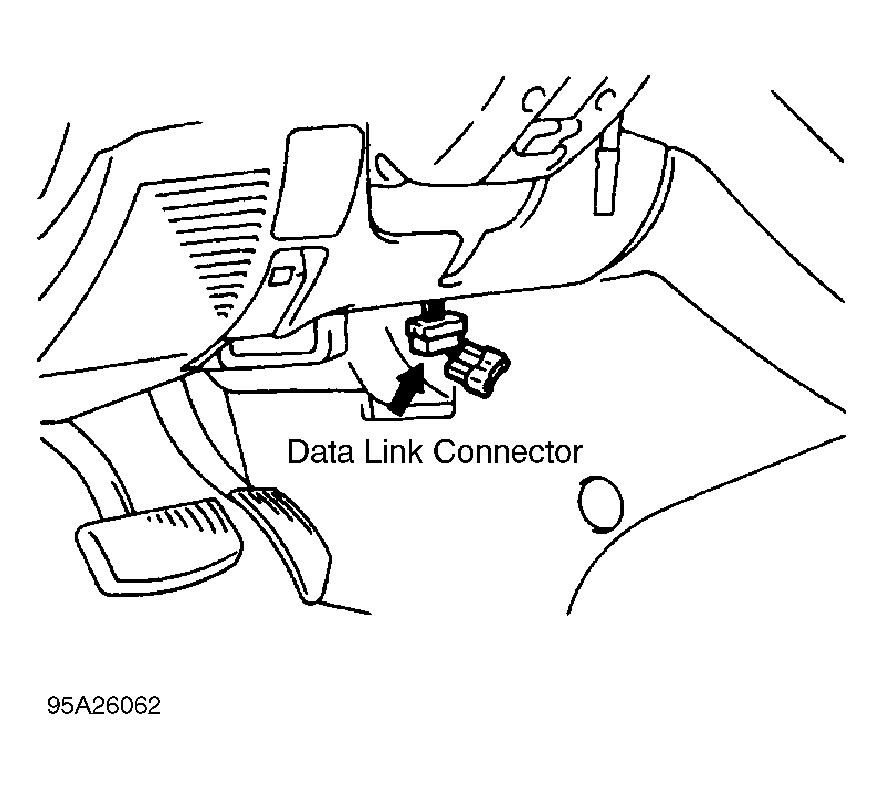

Fig 1: Locating Data Link Connector (DLC)
G95A26062Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
