Gauge Resistance Test

  1. Remove instrument cluster from instrument panel. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION.
  2. Check continuity between oil pressure gauge terminals. SeeFig 1 . See OIL PRESSURE GAUGE RESISTANCE SPECIFICATIONS  . If resistance is not within specification, replace oil pressure gauge.

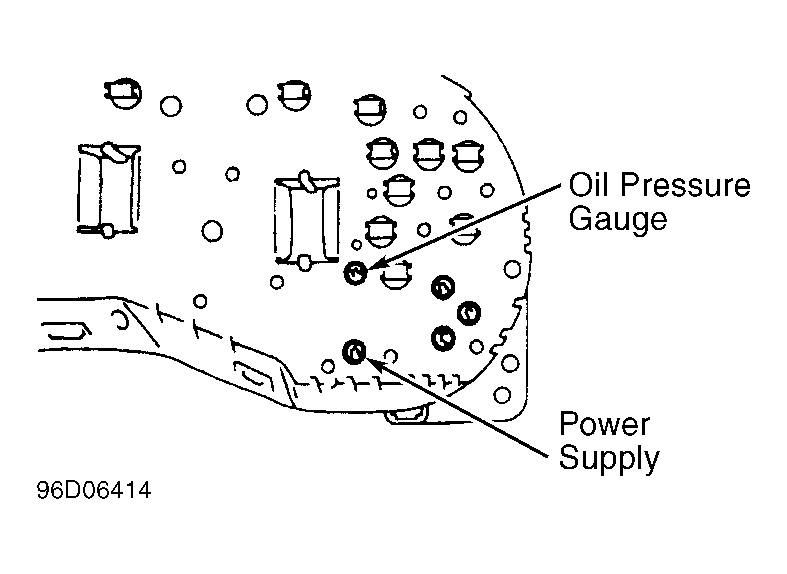

Fig 1: Oil Pressure Gauge Resistance Test Terminals
G96D06414Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
