Installation (1.8L & 2.0L)

To install, reverse removal procedure. Use new gaskets, fuel injector insulators and "O" rings. Adjust all control cables. Fill cooling system.

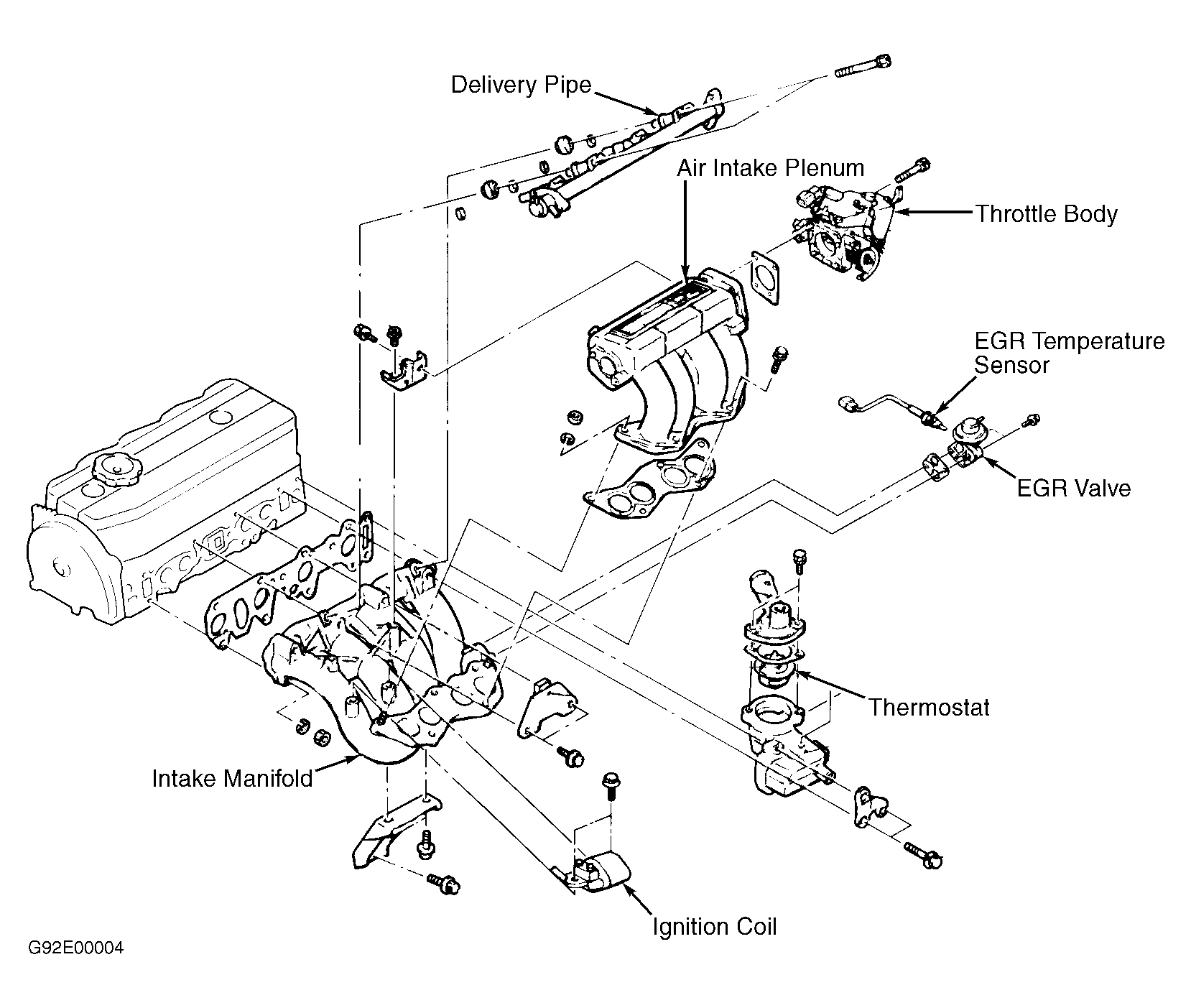

Fig 1: Exploded View Of Intake Manifold & Related Components
G92E00004Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
