Suspension - Rear (Fwd): Description

Rear suspension is an independent trailing arm type, consisting of an integral axle, suspension arms, shock absorbers, coil springs and stabilizer bar. See Fig 1. Torsion bar is inside axle beam and not removable.

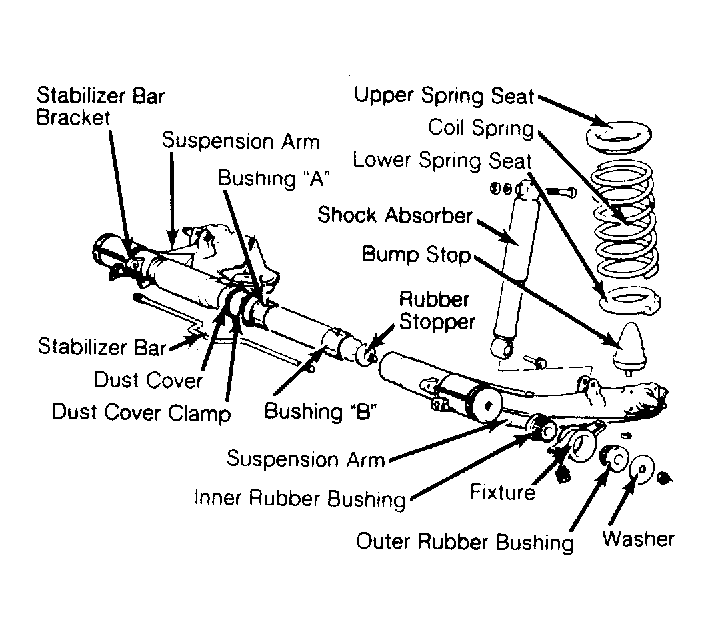

Fig 1: Exploded View Of Rear Suspension

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
