Trailing Arm: Disassembly

  1. Using Bushing Arbor (MB990849) and Base (MB990646), remove bushing. Remove connecting rod bolt and nut. Install Rod Remover/Installer (MB991254) on trailing arm.

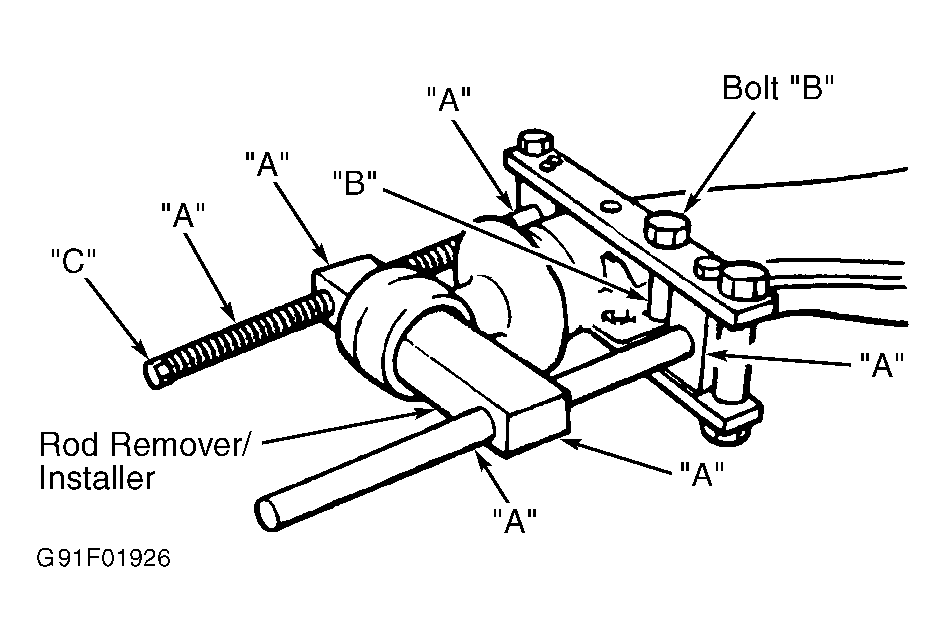

  2. Apply lubricant to sliding areas marked "A" in Fig. Fig 1. Install bolt "B" to trailing arm at point shown. Turn threaded shaft "C" on remover/installer to remove connecting rod.
Fig 1: Removing Connecting Rod From Front Trailing Arm (AWD)
G91F01926Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
