Eclipse AWD

Rear suspension system is an independent, double-wishbone type. System consists of upper and lower suspension arms, shock absorbers, coil springs and stabilizer bar. See Fig 2.

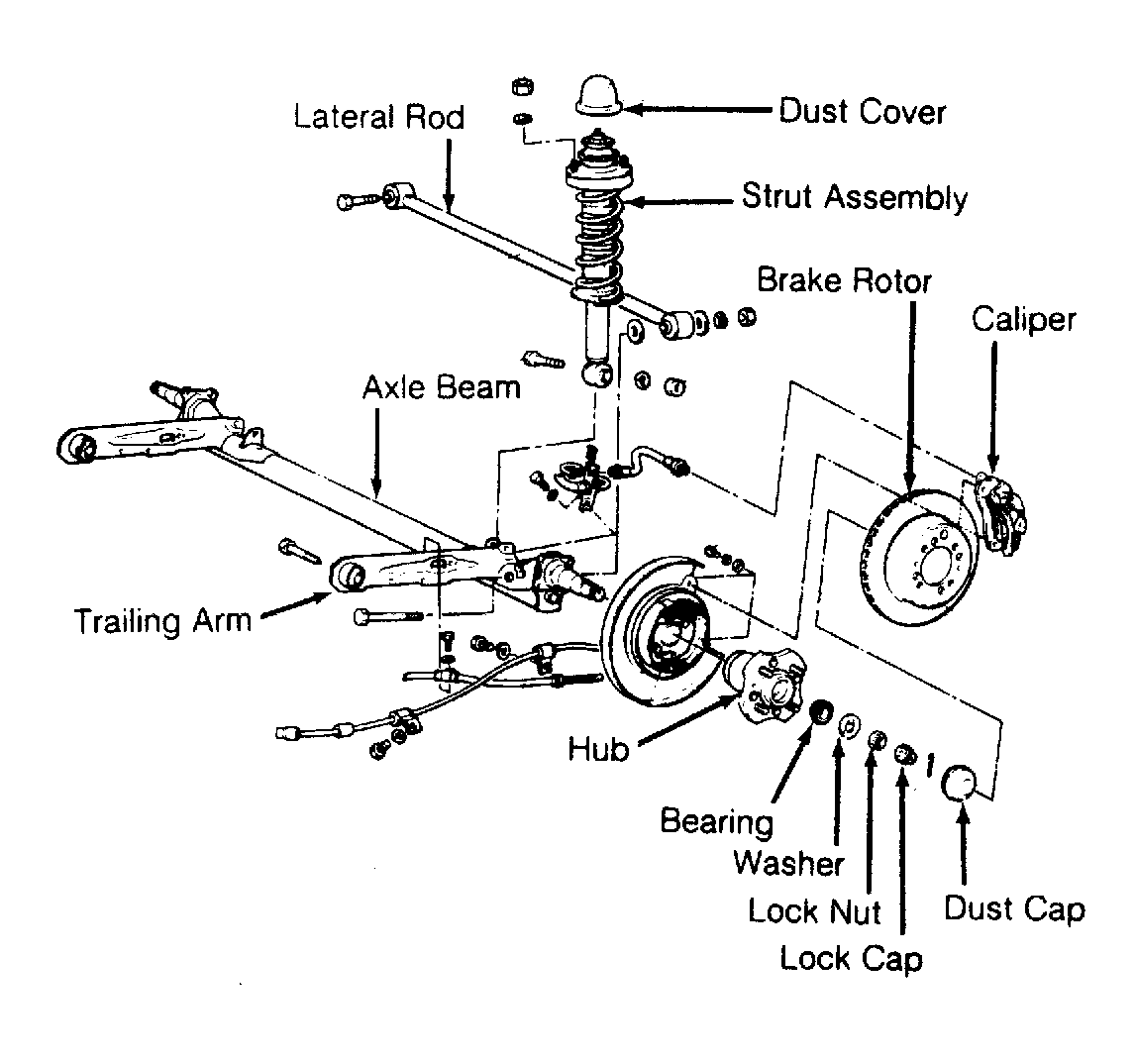

Fig 1: Exploded View Of Rear Suspension (FWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

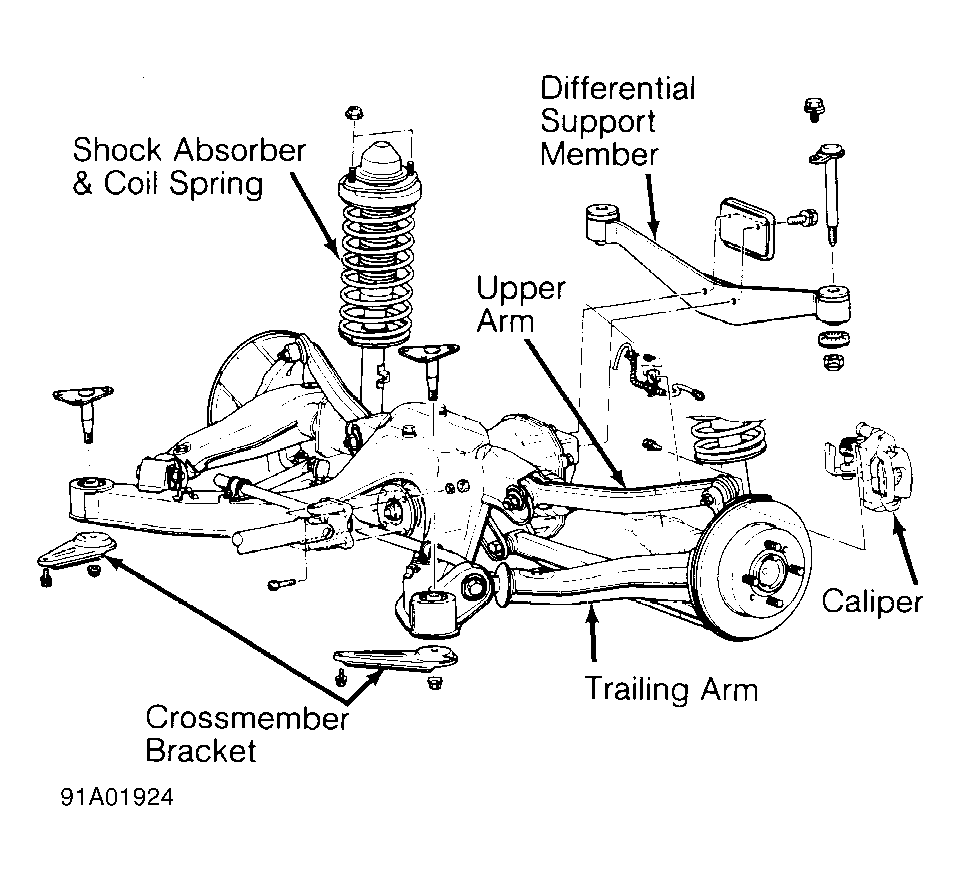

Fig 2: Exploded View Of Rear Suspension (AWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
