Removal (Colt, Colt 200, Eclipse FWD, Diamante, Galant FWD, Mirage, Stealth FWD, Summit & 3000GT)

On all models except Eclipse, remove trunk side trim. On Eclipse FWD, remove hole cover. On all models, raise and support vehicle. Remove wheel assembly.

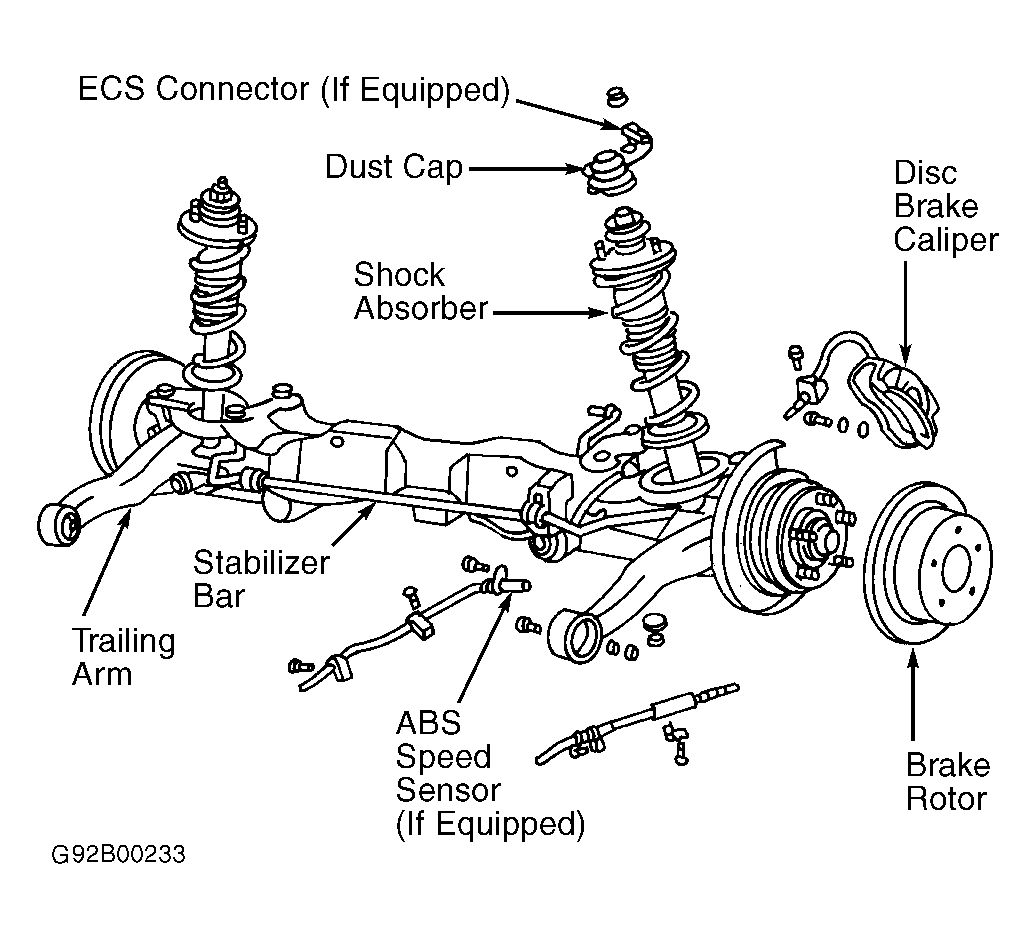

On models equipped with disc brakes, remove caliper and disc assembly. See Figure or Figure. On all models, remove cotter pin, lock cap, lock nut, washer and outer bearing (components vary between applications). Remove hub assembly or brake drum assembly (depending on application). Remove dust cover (if equipped).
Disconnect and remove rear speed sensor (if equipped). Disconnect parking brake cable from brake assembly and torsion axle and arm assembly. Remove brake assembly. Disconnect brake hose. Remove brake hose bracket from torsion axle and arm assembly.
On Galant with electronically controlled suspension, disconnect rear height sensor rod from lateral rod. Remove tube, "O" ring, dust cover, actuator and adapter. Cover open lines and fittings using vinyl tape.
On all other models, remove dust cap from top of shock assembly. See Figure or Figure. On all models, slightly raise torsion axle and arm assembly using a floor jack. Remove upper and lower shock absorber mounting nuts. Remove shock absorber. Disconnect lateral rod from body. Remove trailing arm bolts. Lower jack, and remove rear suspension assembly from vehicle.
