Continuity Check (Except Pickup & Ram-50)

1. Remove instrument cluster. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION. Check continuity between reed switch terminals No. 1 and 2. See Fig 1 -Fig 7 .
2. Ensure continuity pulses on and off 4 times per revolution of speedometer shaft connection. If continuity is not as specified, replace reed switch.

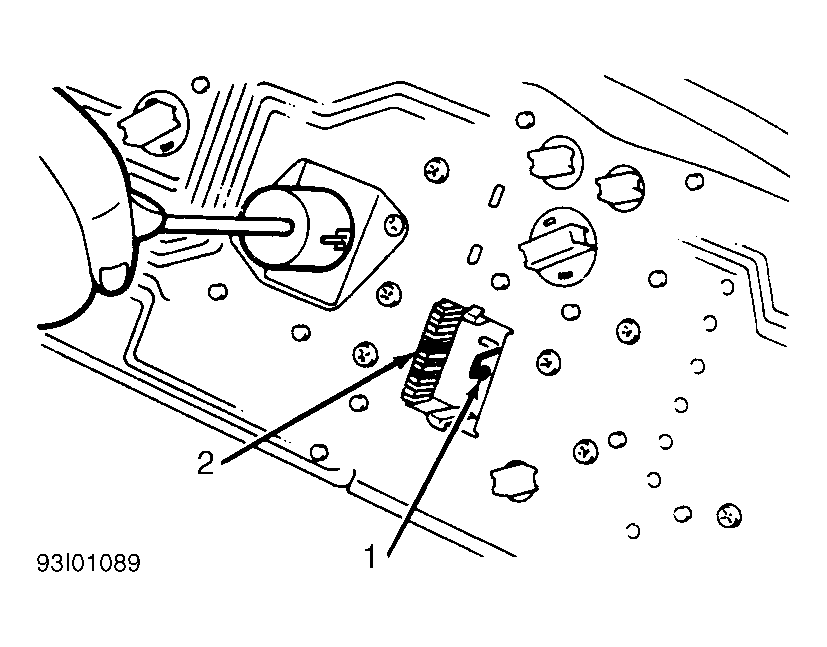

Fig 1: Reed Switch Test Terminal ID (Colt, Colt 200, Mirage & Summit)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

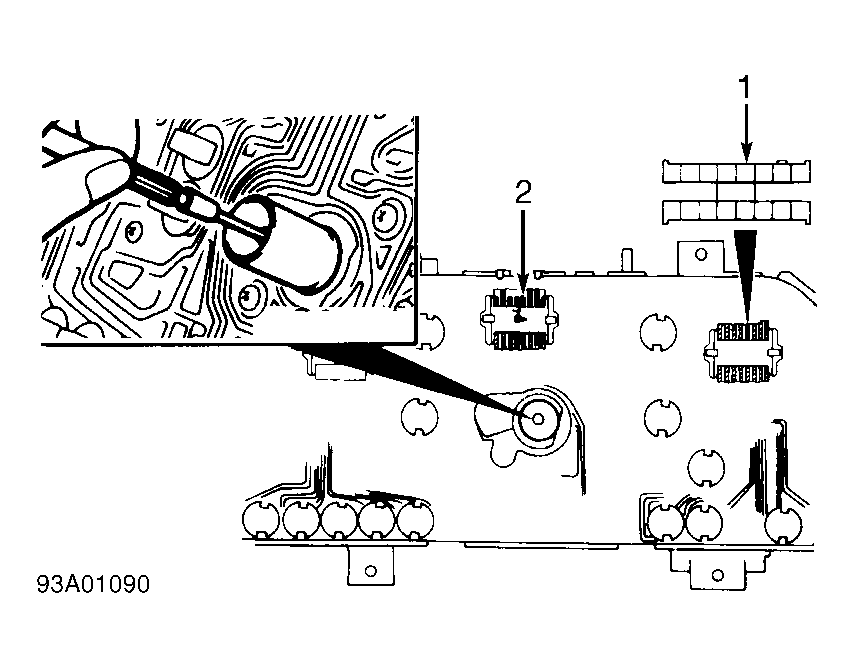

Fig 2: Reed Switch Test Terminal ID (Diamante)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

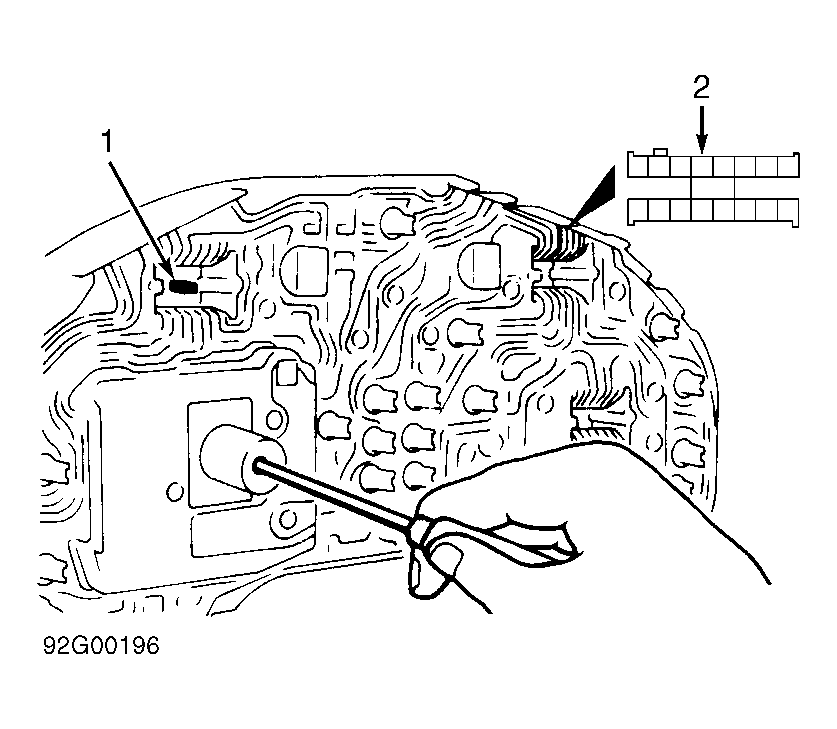

Fig 3: Reed Switch Test Terminal ID (Eclipse)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Reed Switch Test Terminal ID (Colt Vista, Expo/Expo LRV & Summit Wagon)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Reed Switch Test Terminal ID (Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

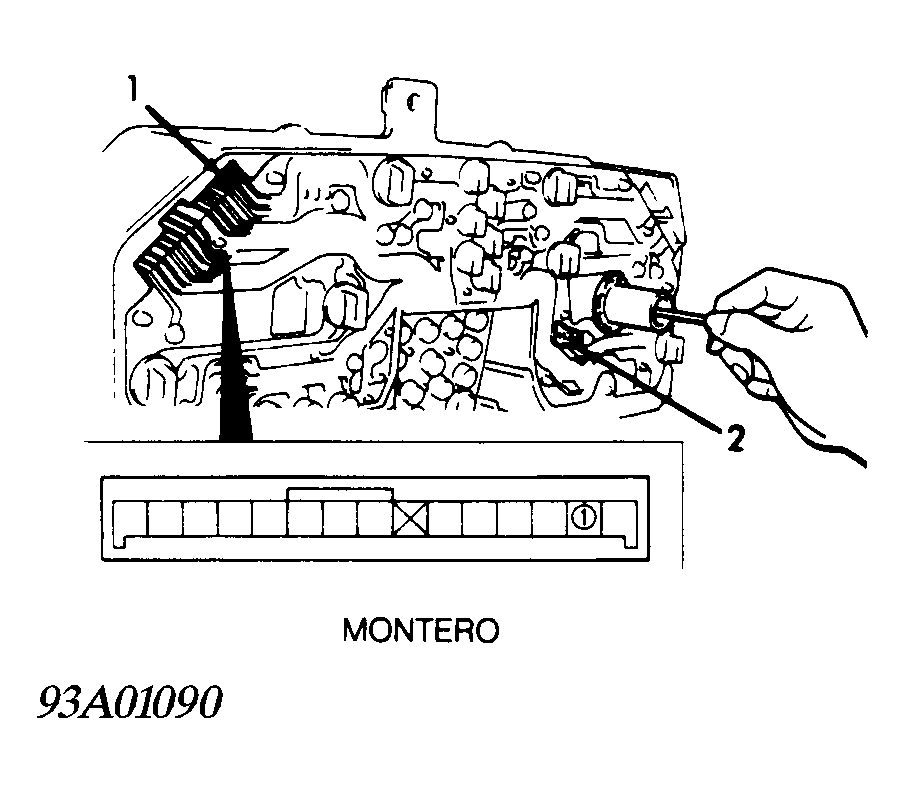

Fig 6: Reed Switch Test Terminal ID (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Reed Switch Test Terminal ID (Stealth & 3000GT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
