Removal & Installation (Montero)
- Disconnect negative battery cable. Remove instrument cluster cover plug. Remove cluster cover. Remove screws from instrument cluster.

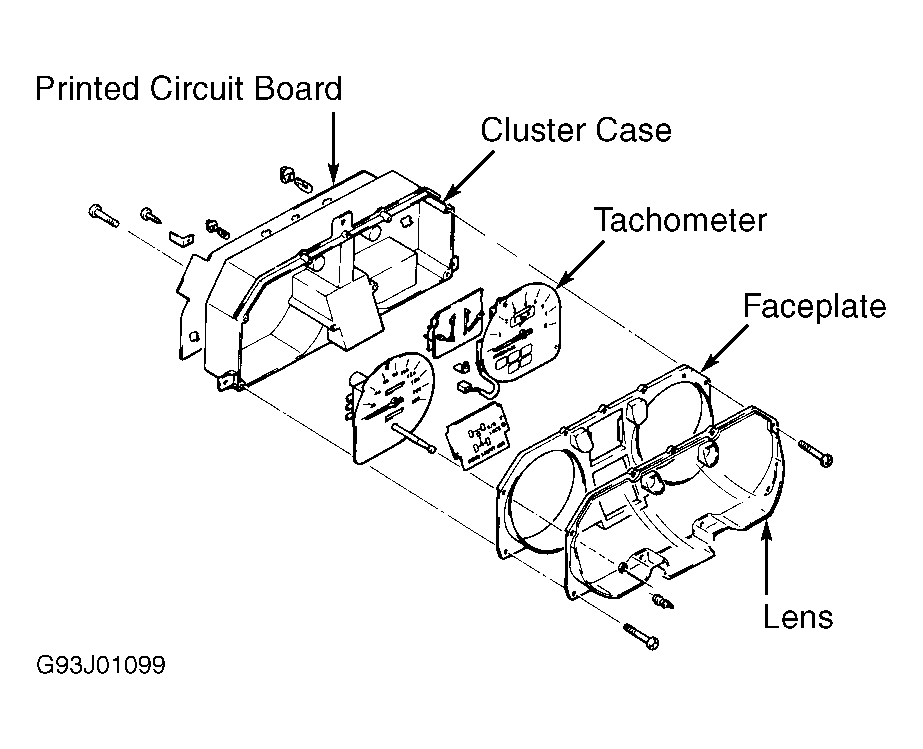

- Disconnect speedometer cable from back of instrument cluster. Disconnect all connectors attaching cluster. Remove cluster. To install, reverse removal procedure. See Fig 1 .
