Removal & Installation (Diamante)

Disconnect negative battery cable. Remove gauge bezel. Remove screws holding gauge assembly in place. Remove instrument cluster. Remove trip meter reset button. See Fig 1 . Remove gauge glass and plate. Remove gauges as necessary. To install, reverse removal procedure.

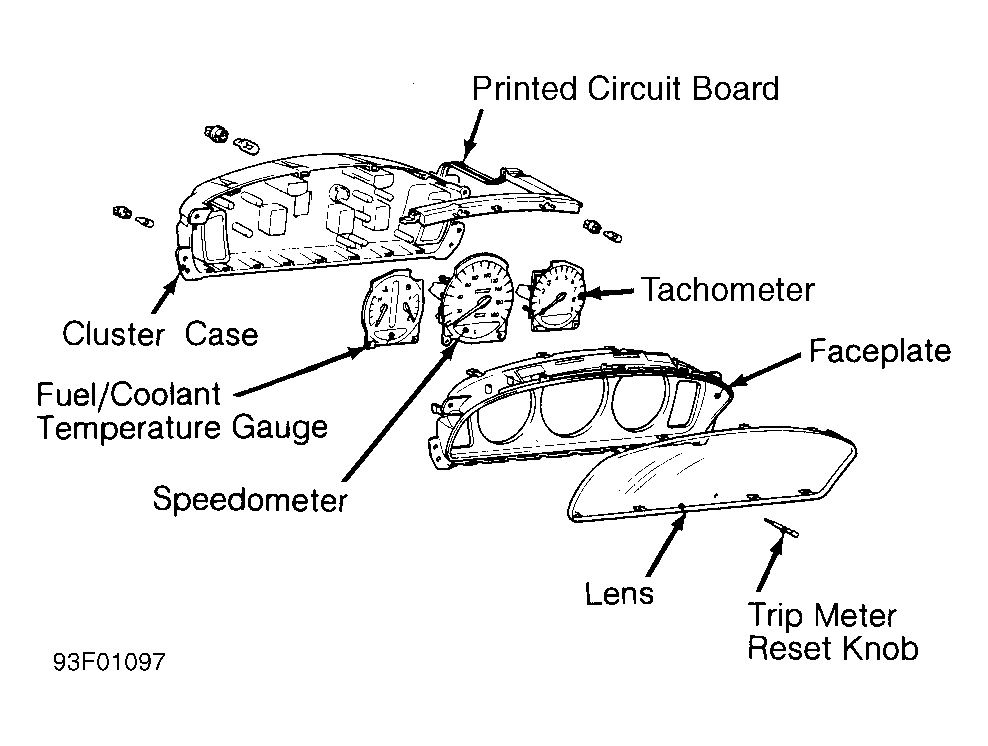

Fig 1: Instrument Cluster Components (Diamante: W/ Tach Shown; W/O Tach Is Similar)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
