Removal & Installation (Colt, Colt 200, Mirage & Summit)

1. Disconnect negative battery cable. Remove center panel, knee protector, gauge bezel, combination meter and adapter. Remove bulb socket, bulb, gauge glass and speedometer. See Fig 1 or Fig 2 .
2. Remove gauge cluster (or tachometer and gauge), left indicator lens and turn and high beam indicator lens. Remove A/T position indicator light, lens, printed circuit board and meter case. To install, reverse removal procedure.

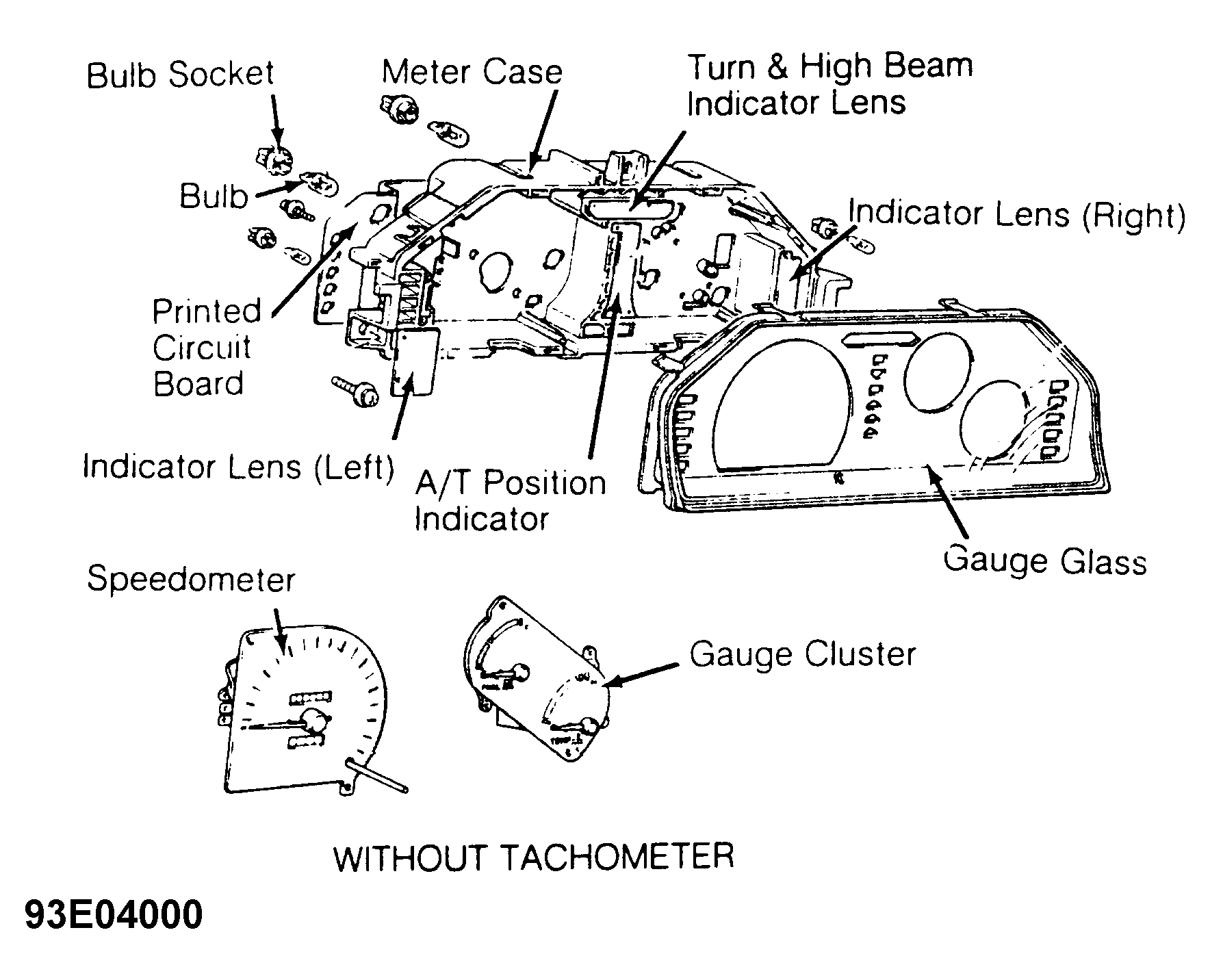

Fig 1: Instrument Cluster Component ID (Colt, Colt 200, Mirage & Summit) (W/O Tach)

Courtesy of CHRYSLER MOTORS

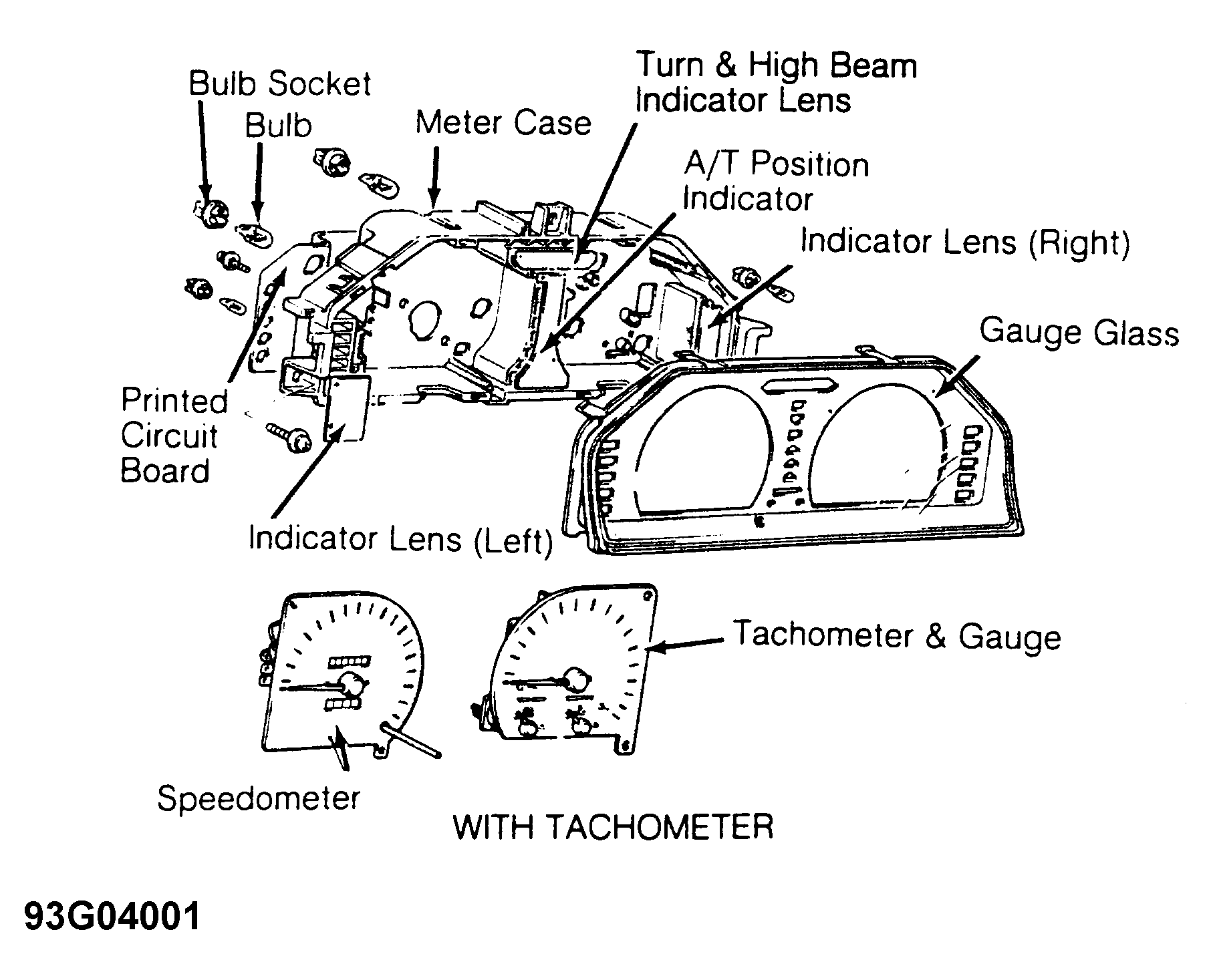

Fig 2: Instrument Cluster Component ID (Colt, Colt 200, Mirage & Summit) (W/ Tach)

Courtesy of CHRYSLER MOTORS
