Rocker Arm Shaft Assembly (1.5L)

  1. Note location of all components for reassembly reference. Remove bolts from shafts, and separate components. On Precis, note lengths of springs. Intake rocker arm springs are longer than exhaust rocker arm springs. On all others, springs are only on intake rocker arm shaft. On all models, inspect components for damage and wear.

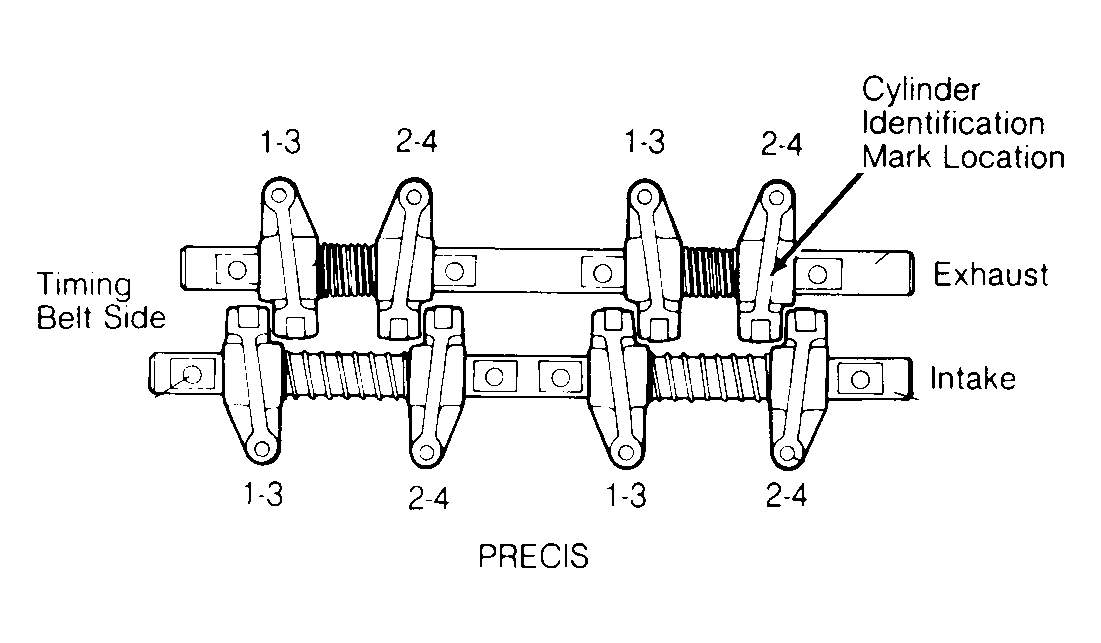

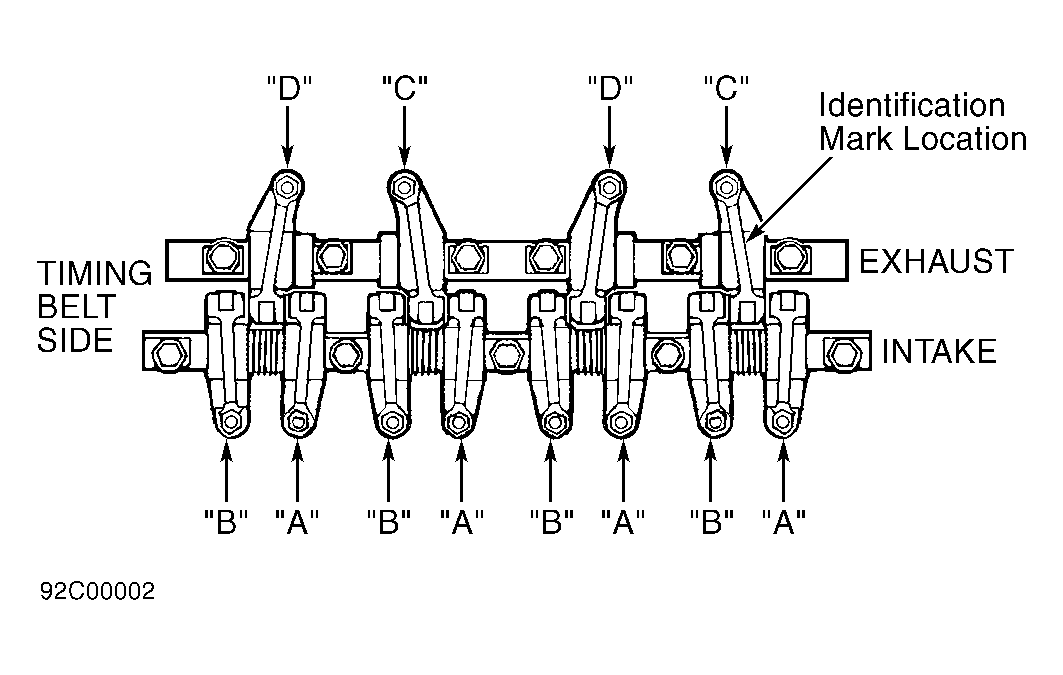

  2. To install components, reverse removal procedure. Install components into original locations. On Precis, rocker arms are marked "1" or "3" for odd cylinders and "2" or "4" for even cylinders. See Figure and Figure . On all others, rocker arms are marked "A" to "D" for location. See Fig 1. Ensure large chamfer on rocker arm bore is facing timing belt side of engine.
  3. Tighten rocker arm assembly bolts to specification. See TORQUE SPECIFICATIONS . Adjust valve clearance. See VALVE CLEARANCE ADJUSTMENT  under ADJUSTMENTS.

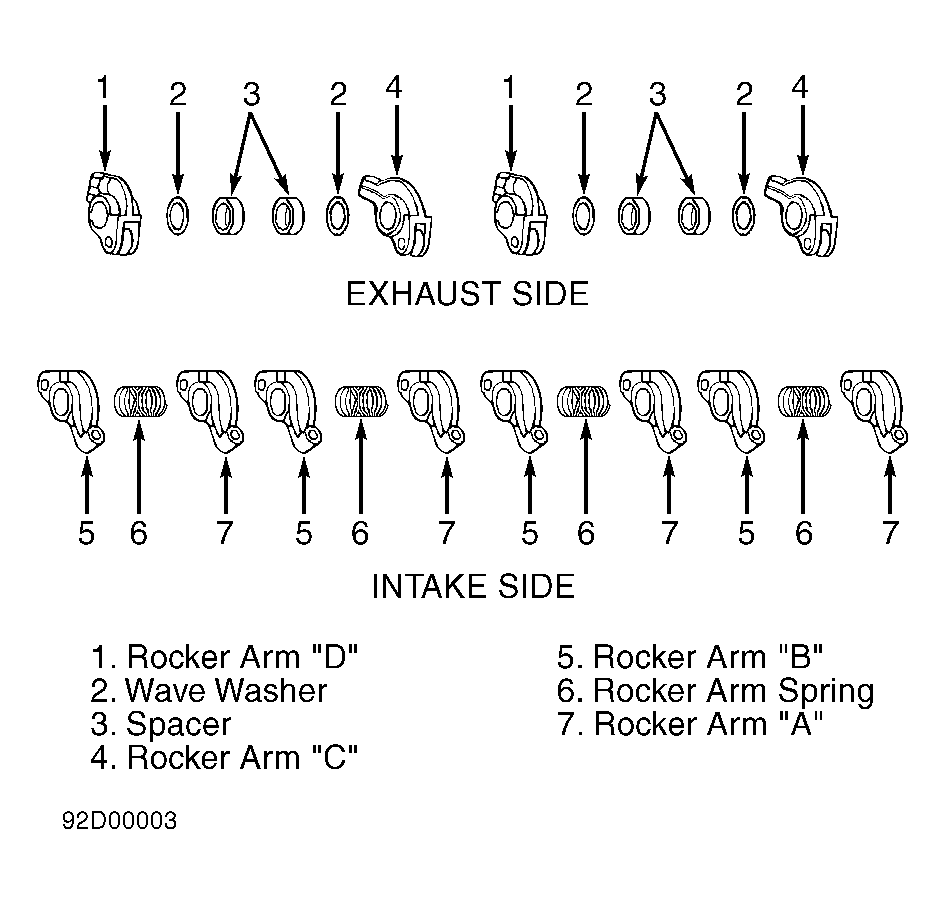

Fig 1: Identifying Rocker Arm Components (1.5L Except Precis)
G92D00003Courtesy of CHRYSLER MOTORS.
