Removal & Installation - Pickup

Disconnect negative battery cable. Remove heater fan switch knob, heater control knobs and radio knobs. Remove instrument cluster bezel. Remove mounting screws from 4 corners of cluster.
Disconnect speedometer cable and connectors from back of cluster. Remove cluster assembly. For pickups equipped with tachometer See Fig 1 . For pickups equipped without tachometer See Fig 2 . To install, reverse removal procedure.

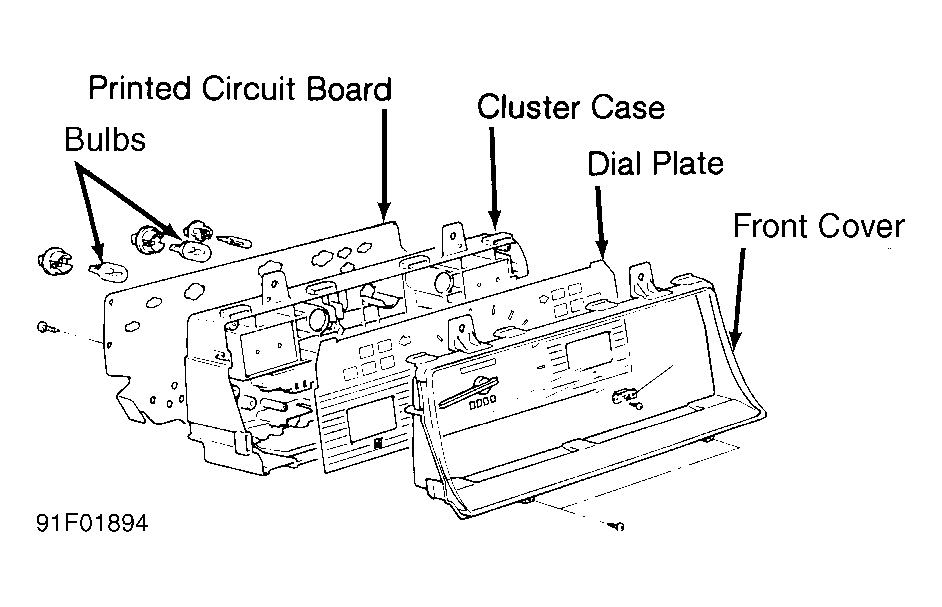

Fig 1: Instrument Cluster Components W/Tachometer Id (P/U)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Instrument Cluster Components W/O Tachometer Id (P/U)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
