Resistance Test (Eclipse Turbo)

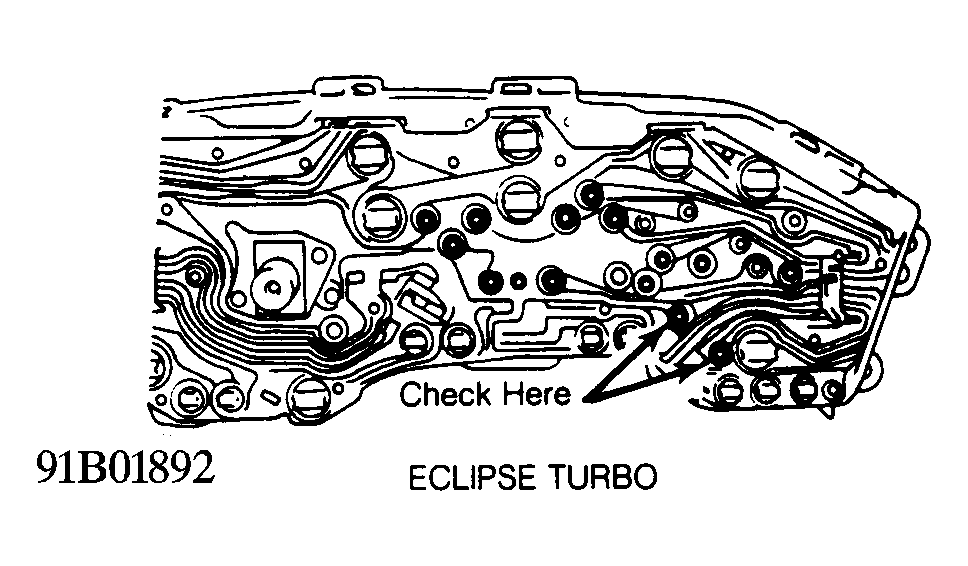

Remove instrument cluster from instrument panel. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. With an ohmmeter, measure resistance between boost pressure gauge terminals on back of instrument cluster. See Fig 1 . Resistance should be 72 ohms. If resistance is not to specification, replace gauge.
