Installation (1.6L)

To install, reverse removal procedure using new gaskets and fuel injector grommets and "O" rings. Adjust all control cables and fill cooling system.

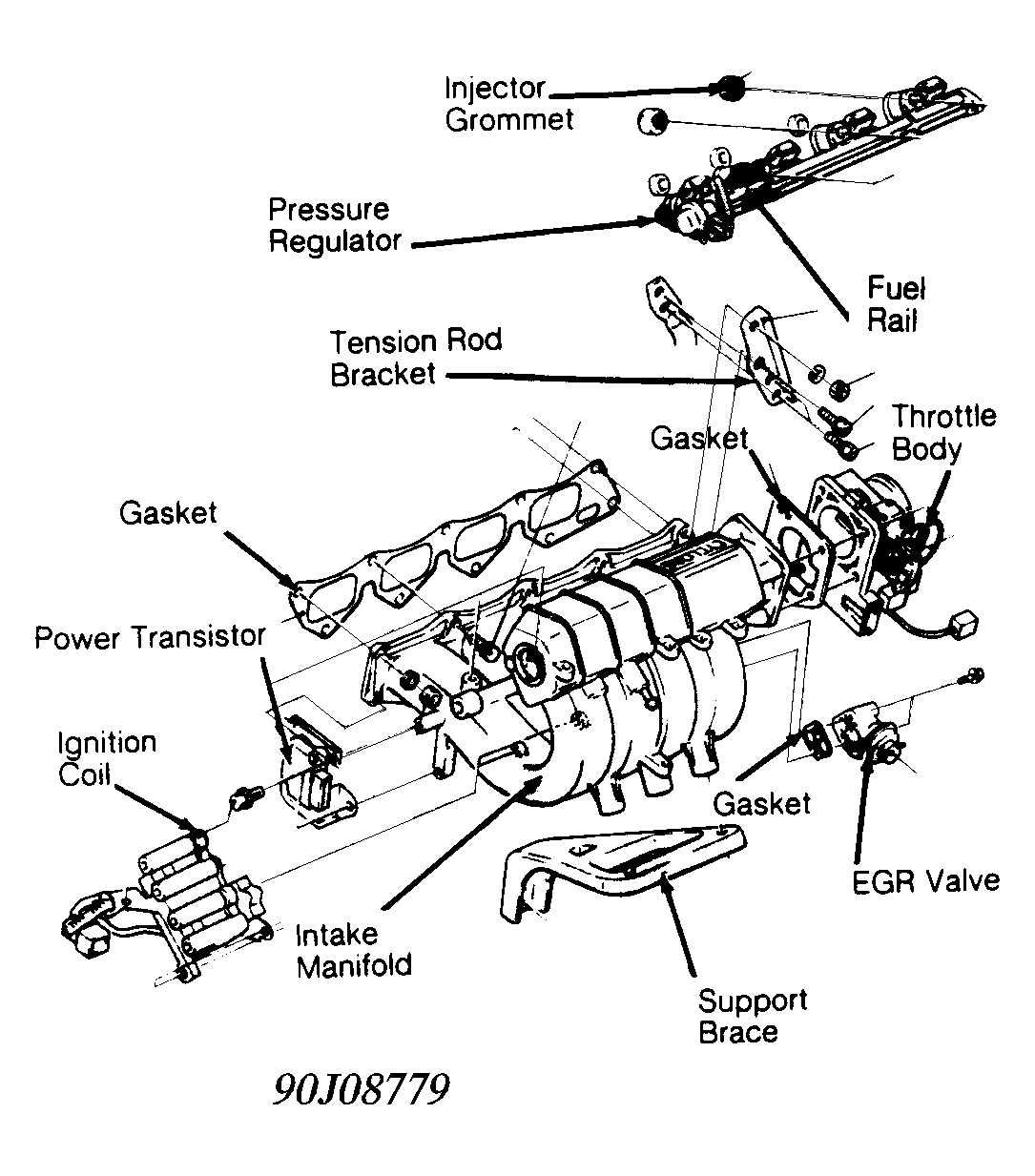

Fig 1: Exploded View Of 1.6L Intake Manifold
G90J08779Courtesy of CHRYSLER MOTORS.
