Reassembly & Installation

  1. Coat all components with engine oil and assemble gears in housing in original location. Ensure timing marks are aligned on gears on 1.6L applications. Install rear cover.
  2. On 1.5L applications, install front cover using new gasket. Install proper length bolts and tighten to specification. See Fig 1. Coat outer surface of seal guide and install seal guide over end of crankshaft. Use Seal Guide (MD998285-01) for Precis models or (MD998305) for Mirage.
  3. Slide seal into front cover. Using Seal Installer (MD998375-01) for Precis models or (MD998304) for Mirage, install front seal in front cover. To install remaining components, reverse removal procedure.
  4. On 1.6L applications, use Seal Installer (MD998375) and install seal in front cover. Coat outer surface of Seal Guide (MD998285) with oil and install over end of crankshaft. Install front cover using new gasket. Install oil filter bracket. Install proper length bolts and tighten to specification. See Fig 2.
  5. Using plug cap wrench, install plug cap and tighten to specification. To install remaining components, reverse removal procedure.
Fig 1: Front Cover Bolt Installation (1.5L)
G90H08801Courtesy of CHRYSLER MOTORS.

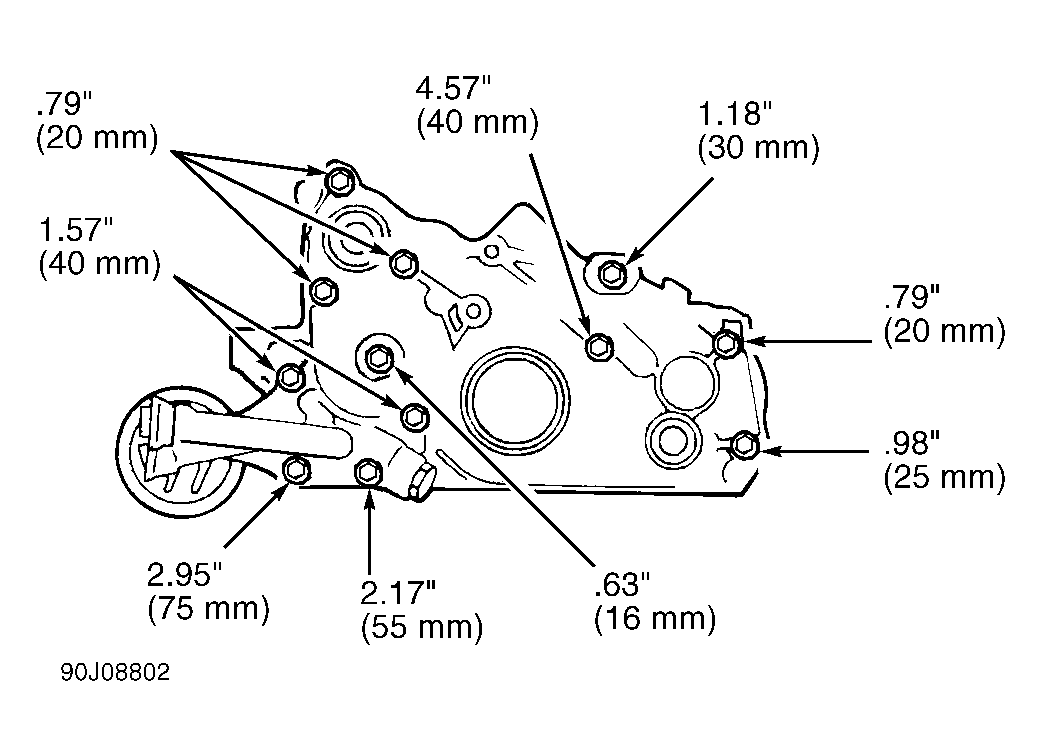

Fig 2: Front Cover Bolt Installation (1.6L)
G90J08802Courtesy of CHRYSLER MOTORS.
