Intake Manifold: Installation

To install, reverse removal procedure using new gaskets and fuel injector grommets and "O" rings. Adjust all control cables and fill cooling system.



To install, reverse removal procedure using new gaskets and fuel injector grommets and "O" rings. Adjust all control cables and fill cooling system.



To install, reverse removal procedure using new gaskets. Adjust all control cables and fill cooling system.

Fig 1: Exploded View Of Pickup Intake Manifold
G90I08806Courtesy of CHRYSLER MOTORS.


To install, reverse removal procedure using new gaskets and fuel injector grommets and "O" rings. Adjust all control cables and fill cooling system.

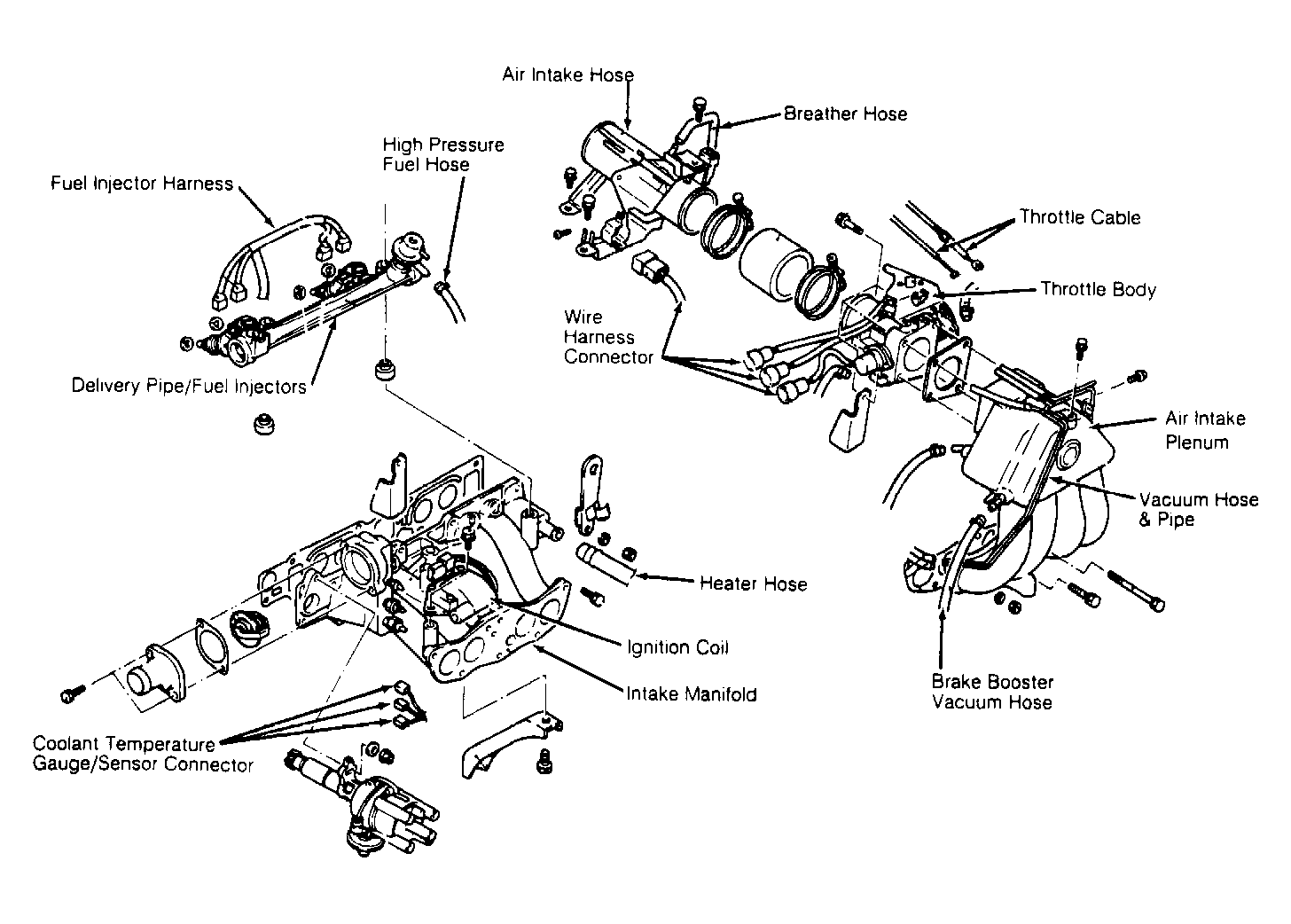

Fig 1: Exploded View Of Van/Wagon Intake Manifold & Related Components
G90A08807Courtesy of CHRYSLER MOTORS.
