Removal & Installation: Engine: Notes

NOTE: Tag all hoses and wiring for reinstallation. Plug all lines to prevent contamination or fluid spillage.

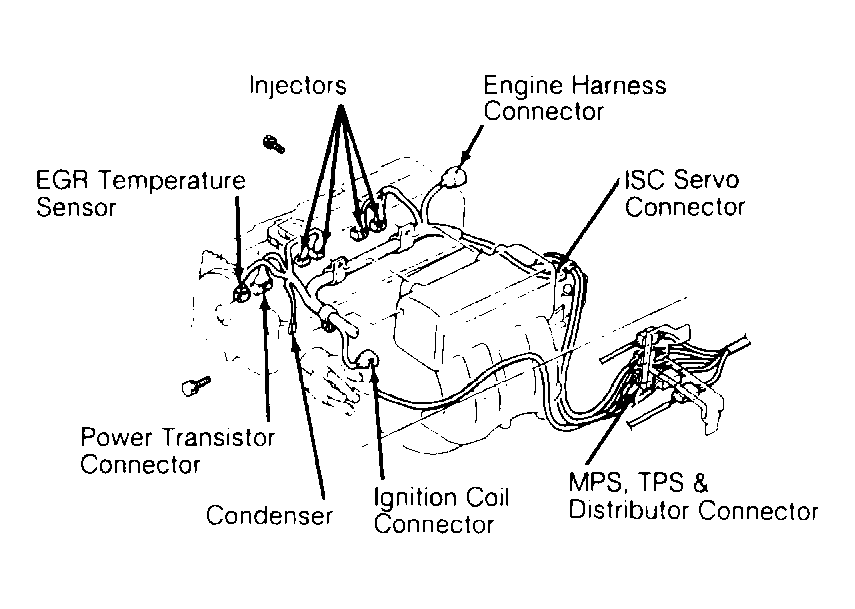

Fig 1: Typical Connector Location
G90B08803Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

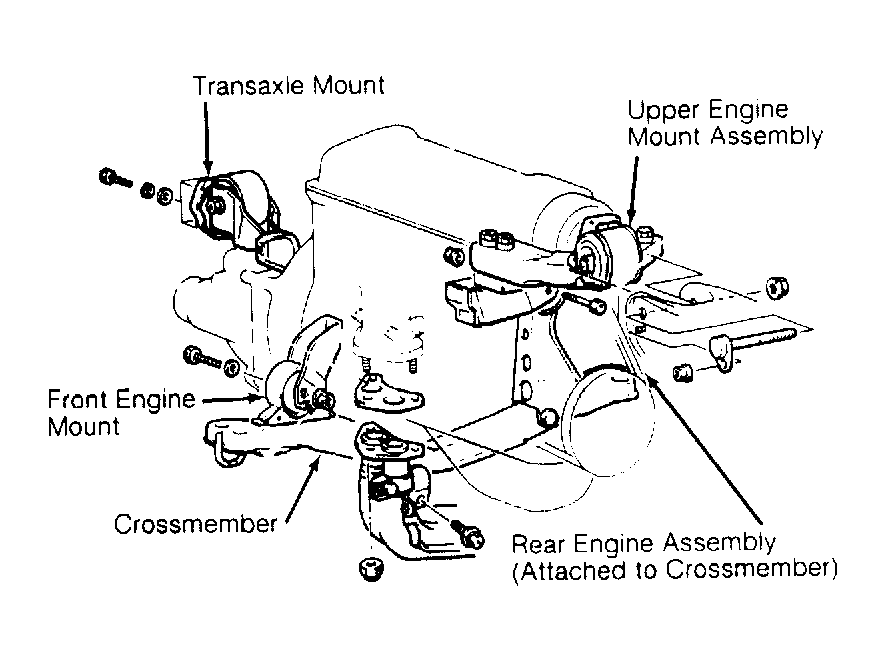

Fig 2: Typical Engine/Transaxle Mounting Arrangement
G90D08804Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
