Disassembly (Galant)

Disconnect brake hose. Remove lock and guide pin bolt. Remove piston ring, boot, piston assembly and seal. Remove snap ring and self adjuster assembly. Remove spindle lever and parking lever assembly. Remove caliper body. See Fig 2 .

Fig 1: Exploded View of Rear Disc Brake Caliper Assembly (Starion)

Courtesy of CHRYSLER MOTORS.

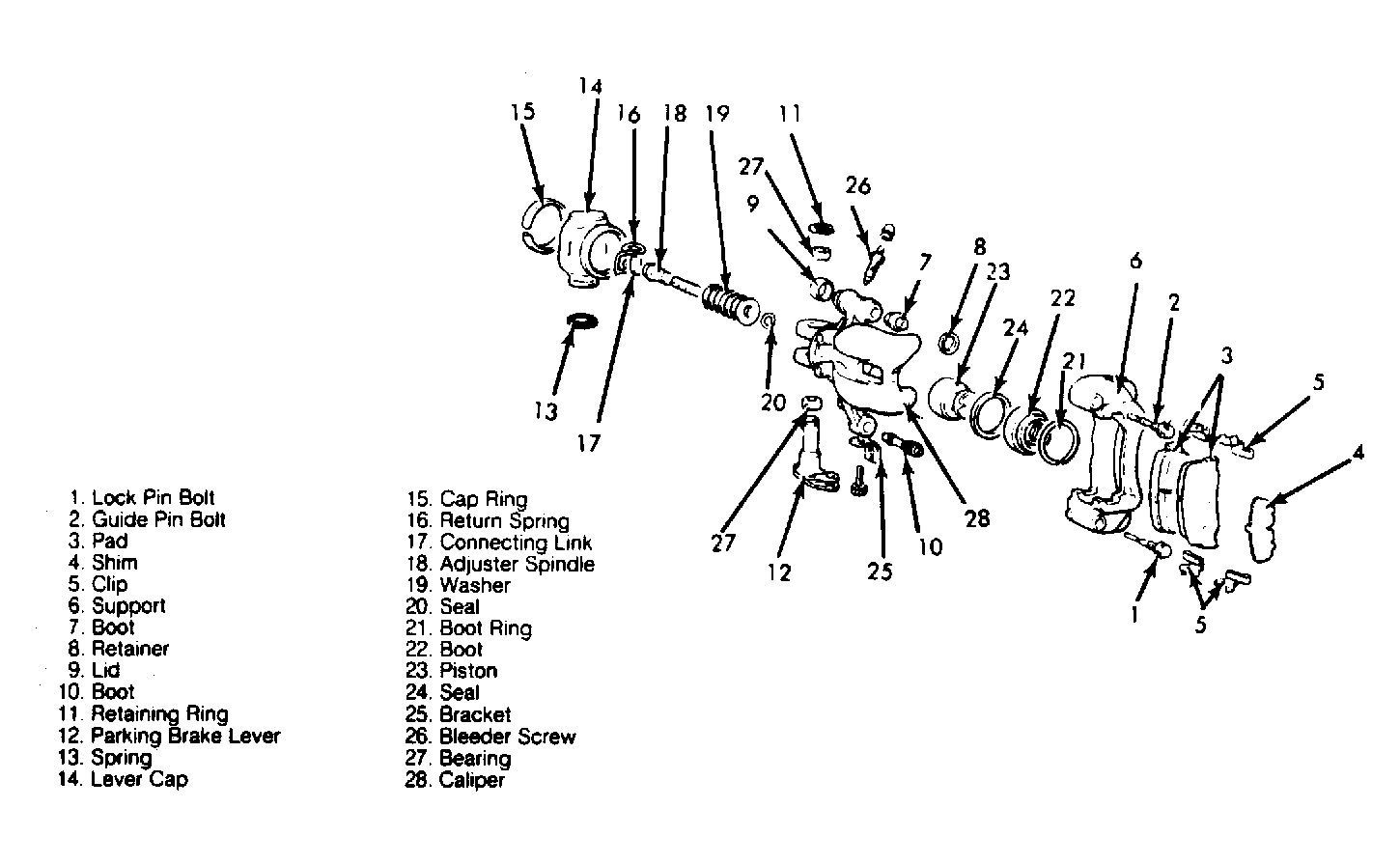

Fig 2: Exploded View of Rear Disc Brake Caliper Assembly (Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
