Instrument Cluster: Sigma

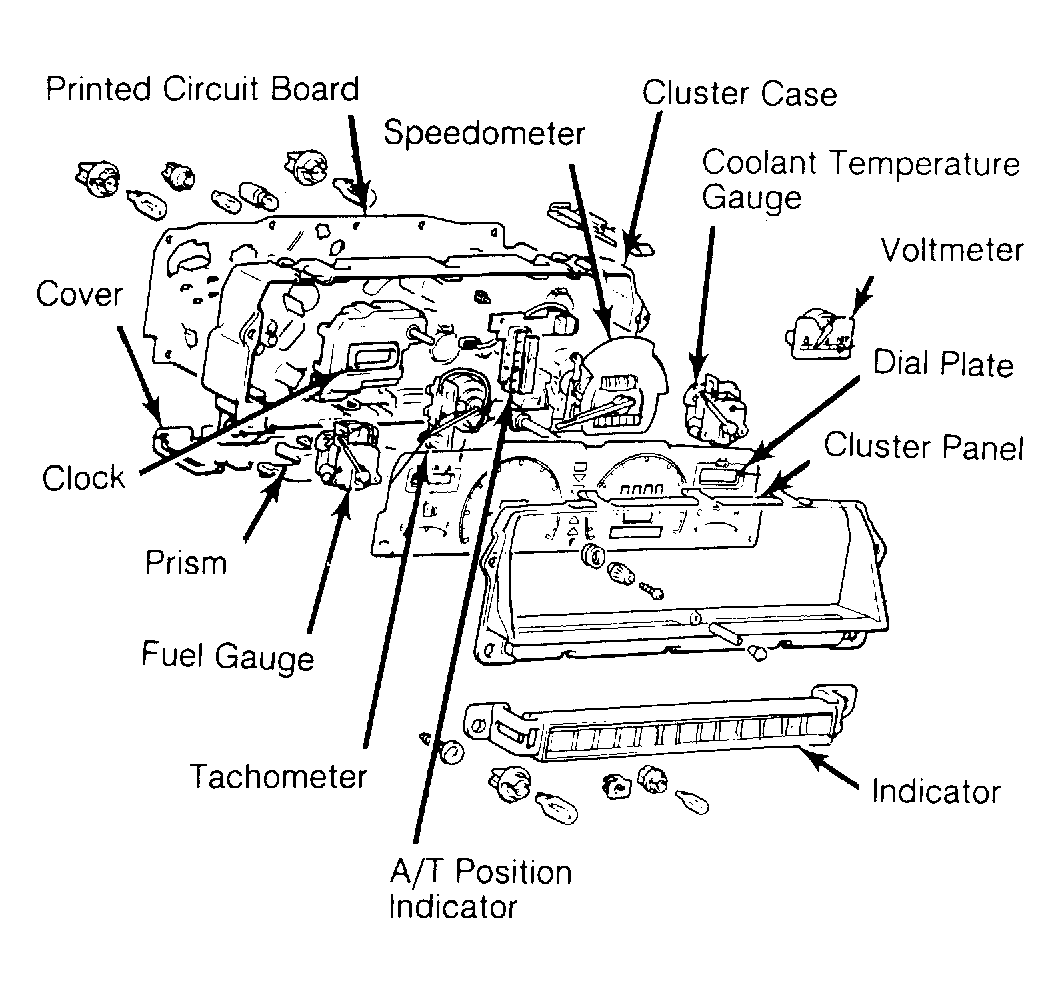

- Disconnect negative battery cable. Pry out meter hood plugs and remove meter installation screws. Remove the meter hood and meter case mounting screws. Pull meter case outward and separate all electrical connections. SeeFig 1
.
- Separate the speedometer cable at the transmission and pull the opposite end toward interior. Locate the adapter at the upper end of cable and disengage by turning left or right. Carefully remove meter case from instrument panel. To install, reverse removal procedure.
Courtesy of CHRYSLER MOTORS.
