Disassembly, Inspection & Reassembly

Disassemble in the numbered sequence. See Fig 1 . To reassemble, reverse numbered sequence. Check clearance between pinion gear washer and planetary gear housing. See PLANETARY GEAR SPECIFICATIONS  table. Ensure sun gear is installed in proper direction.

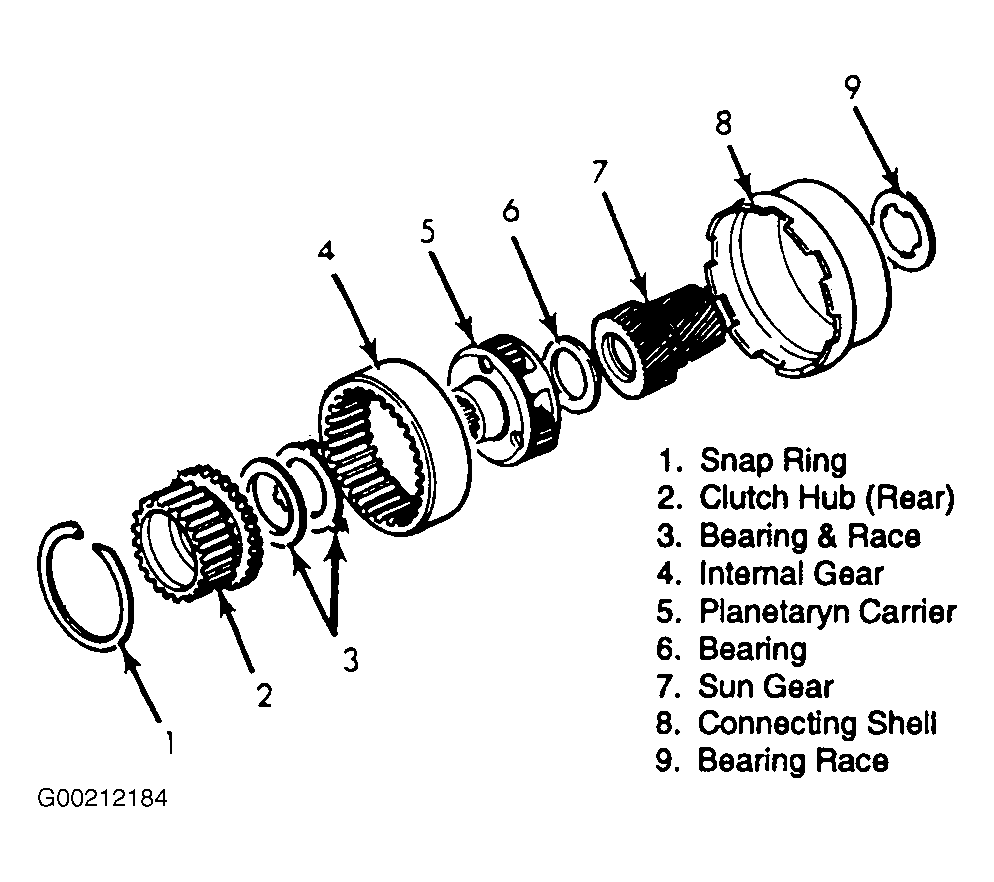

Fig 1: Exploded View Of Front Planetary Gear
G00212184Courtesy of MAZDA MOTORS CORP.
