Direct Clutch: Reassembly

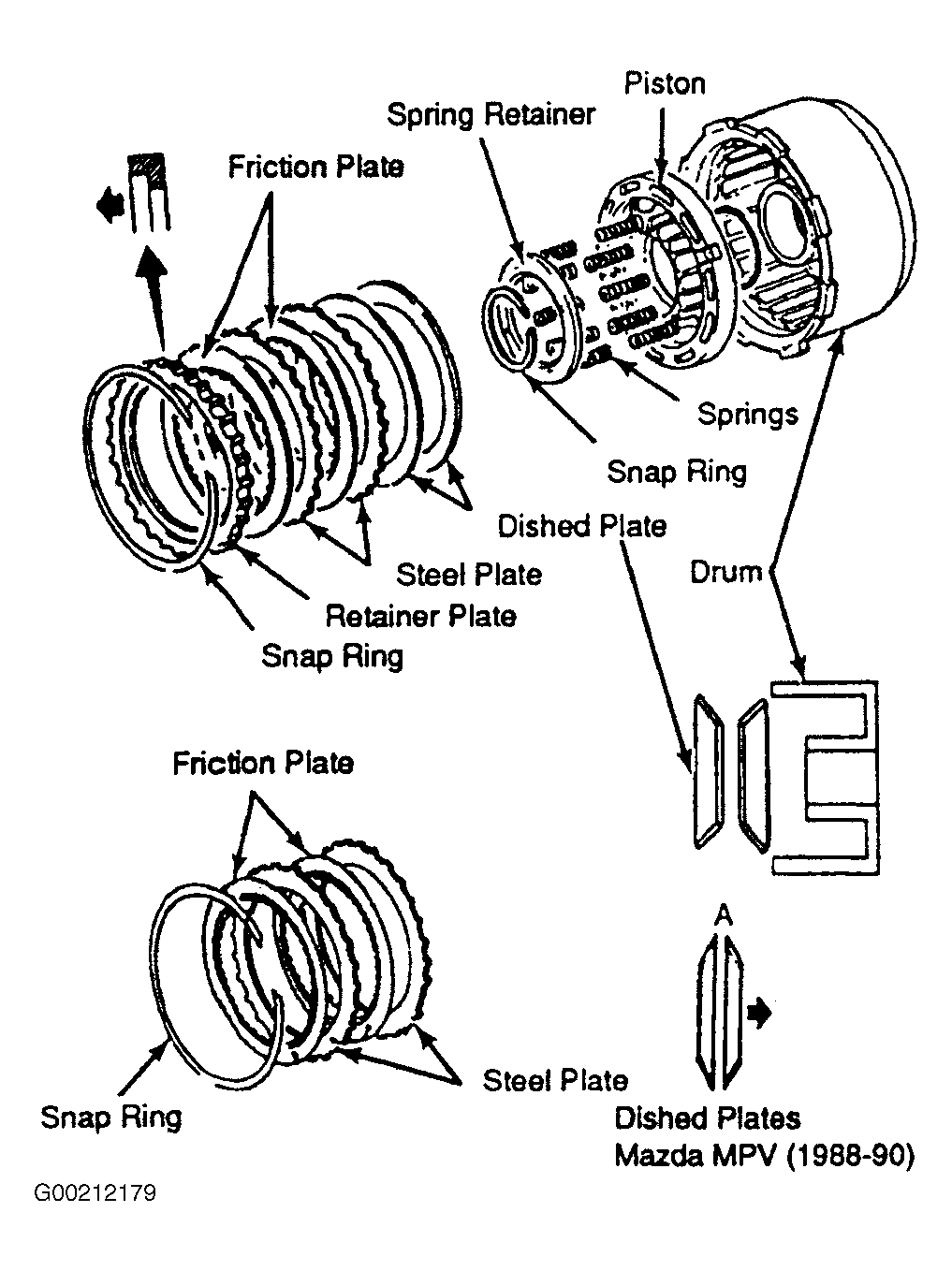

To reassemble, reverse disassembly procedure. Align toothless portion of steel plate with lubrication hole on side of drum. Ensure dished plates are installed properly. See Figure . Some models use a one-way clutch in the direct clutch assembly. In these units, after installing the clutches and snap ring, install retaining plate, one-way clutch outer race, one-way clutch, side plate and snap ring. See Figure and Fig 1 . Check operation of clutch by applying air pressure after reassembly. See Figure .
